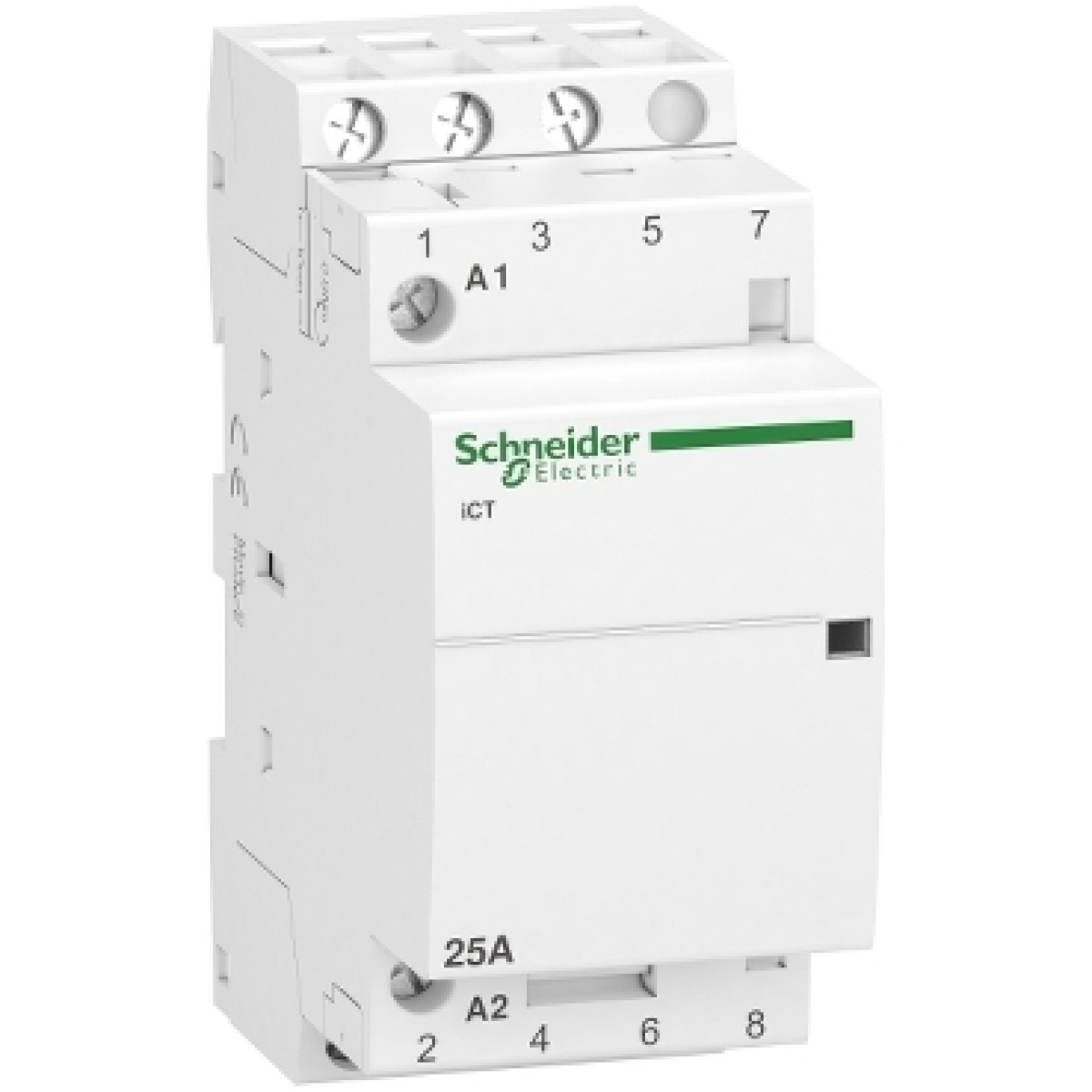

iCT - 3 pólos - 3 NA - 25 A - 220..240 V CA
Management and Measuring Devices
iCT - 3 pólos - 3 NA - 25 A - 220..240 V CA
Manufacturer Ref:
A9C20833
Nortécnica Ref:
51A9C20833
EAN:
3606480088582
Description
Technical Information
Attributes
Built-in depth
43.5
Rated operating voltage
400
400
Width in number of modular spacings
2
Max. incandescent lamp load
5700
Max. load fluorescent lamp
2400
Max. load fluorescent lamp Duo circuit
4800
Max. load fluorescent lamp parallel compensated
2400
Slider for hand switch
No
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP20
Rated operation current
25
Additional equipment possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
3
Rated excitation voltage
220
240
Hum-free
No
Utilization category according to EN IEC 60947-4-1
-
With daynight function
No
Brands
Schneider
Technical Sheet
