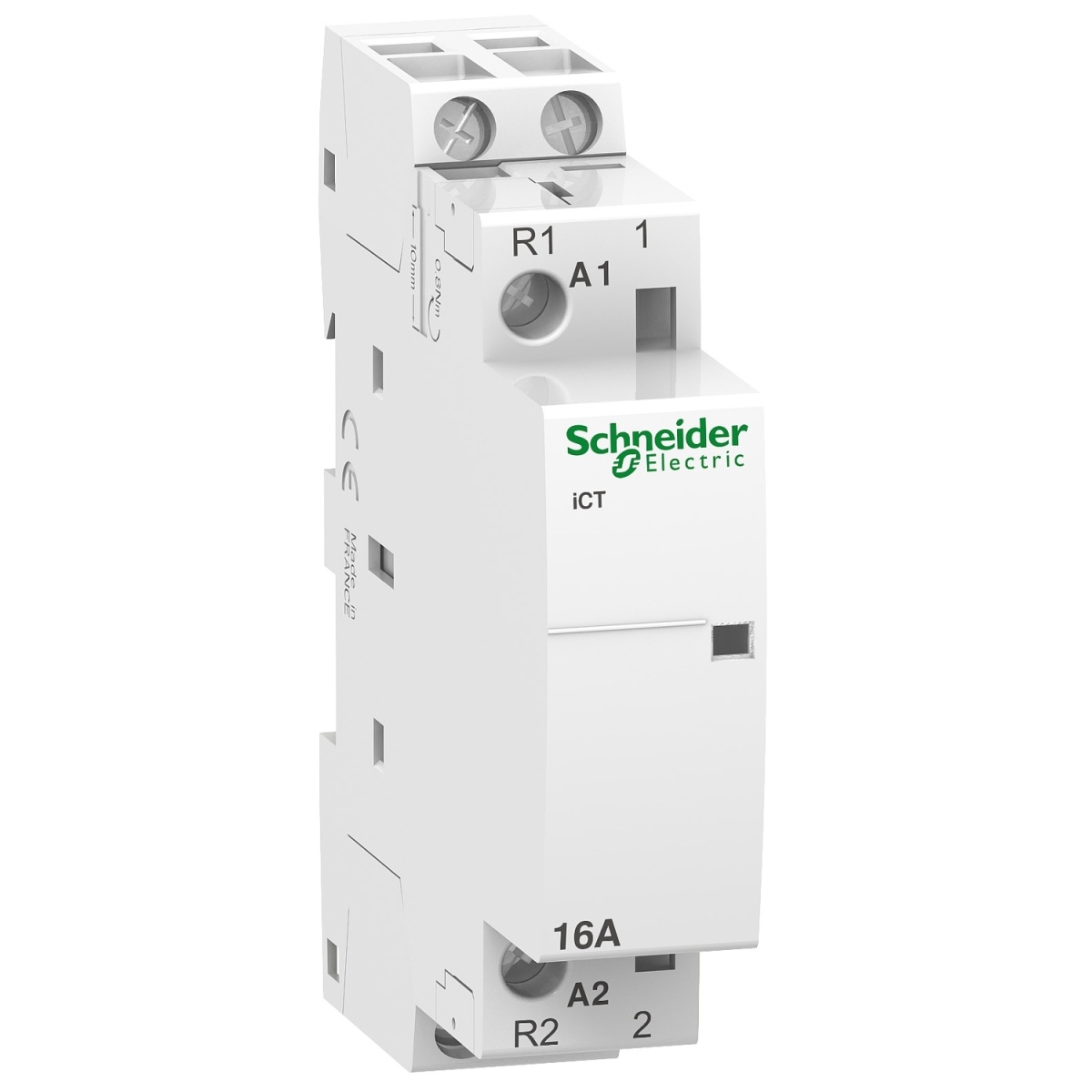

iCT 16A 1NA 1NF 12V 50Hz
Management and Measuring Devices
iCT 16A 1NA 1NF 12V 50Hz
Manufacturer Ref:
A9C22015
Nortécnica Ref:
51A9C22015
EAN:
3606480096921
Description
Technical Information
Attributes
Built-in depth
43.5
Rated operating voltage
250
250
Width in number of modular spacings
1
Max. incandescent lamp load
2000
Max. load fluorescent lamp
850
Max. load fluorescent lamp Duo circuit
1500
Max. load fluorescent lamp parallel compensated
800
Slider for hand switch
No
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
EF005474
IP20
Rated operation current
16
Additional equipment possible
Yes
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Rated excitation voltage
12
12
Hum-free
No
Utilization category according to EN IEC 60947-4-1
-
With daynight function
No
Brands
Schneider
Technical Sheet
