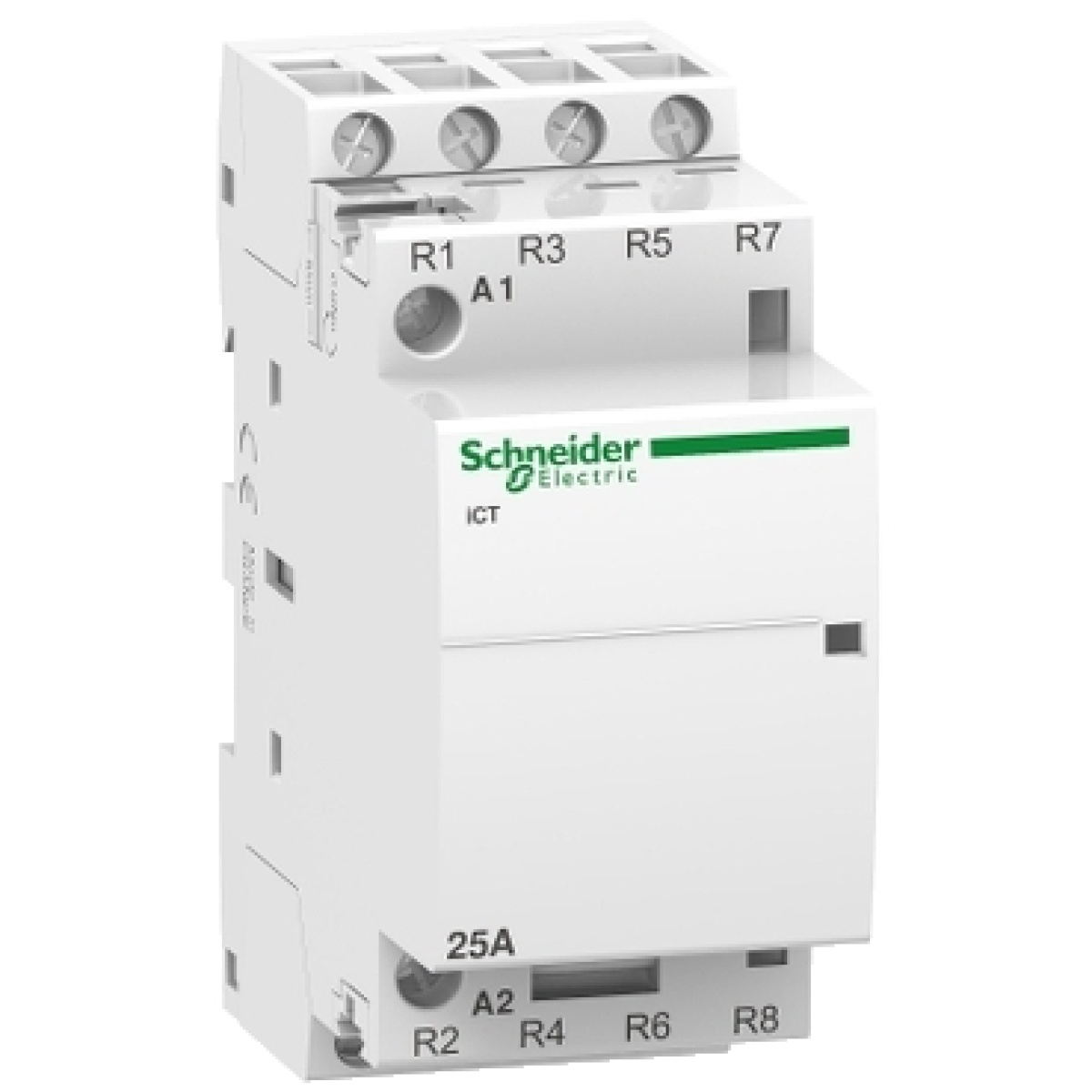

iCT 25A 4NF 24 V 50Hz
Management and Measuring Devices
iCT 25A 4NF 24 V 50Hz
Manufacturer Ref:
A9C20137
Nortécnica Ref:
51A9C20137
EAN:
3606480374791
Description
Technical Information
Attributes
Built-in depth
43.5
Rated operating voltage
400
400
Width in number of modular spacings
2
Max. incandescent lamp load
2850
Max. load fluorescent lamp
1200
Max. load fluorescent lamp Duo circuit
2400
Max. load fluorescent lamp parallel compensated
1200
Slider for hand switch
No
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP20
Rated operation current
25
Additional equipment possible
Yes
Number of contacts as normally closed contact
4
Number of contacts as normally open contact
0
Rated excitation voltage
24
24
Hum-free
No
Utilization category according to EN IEC 60947-4-1
-
With daynight function
No
Brands
Schneider
Technical Sheet
