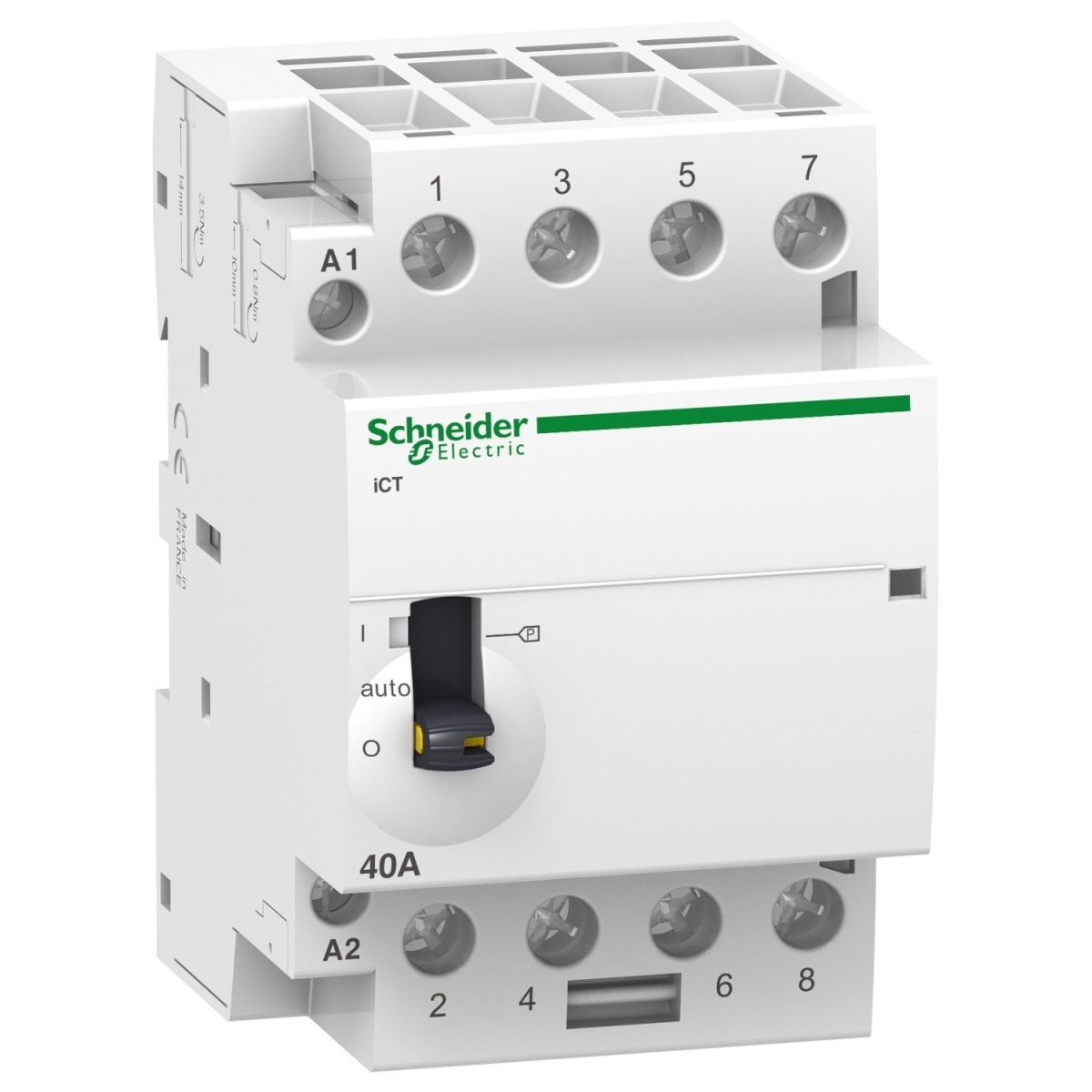

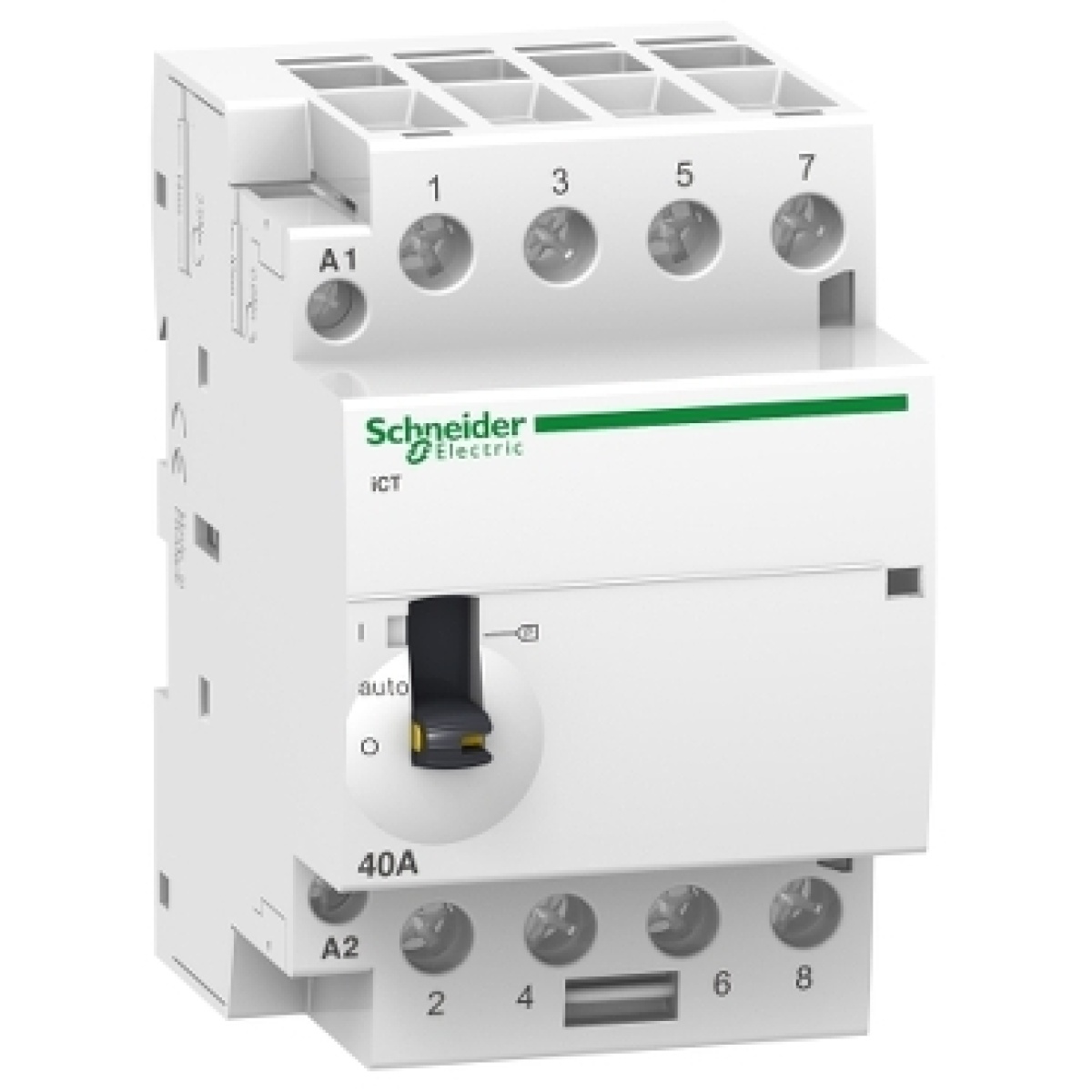

iCT 40 A 4NA 220240 V 50Hz
Management and Measuring Devices
iCT 40 A 4NA 220240 V 50Hz
Manufacturer Ref:
A9C21844
Nortécnica Ref:
51A9C21844
EAN:
3606480096877
Description
Technical Information
Attributes
Built-in depth
43.5
Rated operating voltage
400
400
Width in number of modular spacings
3
Max. incandescent lamp load
15750
Max. load fluorescent lamp
7200
Max. load fluorescent lamp Duo circuit
11400
Max. load fluorescent lamp parallel compensated
7200
Slider for hand switch
Yes
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
EF005474
IP20
Rated operation current
40
Additional equipment possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
4
Rated excitation voltage
220
240
Hum-free
No
Utilization category according to EN IEC 60947-4-1
-
With daynight function
No
Brands
Schneider
Technical Sheet
