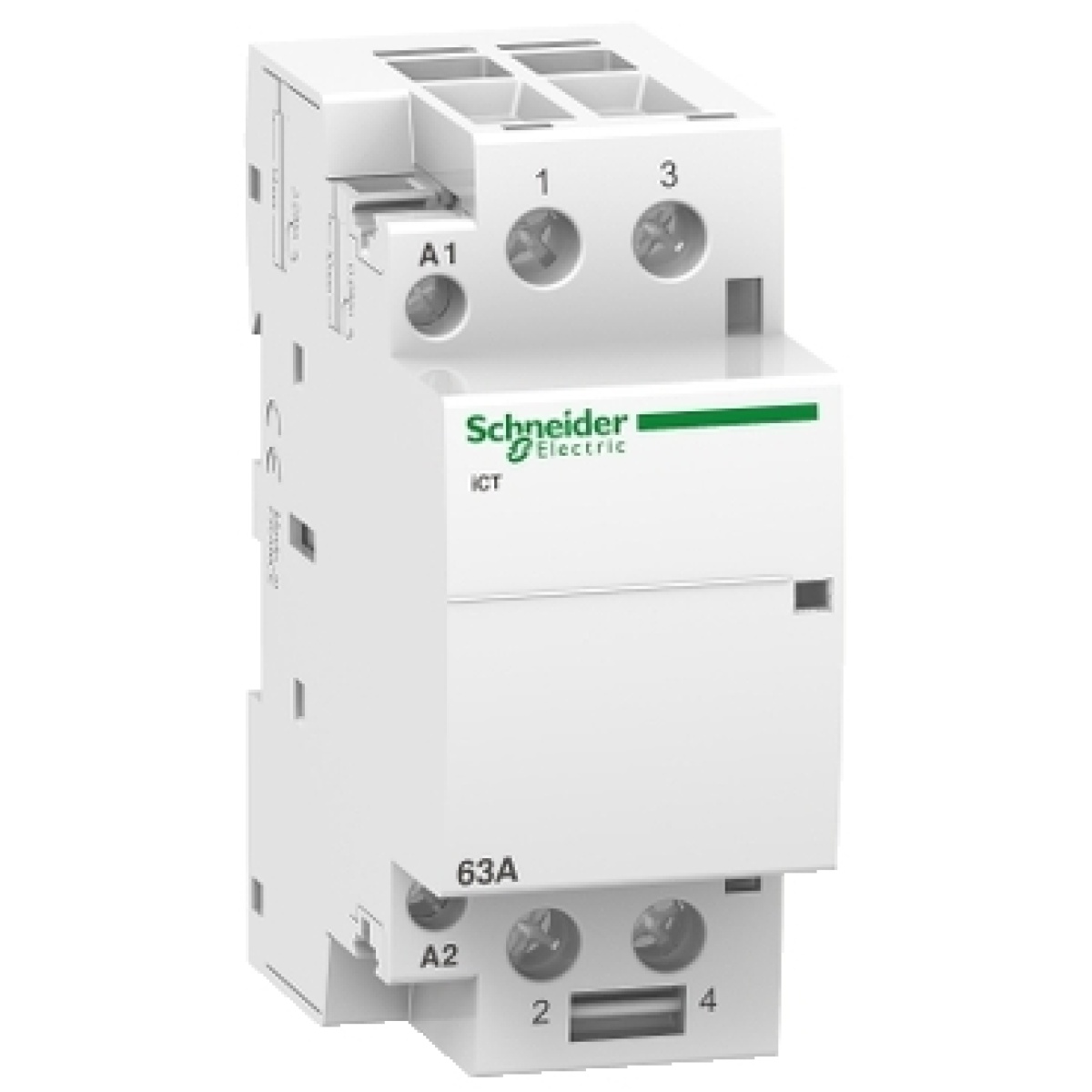

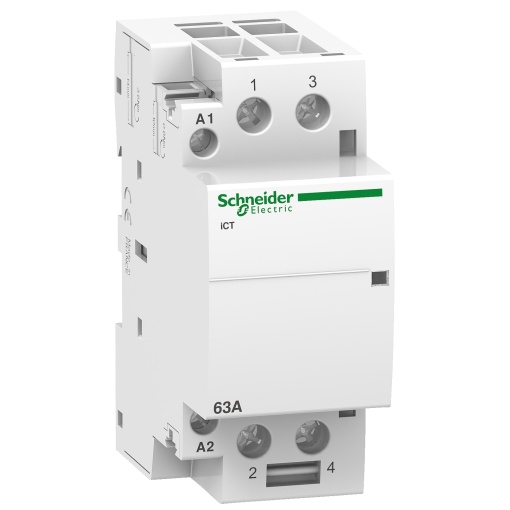

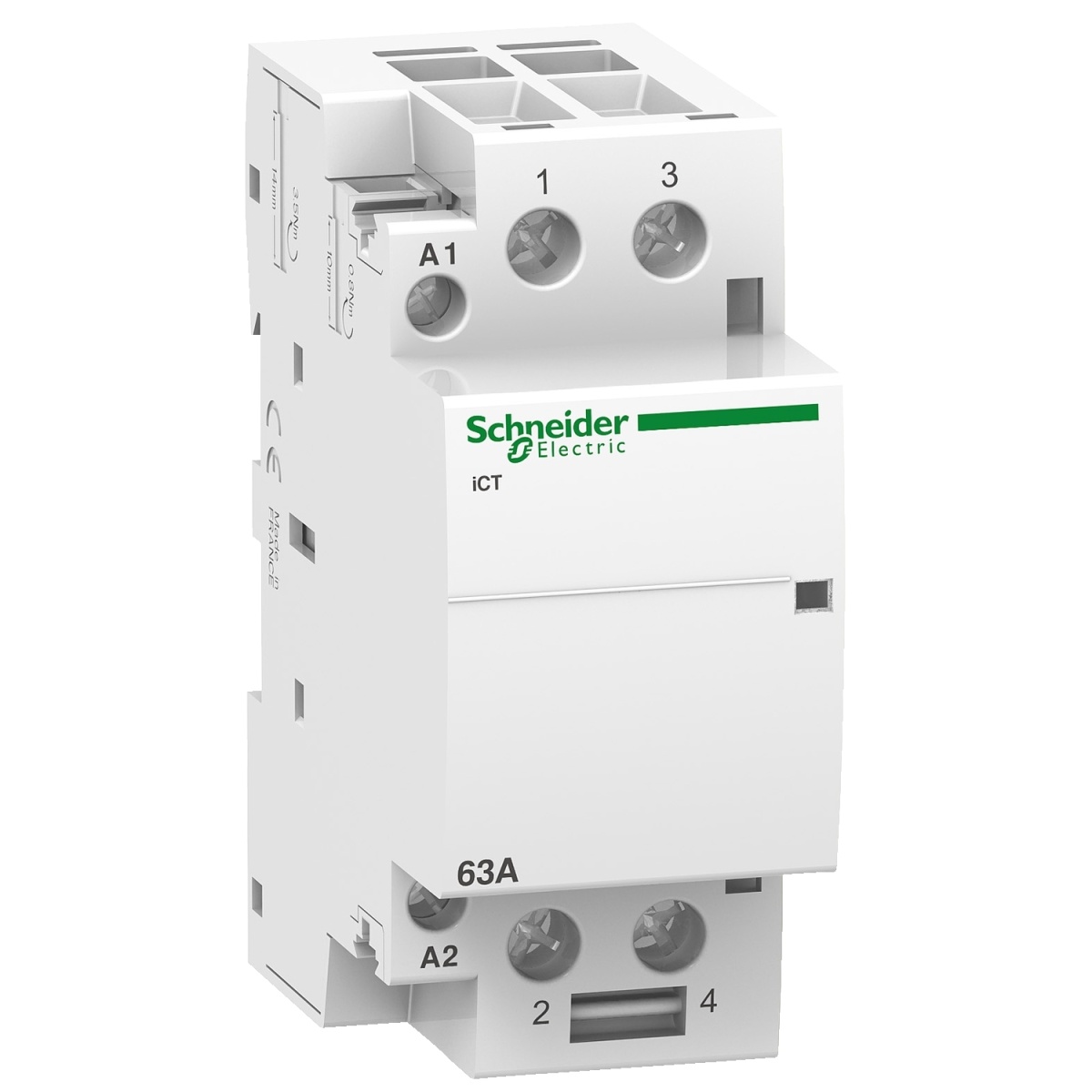

iCT 63A 2NA 24 V 50Hz
Management and Measuring Devices
iCT 63A 2NA 24 V 50Hz
Manufacturer Ref:
A9C20162
Nortécnica Ref:
EAN:
3606480374807
Description
Technical Information
Attributes
Built-in depth
43.5
Rated operating voltage
250
250
Width in number of modular spacings
2
Max. incandescent lamp load
7500
Max. load fluorescent lamp
3850
Max. load fluorescent lamp Duo circuit
5900
Max. load fluorescent lamp parallel compensated
3500
Slider for hand switch
No
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP20
Rated operation current
63
Additional equipment possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Rated excitation voltage
24
24
Hum-free
No
Utilization category according to EN IEC 60947-4-1
-
With daynight function
No
Brands
Schneider
Technical Sheet
