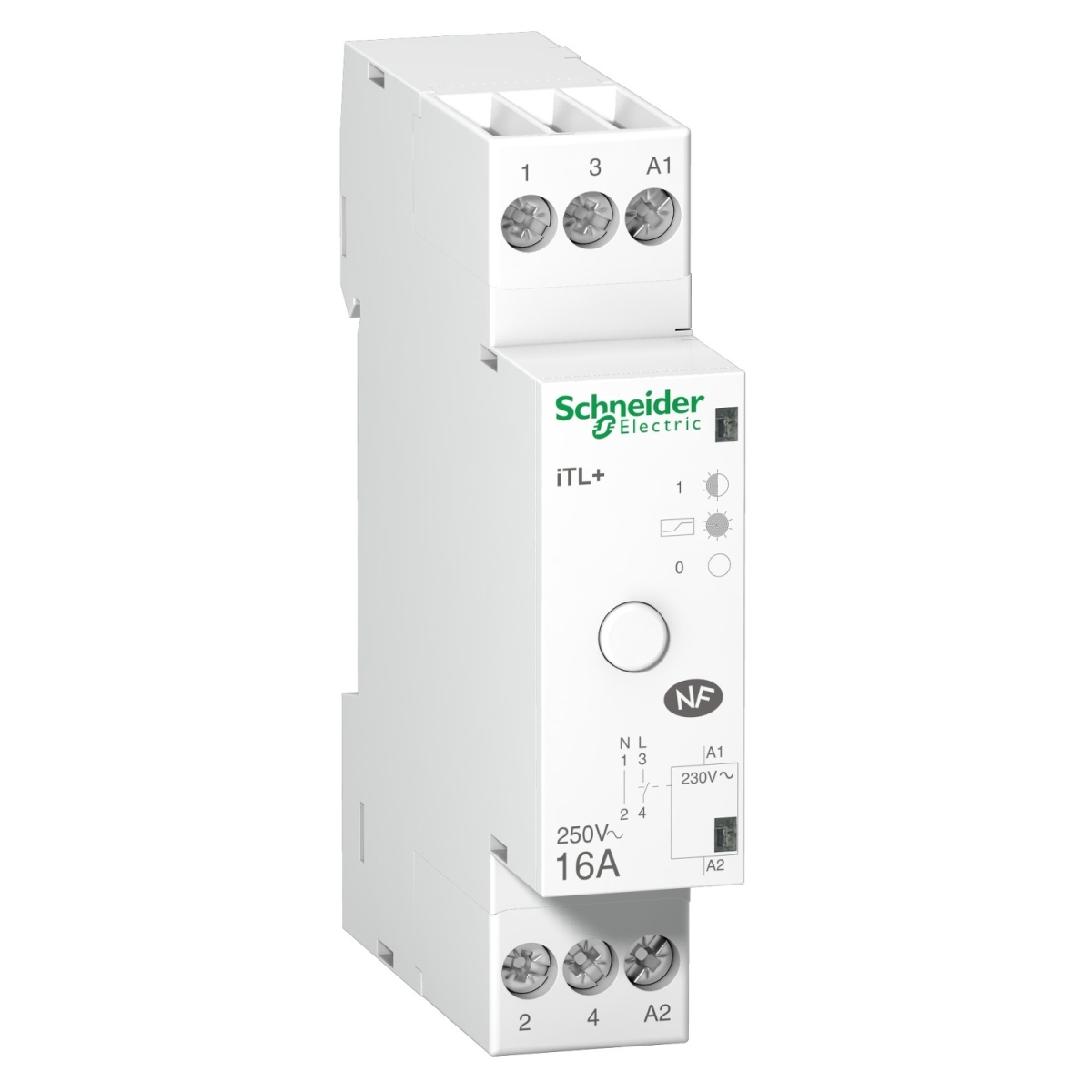

impulse relay iTL - 1PN - 1NO - 16A - coil 230 VAC 50Hz
Management and Measuring Devices
impulse relay iTL - 1PN - 1NO - 16A - coil 230 VAC 50Hz
Manufacturer Ref:
A9C15032
Nortécnica Ref:
51A9C15032
EAN:
3606480376979
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Mechanical switch
Built-in depth
43.5
Width in number of modular spacings
1
Control voltage 1
230
230
Control voltage 2
-
-
Type of control voltage 1
AC
Type of control voltage 2
-
Frequency control voltage 1
50
50
Frequency control voltage 2
-
-
Suitable for manual operation
Yes
Voltage type supply voltage
AC
Supply voltage
250
250
Max. switching current cos phi 0.6
2900
Max. incandescent lamp load
2900
Max. load fluorescent lamp
2900
Max. load fluorescent lamp Duo circuit
-
Max. load fluorescent lamp parallel compensated
2900
Rated switch current
16
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Brands
Schneider
