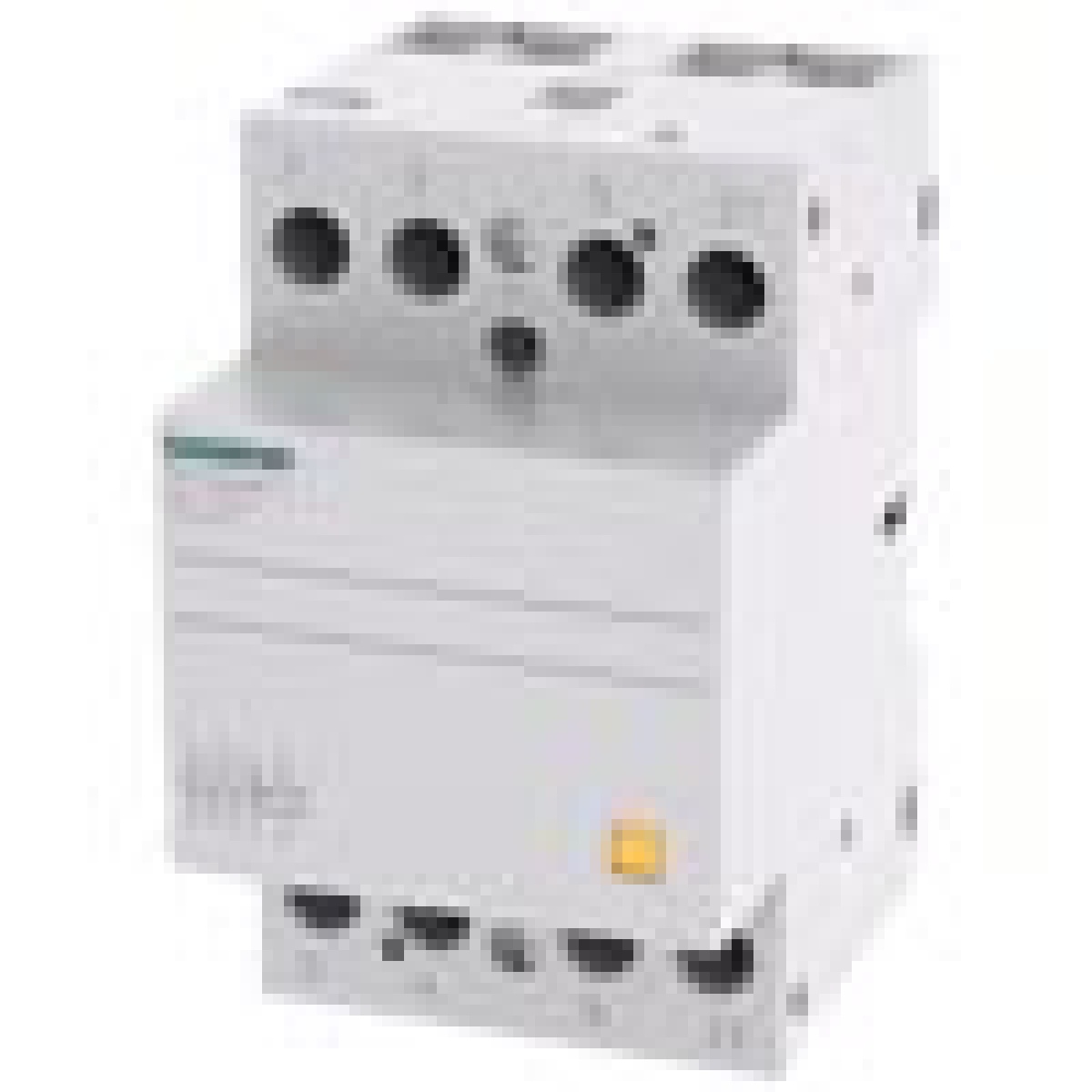

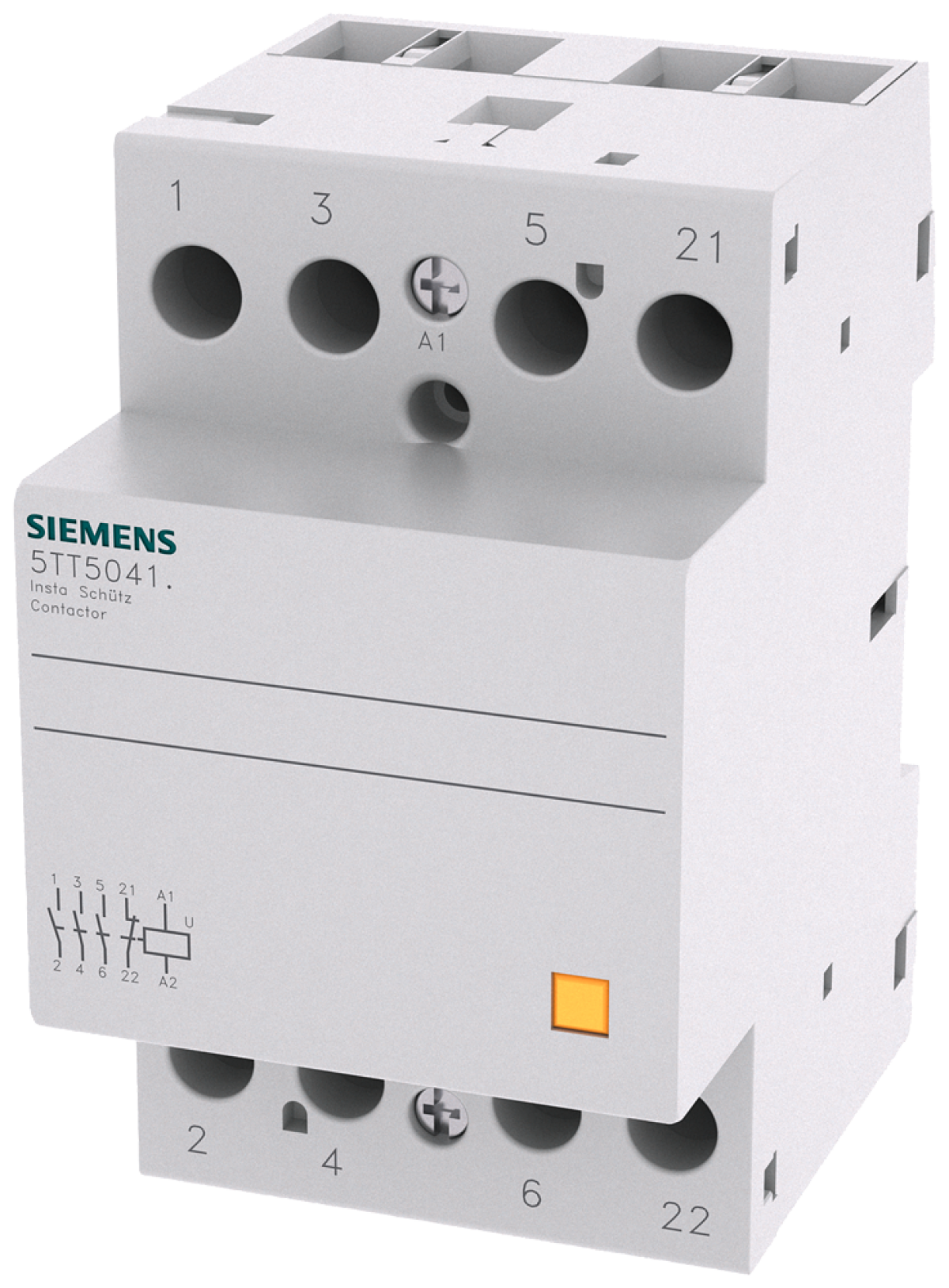

Insta contactor with 3 NO contacts and 1 NC contact for 230 V AC 400 V 40 A
Management and Measuring Devices
Insta contactor with 3 NO contacts and 1 NC contact for 230 V AC 400 V 40 A
Manufacturer Ref:
5TT50410
Nortécnica Ref:
EAN:
4001869435206
Description
Technical Information
Attributes
Built-in depth
64
Rated operating voltage
400
Width in number of modular spacings
3
EF004723
-
Max. incandescent lamp load
-
Max. load fluorescent lamp
-
Max. load fluorescent lamp Duo circuit
-
Max. load fluorescent lamp parallel compensated
-
Slider for hand switch
No
Voltage type excitation voltage
ACDC
Voltage type operating voltage
AC
Degree of protection IP
IP20
Rated operation current
40
Additional equipment possible
Yes
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
3
Rated excitation voltage
230
Hum-free
No
With daynight function
No
Brands
Siemens AG
Technical Sheet
