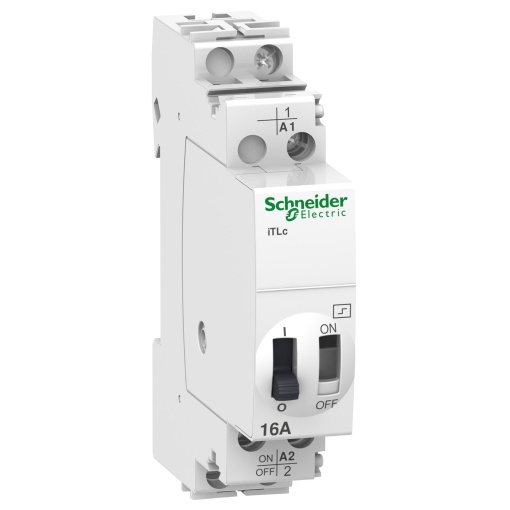

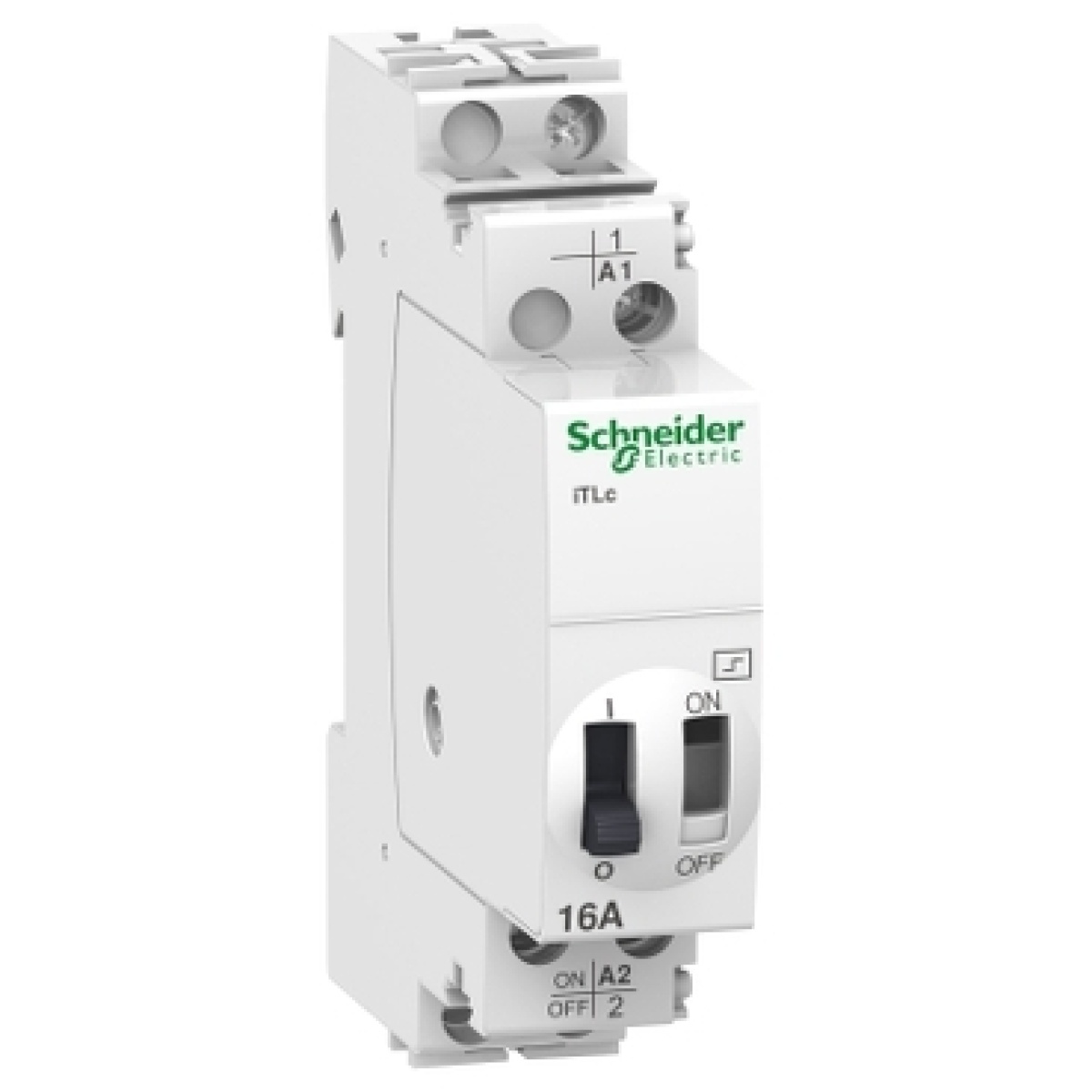

iTLc - 1P - 1NA - 16A - coil 48 VAC 5060Hz-
Management and Measuring Devices
iTLc - 1P - 1NA - 16A - coil 48 VAC 5060Hz-
Manufacturer Ref:
A9C33211
Nortécnica Ref:
EAN:
3606480092084
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Mechanical for centralized control
Built-in depth
43.5
Width in number of modular spacings
1
Control voltage 1
48
48
Control voltage 2
-
-
Type of control voltage 1
AC
Type of control voltage 2
-
Frequency control voltage 1
50
60
Frequency control voltage 2
-
-
Suitable for manual operation
Yes
Voltage type supply voltage
AC
Supply voltage
24
250
Max. switching current cos phi 0.6
16
Max. incandescent lamp load
1600
Max. load fluorescent lamp
1300
Max. load fluorescent lamp Duo circuit
2000
Max. load fluorescent lamp parallel compensated
900
Rated switch current
16
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Brands
Schneider
