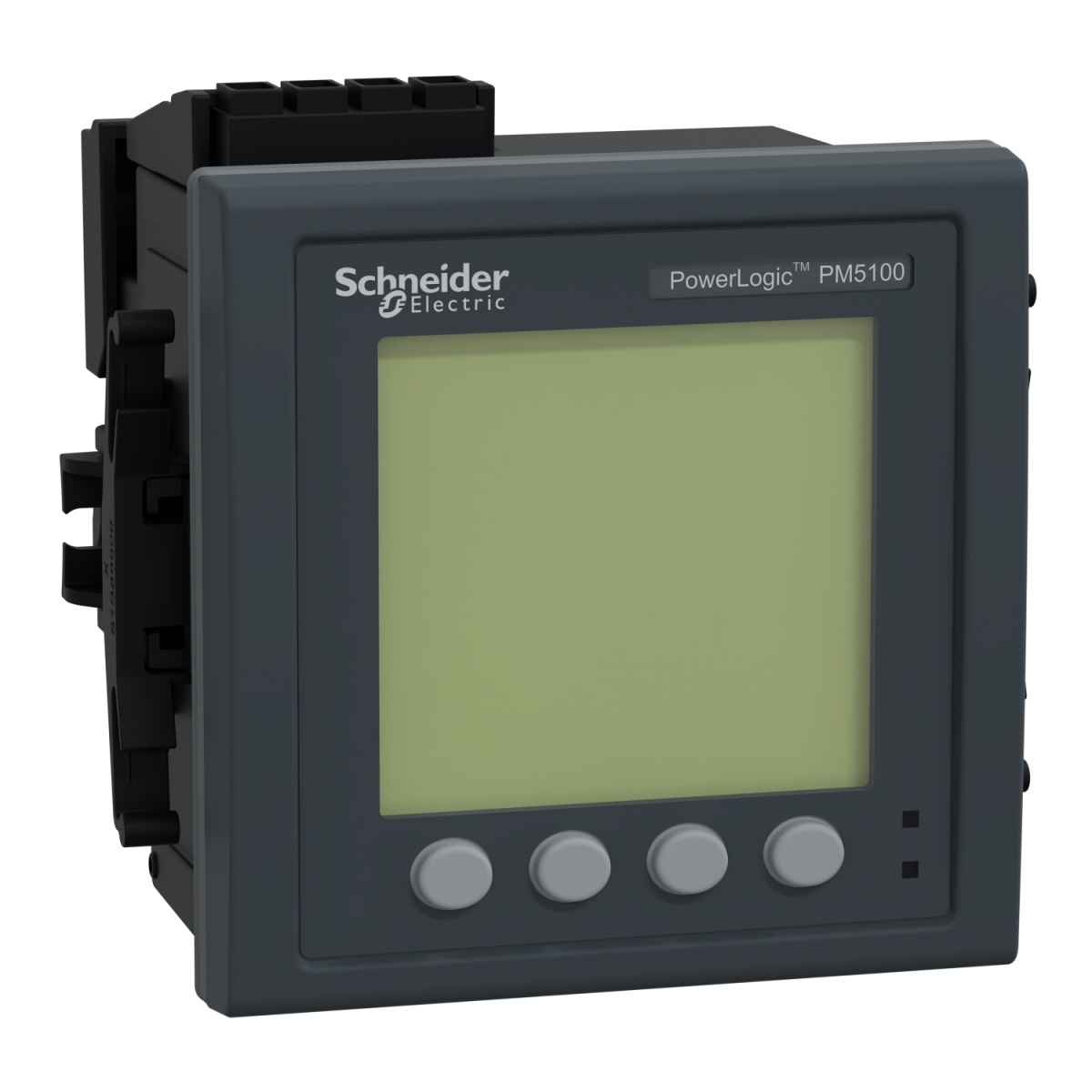

PM5110 Central de medida, modbus, até 15 H, 1DO 33 alarmes
Management and Measuring Devices
PM5110 Central de medida, modbus, até 15 H, 1DO 33 alarmes
Manufacturer Ref:
METSEPM5110
Nortécnica Ref:
51METSEPM5110
EAN:
3606480613982
Description
Technical Information
Attributes
Mounting method
Front mounting
Width
112
Model
Measurement transformer
Height
101.2
Depth
89
Measured value memory
No
Display
LCD
Max. current Imax
20
Harmonics measurement
Yes
Power factor
Yes
Apparent power
Yes
Step angle cos phi
Yes
Number of digital inputs
0
Number of digital outputs
1
Number of analogue inputs
0
Number of analogue outputs
0
Voltage type supply voltage
AC/DC
Supporting protocol for PROFIBUS
No
Supporting protocol for Modbus
Yes
Supporting protocol for other bus systems
Yes
Degree of protection IP, front side
Other
Number of Ethernet connections
0
Ampere meter
Yes
Reactive power meter
Yes
With rotational speed meter
No
Frequency meter
Yes
Pulse counter
No
Voltmeter
Yes
Effective power measurement device
Yes
With communication interface RS-485
Yes
Connectable conductor cross section solid-core
0.82
3.31
Supporting protocol for PROFINET IO
No
Supply voltage AC 50 Hz
100
415
Supply voltage AC 60 Hz
100
415
Supply voltage DC
125
250
Suitable for RJ plug
No
Calibrated
No
Pulse output
Optical
Pole type
Three conductor/four conductor
Measurement type load profile
Yes
Nominal current In
5
Measuring range for frequency
47
63
Display resolution horizontal
128
Display resolution vertical
128
Accuracy class active energy according to IEC 62053-22
0.5S
Accuracy class reactive energy according to IEC 62053-23
Other
Sampling frequency
6400
Number of voltage measurement inputs
4
Number of current measurement inputs
6
Supporting protocol for IEC 61850 Ethernet
No
Supporting protocol for OPC UA PubSub
No
With audit logging audit log
No
With firmware signature
No
With logging of security events security event log
Yes
With Role Based Access Control RBAC
No
Web server with HTTPS transfer protocol
No
With communication interface KNX
No
Wth communication interface M-Bus
No
Remote display
No
Brands
Schneider
