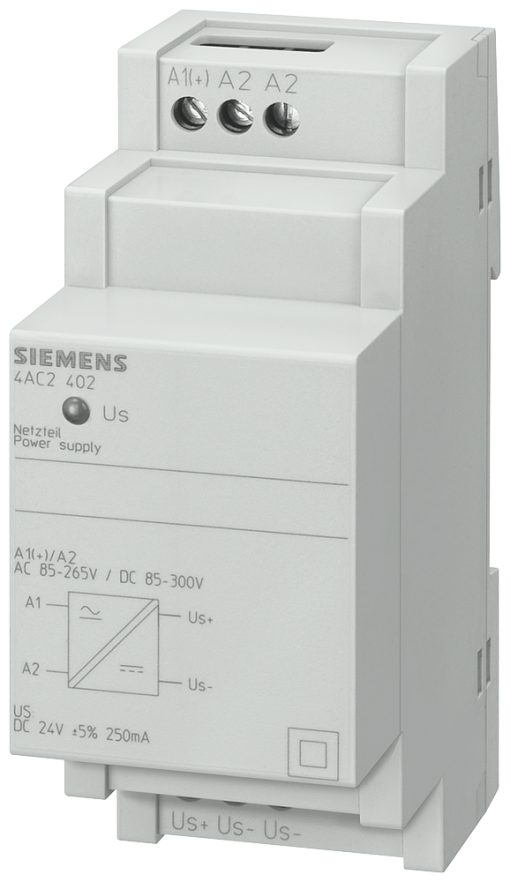

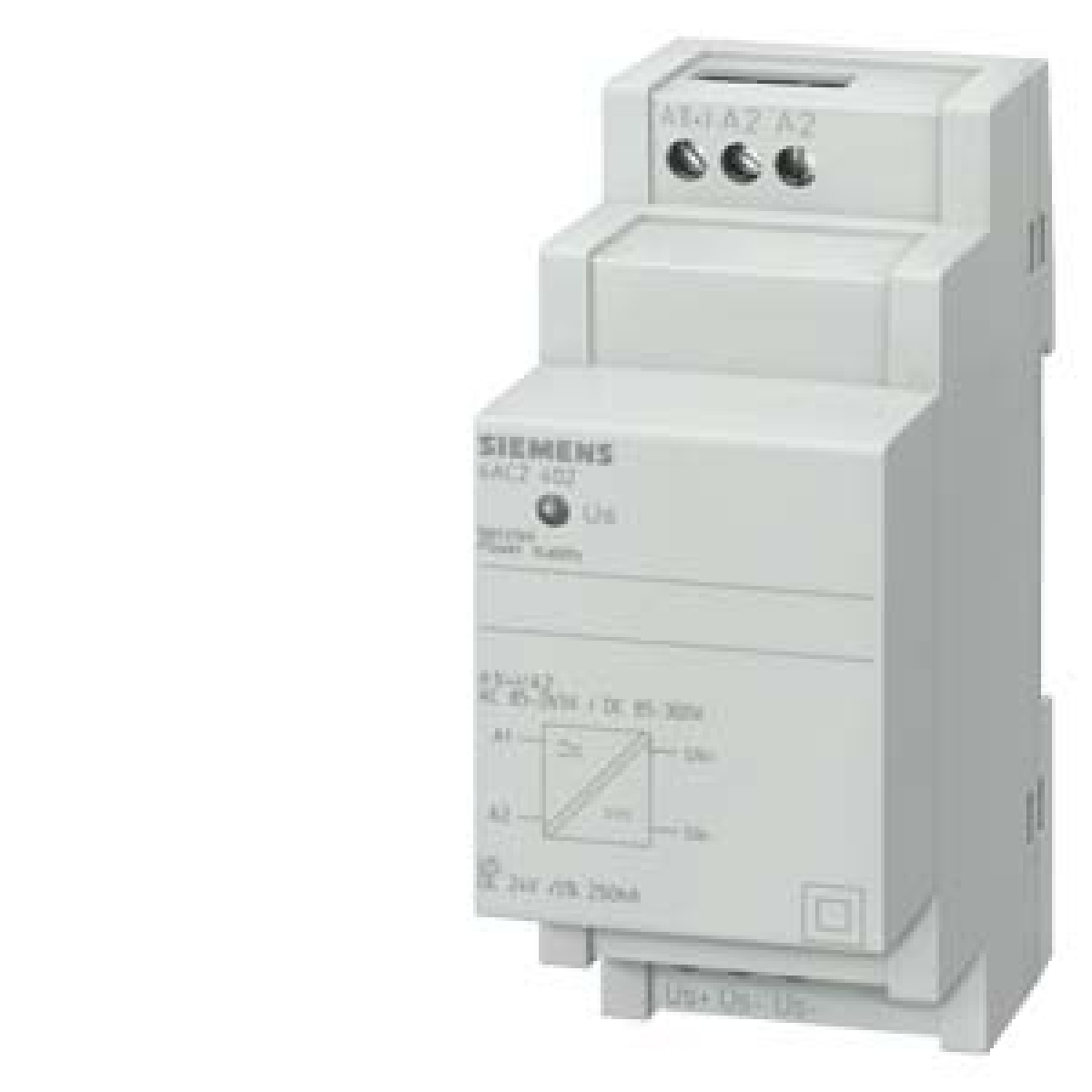

Power supply unit for permanent load primary 85265 V AC 85300 V DC seco
Management and Measuring Devices
Power supply unit for permanent load primary 85265 V AC 85300 V DC seco
Manufacturer Ref:
4AC2402
Nortécnica Ref:
EAN:
4001869370569
Description
Technical Information
Attributes

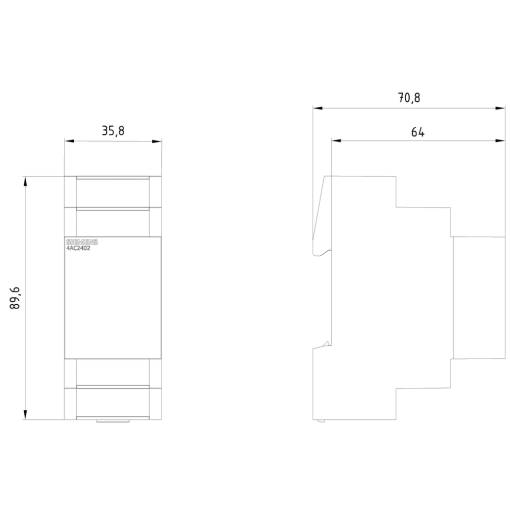

Width
36
Height
64
Type of transformer
Mains transformer
With onoff switch
No
Suitable for distribution board
Yes
Max. output current
0.35
Length
90
Max. output power
8.4
Width in number of modular spacings
2
Surface mounting
No
Short-circuit protected
Yes
Primary voltage
265
Secondary voltage 1
24
Secondary voltage 2
0
Secondary voltage 3
0
Secondary amperage 1
0.35
Secondary amperage 2
0
Secondary amperage 3
0
Temperature protection
Yes
Max. power loss
0
Flush-mounted installation
No
Brands
Siemens AG
