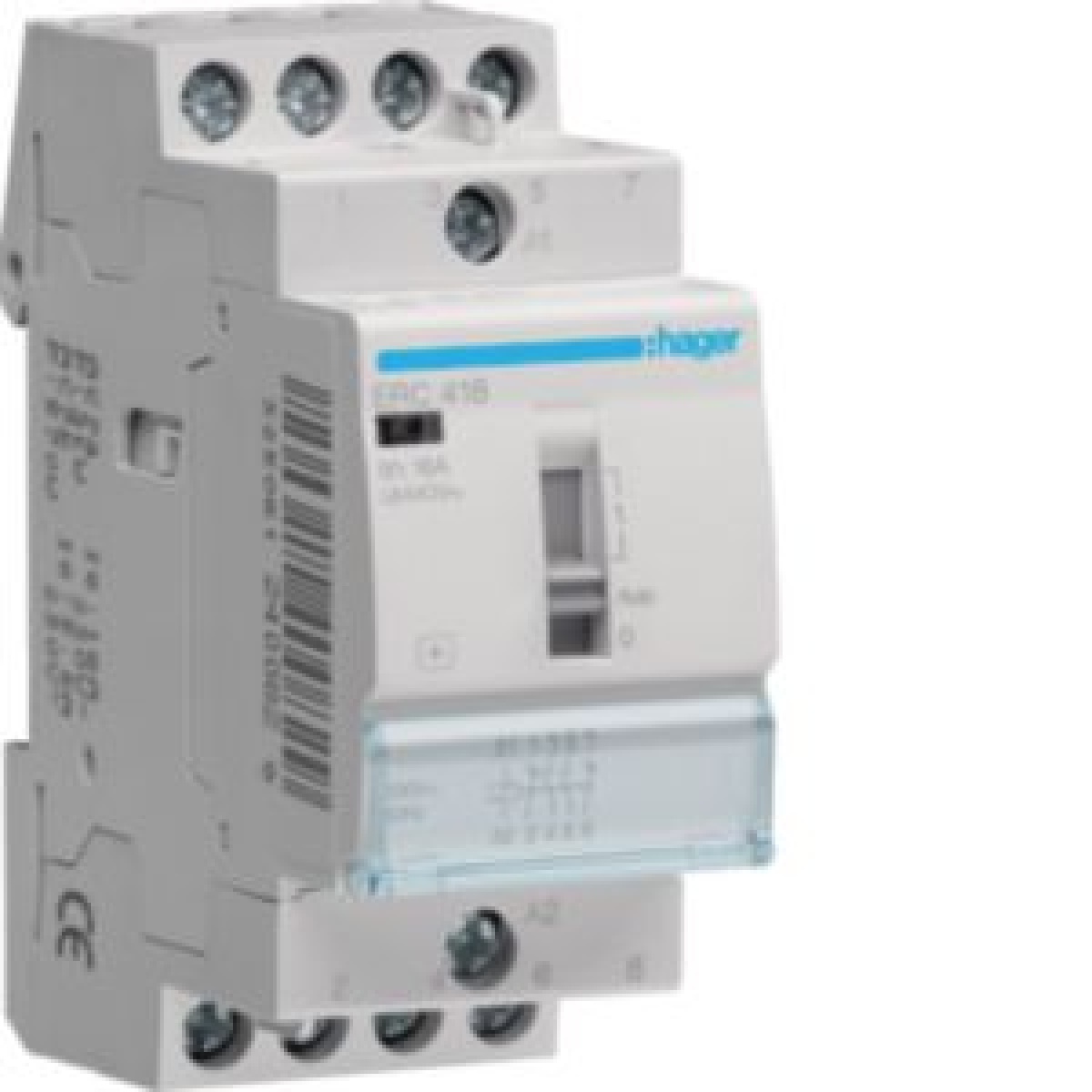

Relé comando 16A 2NA2NF 230V 2M
Management and Measuring Devices
Relé comando 16A 2NA2NF 230V 2M
Manufacturer Ref:
ERC418
Nortécnica Ref:
71ERC418
EAN:
3250612400829
Description
Technical Information
Attributes
Built-in depth
60
Rated operating voltage
400
400
Width in number of modular spacings
2
Max. incandescent lamp load
1100
Max. load fluorescent lamp
570
Max. load fluorescent lamp Duo circuit
1200
Max. load fluorescent lamp parallel compensated
490
Slider for hand switch
Yes
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP2X
Rated operation current
16
Additional equipment possible
Yes
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
2
Rated excitation voltage
230
230
Hum-free
No
Utilization category according to EN IEC 60947-4-1
AC7aAC7b
With daynight function
No
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
