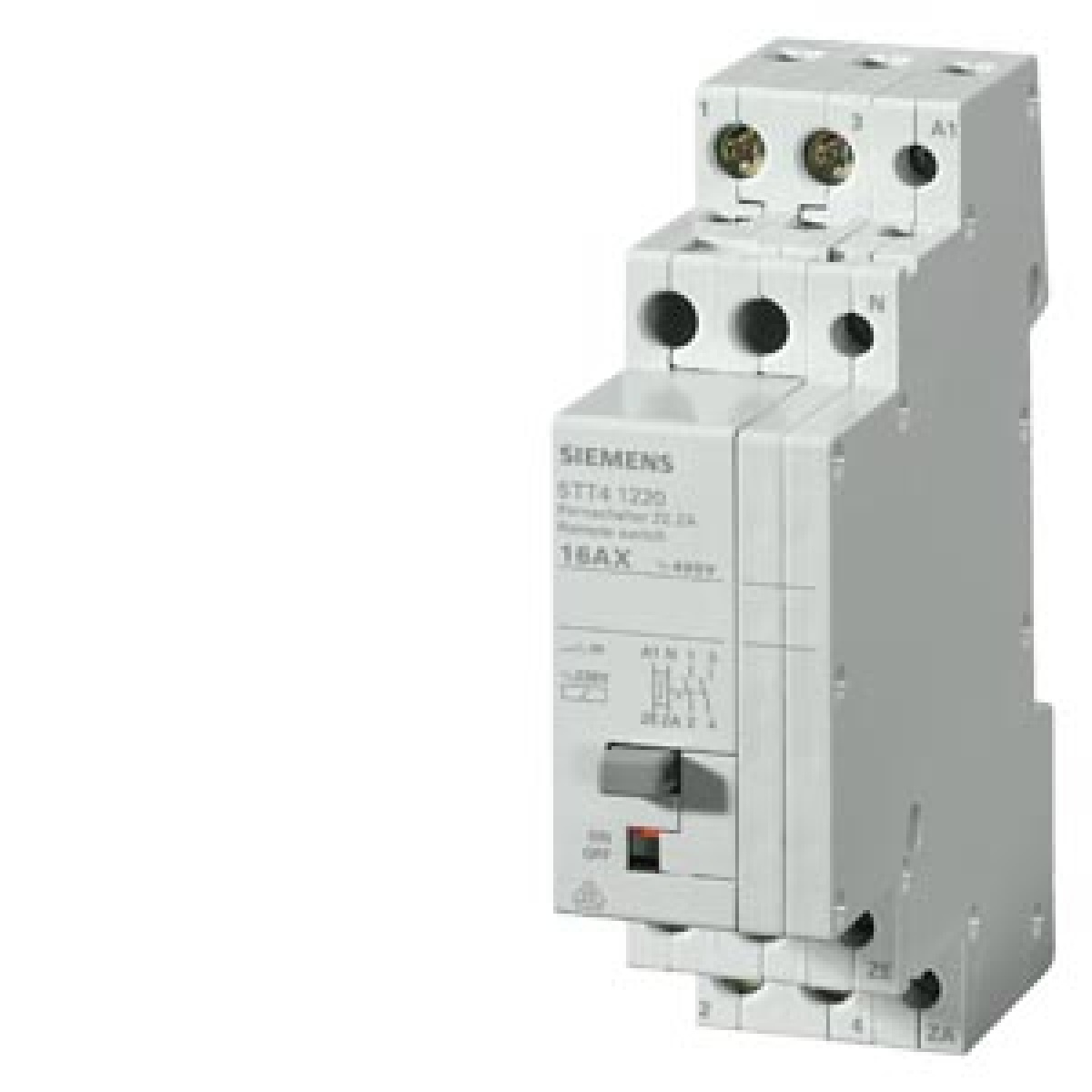

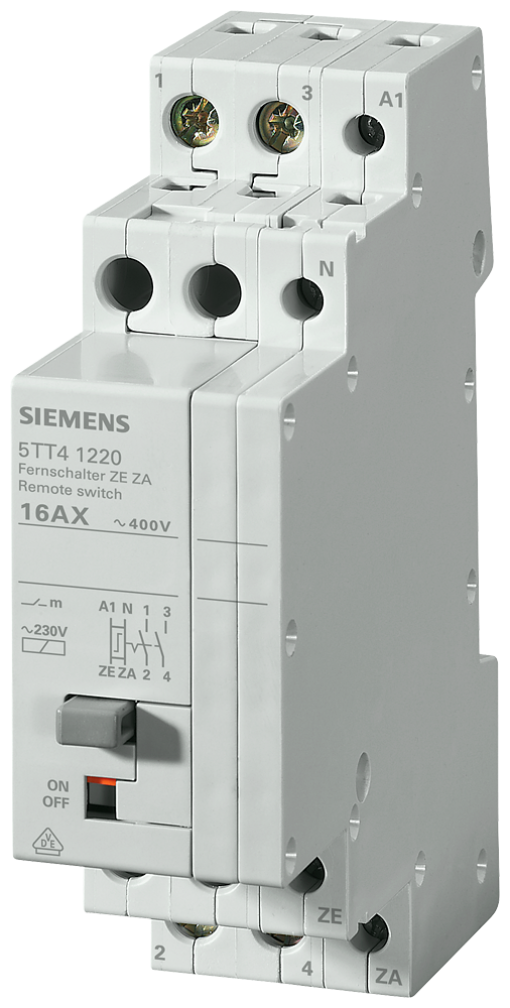

Remote control switch with 2 NO contacts with central onoff function conta
Management and Measuring Devices
Remote control switch with 2 NO contacts with central onoff function conta
Manufacturer Ref:
5TT41222
Nortécnica Ref:
EAN:
4001869402505
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Mechanical for centralized control
Built-in depth
70
Width in number of modular spacings
1.5
Control voltage 1
19.2
Control voltage 2
19.2
Type of control voltage 1
AC
Type of control voltage 2
AC
Frequency control voltage 1
50
Frequency control voltage 2
50
Suitable for manual operation
Yes
Voltage type supply voltage
AC
Supply voltage
250
Max. switching current cos phi 0.6
16
Max. incandescent lamp load
2000
Max. load fluorescent lamp
400
Max. load fluorescent lamp Duo circuit
700
Max. load fluorescent lamp parallel compensated
300
Rated switch current
16
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Brands
Siemens AG
