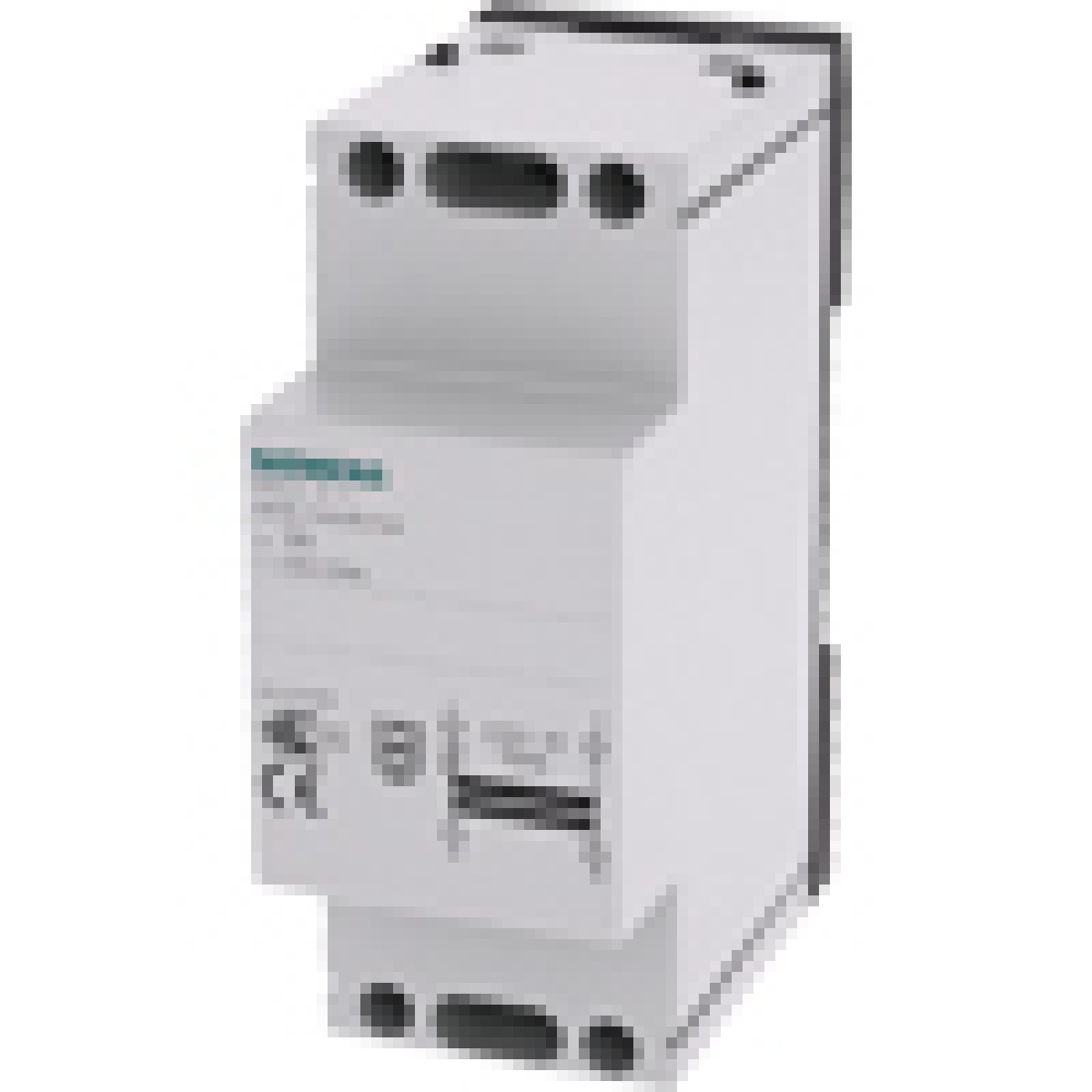

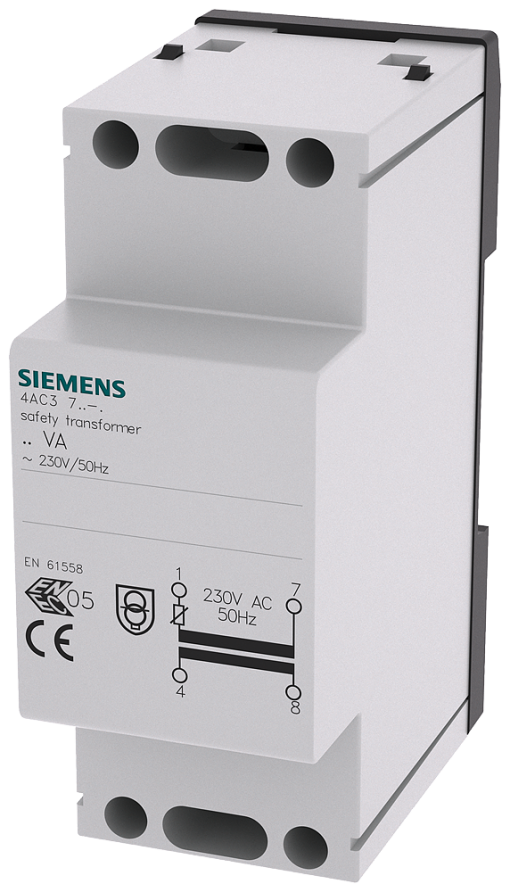

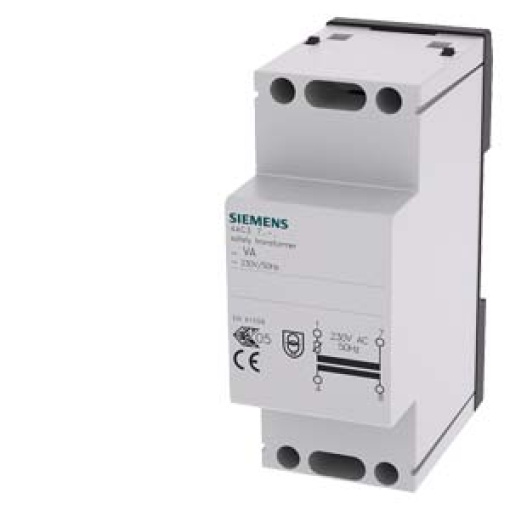

Safety transformer 16 VA primary 230 V AC 50 Hz secondary 8 V AC
Management and Measuring Devices
Safety transformer 16 VA primary 230 V AC 50 Hz secondary 8 V AC
Manufacturer Ref:
4AC37160
Nortécnica Ref:
EAN:
4001869438320
Description
Technical Information
Attributes
Width
36
Height
64
Type of transformer
Safety transformer
With onoff switch
No
Suitable for distribution board
Yes
Max. output current
2
Length
90
Max. output power
16
Width in number of modular spacings
2
Surface mounting
No
Short-circuit protected
Yes
Primary voltage
230
Secondary voltage 1
8
Secondary voltage 2
-
Secondary voltage 3
-
Secondary amperage 1
2
Secondary amperage 2
-
Secondary amperage 3
-
Temperature protection
Yes
Max. power loss
6.8
Flush-mounted installation
No
Brands
Siemens AG
