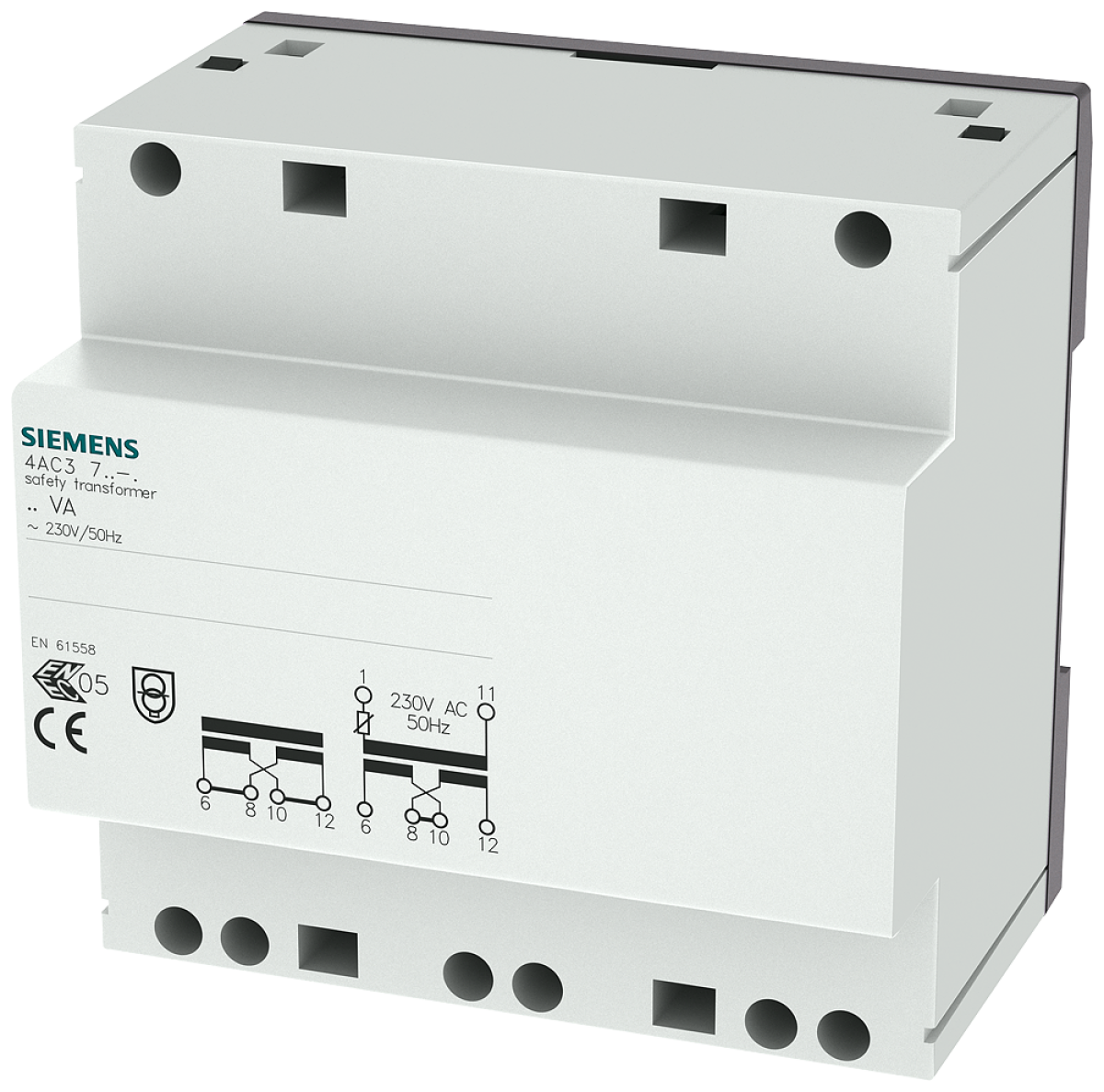

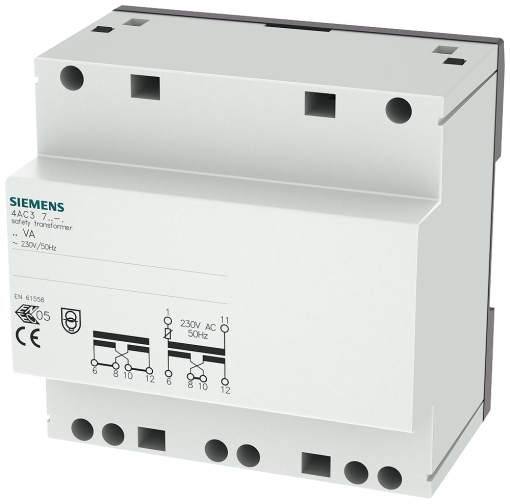

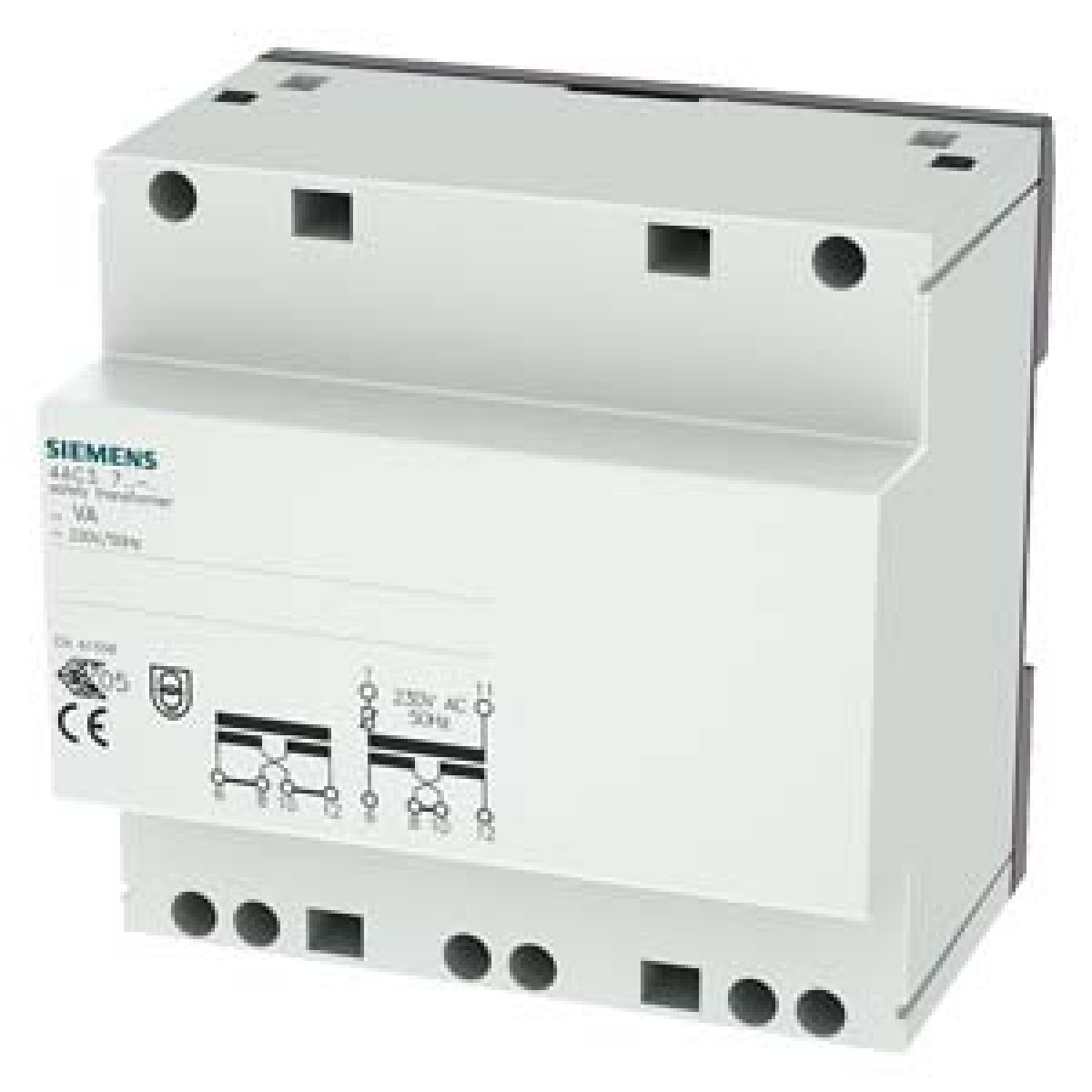

Safety transformer 40 VA primary 230 V AC 50 Hz secondary 2x12 V24 V AC
Management and Measuring Devices
Safety transformer 40 VA primary 230 V AC 50 Hz secondary 2x12 V24 V AC
Manufacturer Ref:
4AC37400
Nortécnica Ref:
EAN:
4001869438344
Description
Technical Information
Attributes
Width
90
Height
64
Type of transformer
Safety transformer
With onoff switch
No
Suitable for distribution board
Yes
Max. output current
3.3
Length
90
Max. output power
40
Width in number of modular spacings
5
Surface mounting
No
Short-circuit protected
Yes
Primary voltage
230
Secondary voltage 1
12
Secondary voltage 2
24
Secondary voltage 3
-
Secondary amperage 1
3.3
Secondary amperage 2
1.6
Secondary amperage 3
-
Temperature protection
Yes
Max. power loss
7.7
Flush-mounted installation
No
Brands
Siemens AG
Technical Sheet
