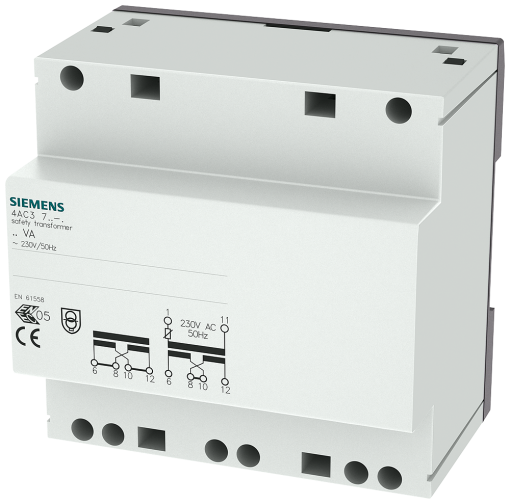

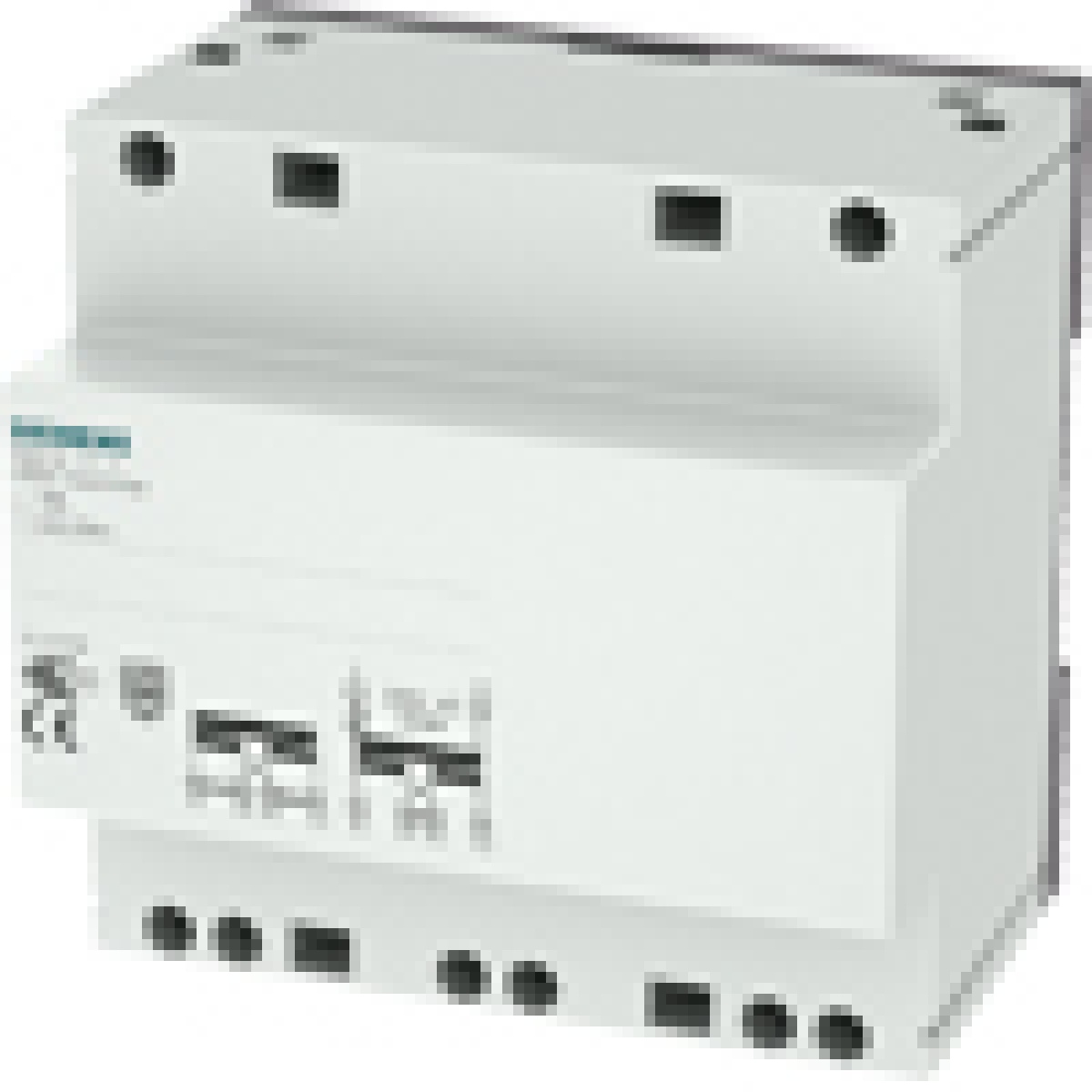

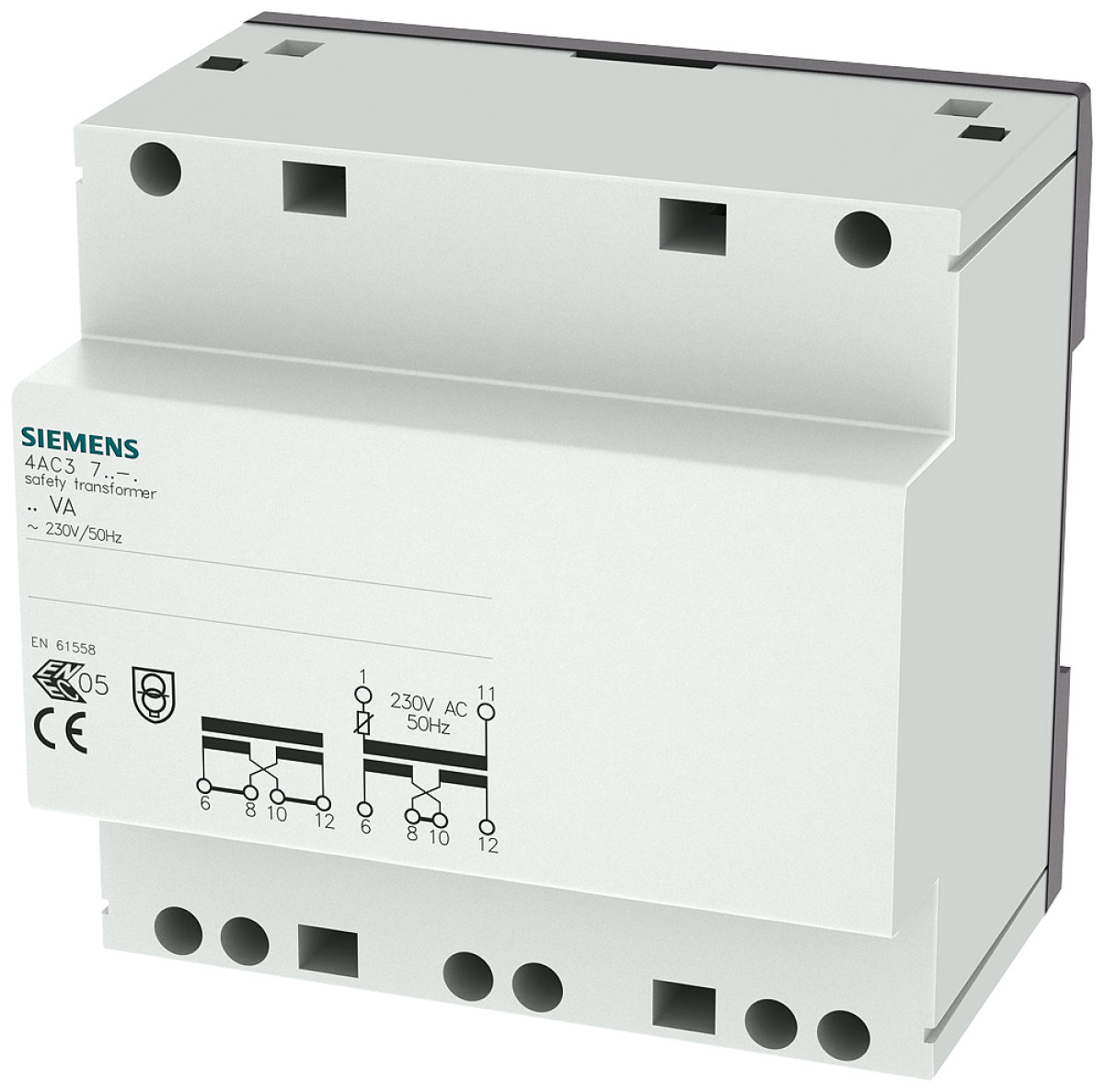

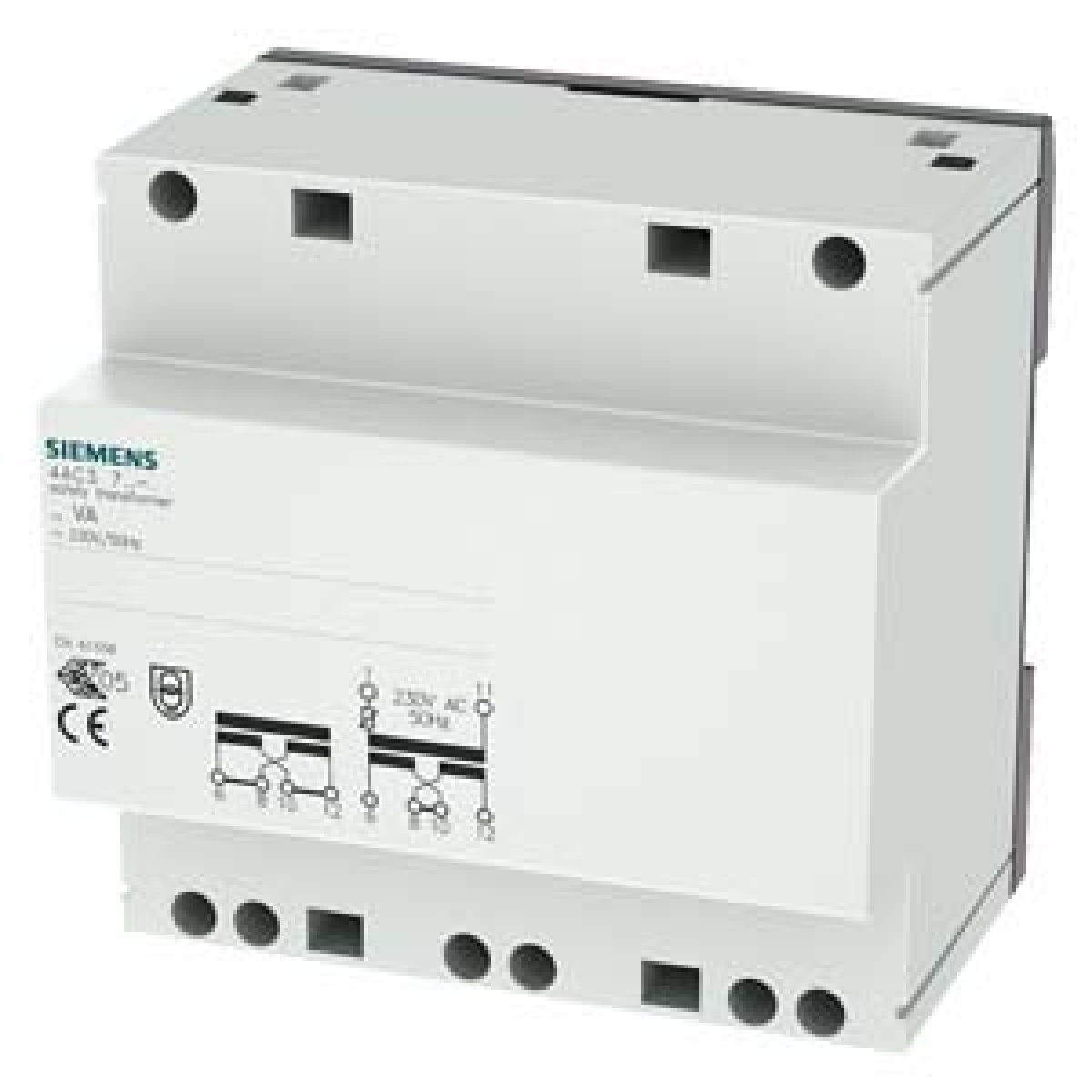

Safety transformer 63 VA primary 230 V AC 50 Hz secondary 2x12 V24 V AC
Management and Measuring Devices
Safety transformer 63 VA primary 230 V AC 50 Hz secondary 2x12 V24 V AC
Manufacturer Ref:
4AC37630
Nortécnica Ref:
EAN:
4001869438368
Description
Technical Information
Attributes

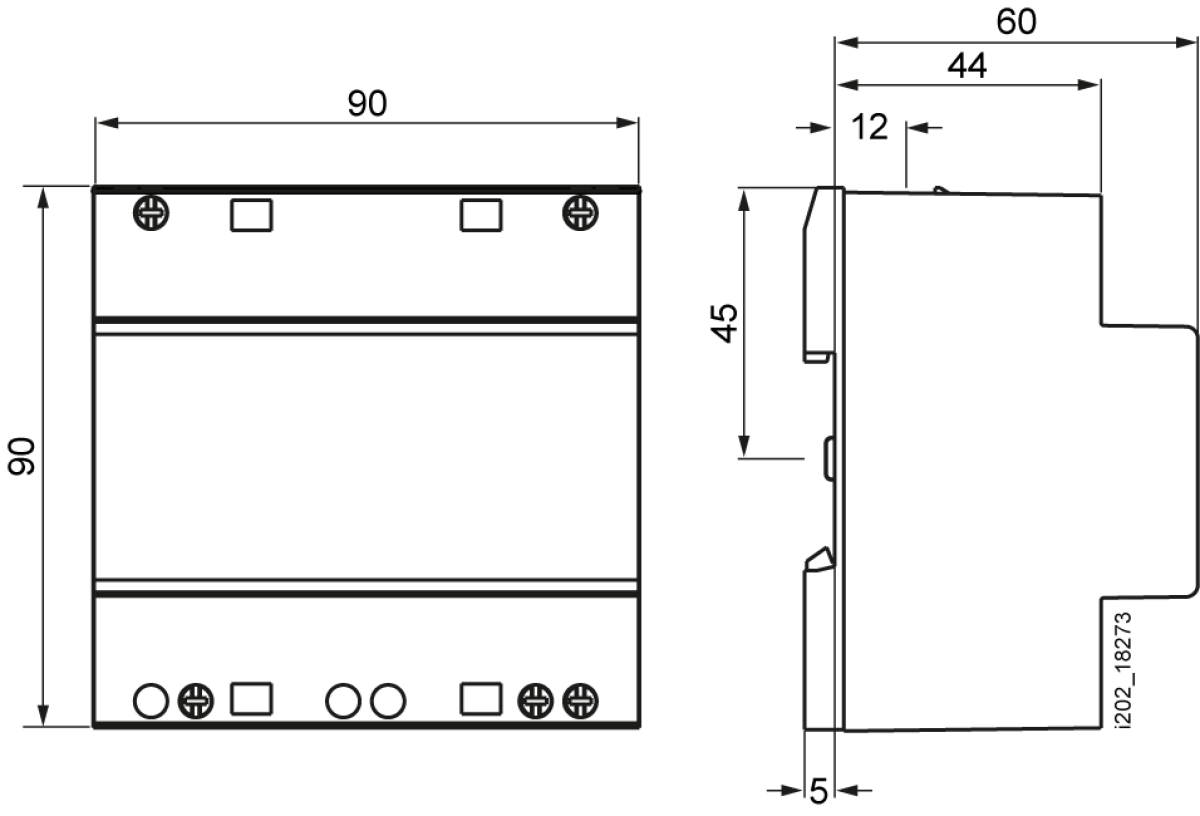

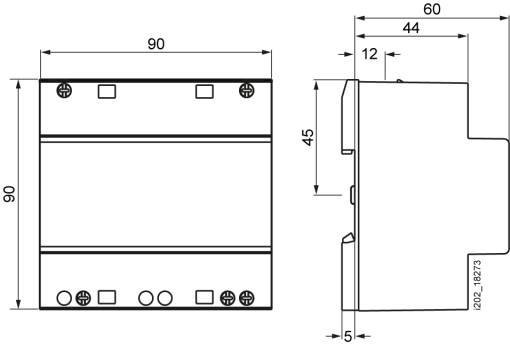

Largura
90
Altura
64
Type of transformer
Safety transformer
With onoff switch
No
Suitable for distribution board
Yes
Corrente de saída max.
5.2
Comprimento
90
Max. output power
63
Largura em número de módulos
5
Surface mounting
No
Short-circuit protected
Yes
Primary voltage
230
Secondary voltage 1
12
Secondary voltage 2
24
Secondary voltage 3
-
Secondary amperage 1
5.2
Secondary amperage 2
2.6
Secondary amperage 3
-
Temperature protection
Yes
Max. power loss
13.5
Flush-mounted installation
No
Brands
Siemens AG
Technical Sheet
