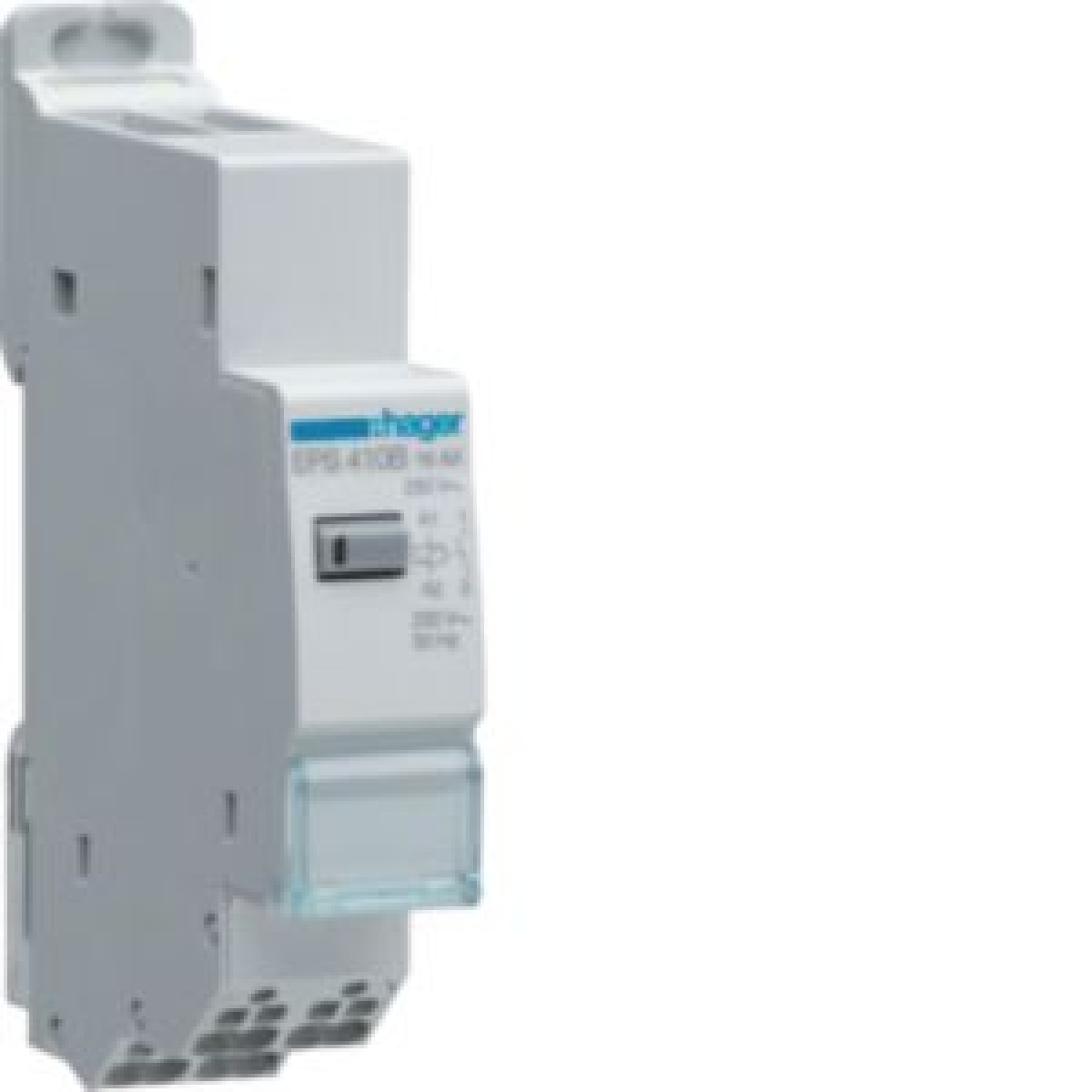

Telerruptor electr 1NA 230V lig rápida
Management and Measuring Devices
Telerruptor electr 1NA 230V lig rápida
Manufacturer Ref:
EPS410B
Nortécnica Ref:
71EPS410B
EAN:
3250612369270
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Electronic switch
Built-in depth
64
Width in number of modular spacings
18
Control voltage 1
230
230
Control voltage 2
0
0
Type of control voltage 1
AC
Type of control voltage 2
AC
Frequency control voltage 1
50
60
Frequency control voltage 2
50
60
Suitable for manual operation
Yes
Voltage type supply voltage
AC
Supply voltage
230
230
Max. switching current cos phi 0.6
16
Max. incandescent lamp load
1500
Max. load fluorescent lamp
1200
Max. load fluorescent lamp Duo circuit
600
Max. load fluorescent lamp parallel compensated
300
Rated switch current
16
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
