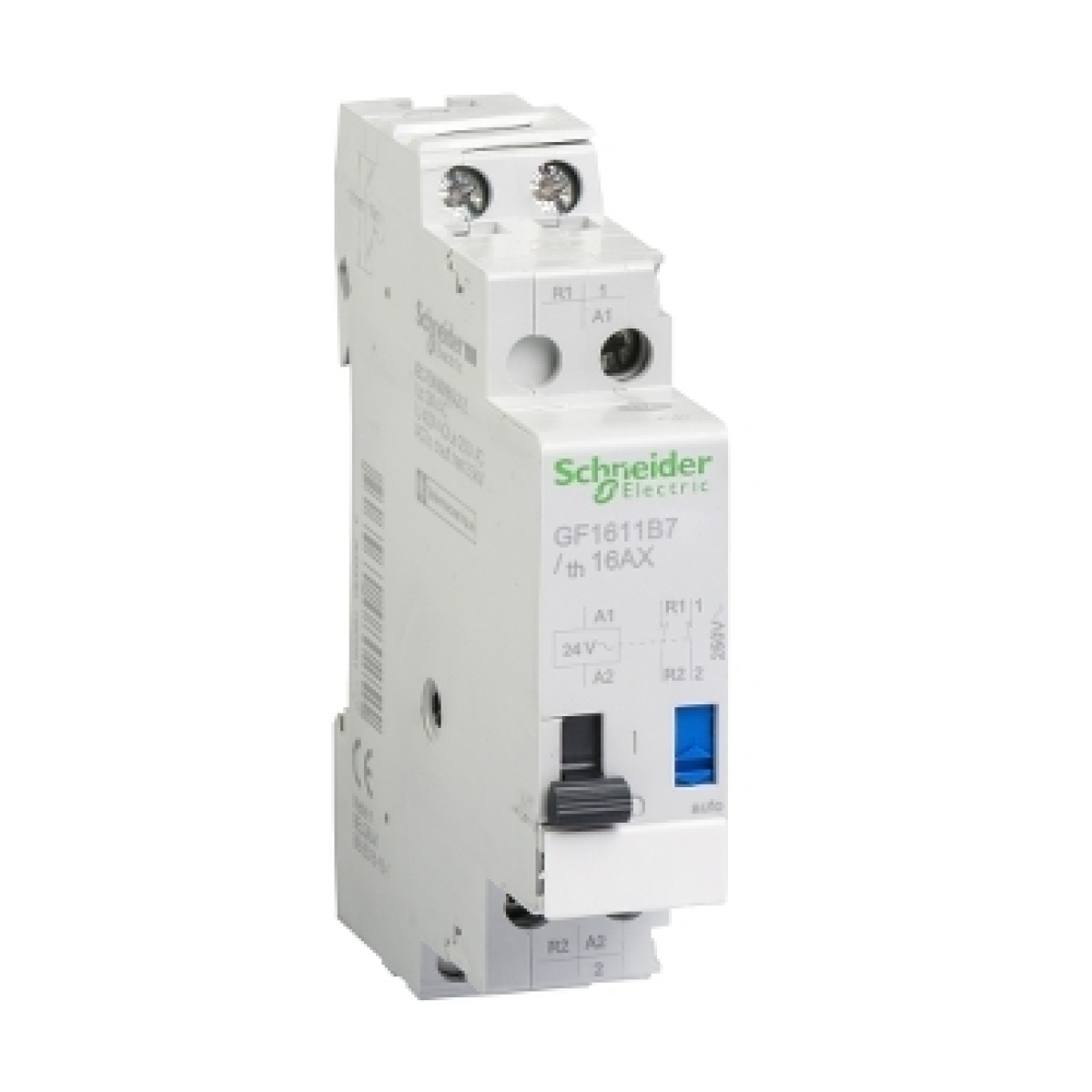

TeSys GF - impulse relay - 16 A - 1 NO 1 NC - 24 V AC 5060 Hz coil
Management and Measuring Devices
TeSys GF - impulse relay - 16 A - 1 NO 1 NC - 24 V AC 5060 Hz coil
Manufacturer Ref:
GF1611B7
Nortécnica Ref:
EAN:
3389110707779
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Mechanical switch
Built-in depth
64
Width in number of modular spacings
1
Control voltage 1
24
24
Control voltage 2
-
-
Type of control voltage 1
AC
Type of control voltage 2
-
Frequency control voltage 1
50
60
Frequency control voltage 2
-
-
Suitable for manual operation
Yes
Voltage type supply voltage
AC
Supply voltage
0
250
Max. switching current cos phi 0.6
16
Max. incandescent lamp load
1600
Max. load fluorescent lamp
1260
Max. load fluorescent lamp Duo circuit
2000
Max. load fluorescent lamp parallel compensated
920
Rated switch current
16
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Brands
Schneider
