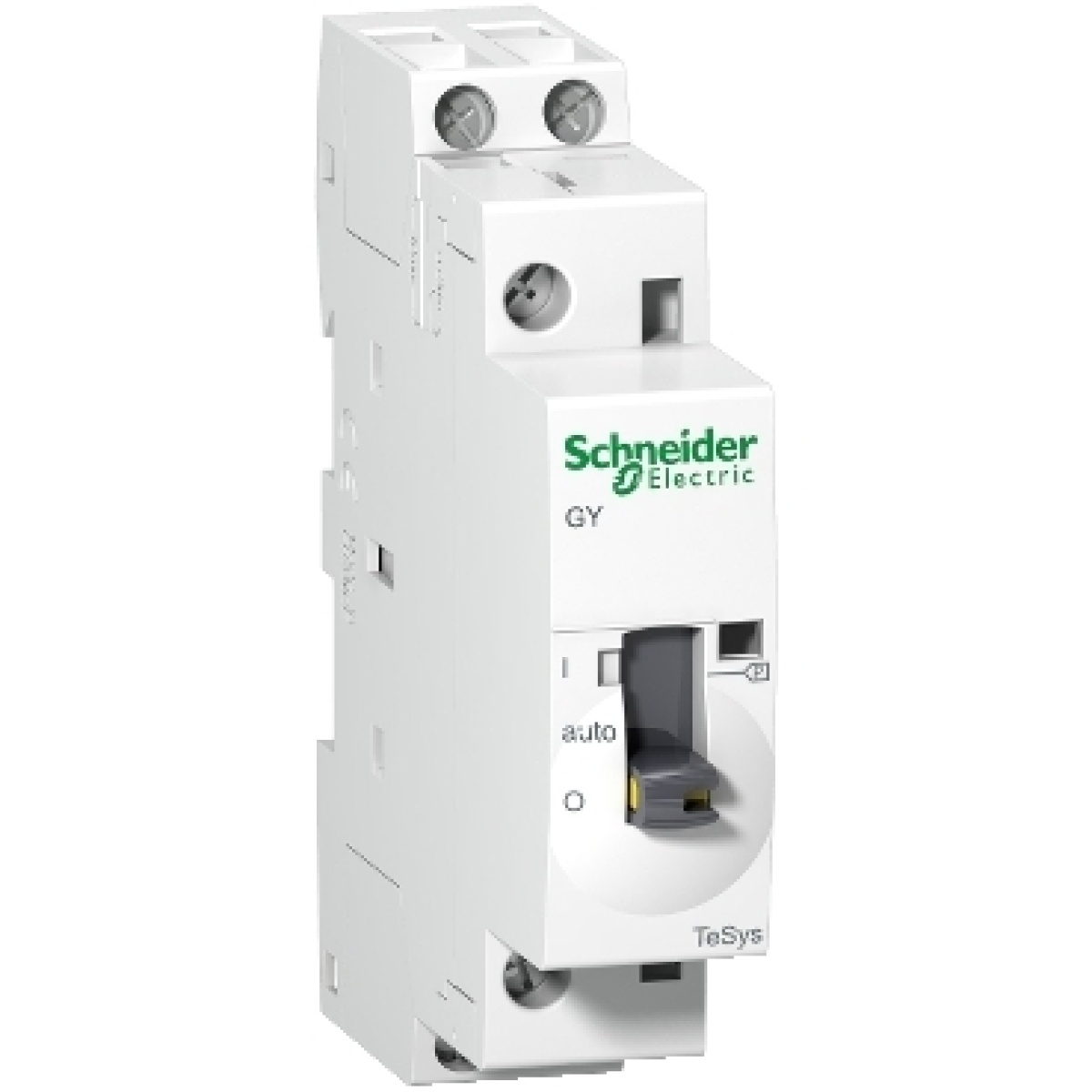

TeSys GY - modular dual tariff contactor - 25 A - 2 NO - coil 220...240 V AC
Management and Measuring Devices
TeSys GY - modular dual tariff contactor - 25 A - 2 NO - coil 220...240 V AC
Manufacturer Ref:
GY2520M5
Nortécnica Ref:
EAN:
3389110642490
Description
Technical Information
Attributes
Built-in depth
62.5
Rated operating voltage
0
250
Width in number of modular spacings
17.5
Max. incandescent lamp load
5400
Max. load fluorescent lamp
1200
Max. load fluorescent lamp Duo circuit
1600
Max. load fluorescent lamp parallel compensated
800
Slider for hand switch
Yes
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP20
Rated operation current
25
Additional equipment possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Rated excitation voltage
220
240
Hum-free
-
Utilization category according to EN IEC 60947-4-1
AC-7a
With daynight function
Yes
Brands
Schneider
Technical Sheet
