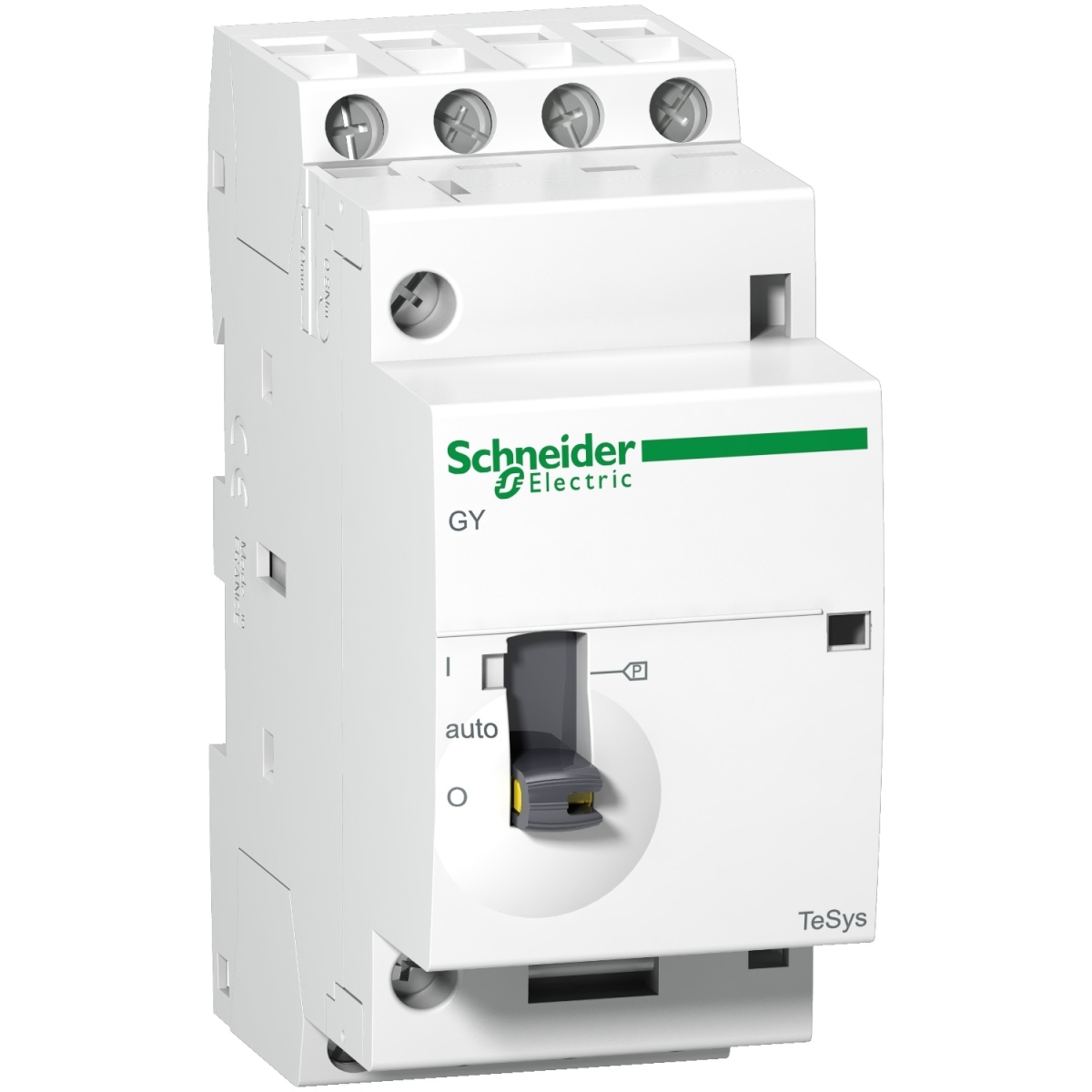

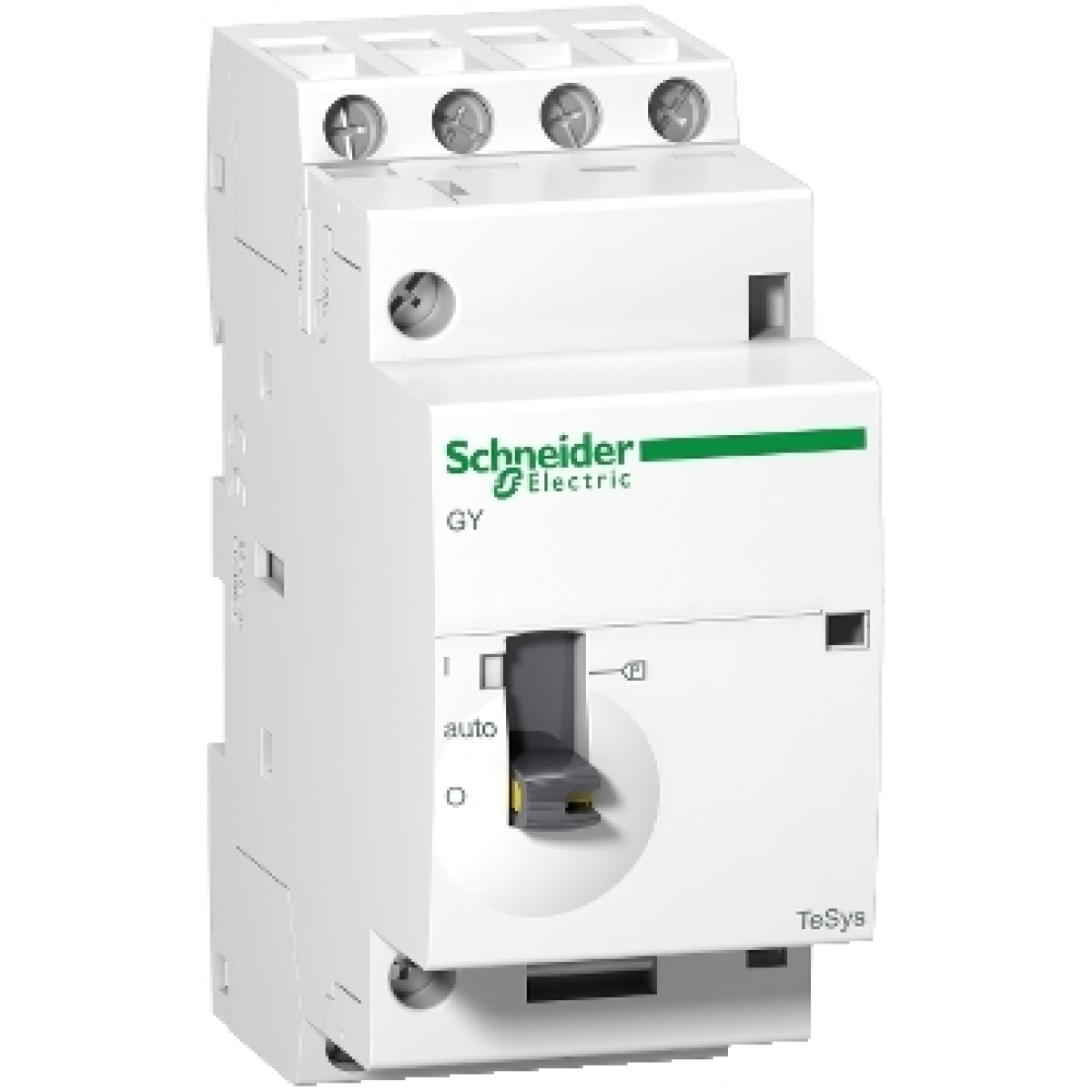

TeSys GY - modular dual tariff contactor - 25 A - 4 NO - coil 220...240 V AC
Management and Measuring Devices
TeSys GY - modular dual tariff contactor - 25 A - 4 NO - coil 220...240 V AC
Manufacturer Ref:
GY2540M5
Nortécnica Ref:
52GY2540M5
EAN:
3389110642629
Description
Technical Information
Attributes
Built-in depth
62.5
Rated operating voltage
250
250
Width in number of modular spacings
2
Max. incandescent lamp load
16000
Max. load fluorescent lamp
3600
Max. load fluorescent lamp Duo circuit
4800
Max. load fluorescent lamp parallel compensated
2400
Slider for hand switch
Yes
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP20
Rated operation current
25
Additional equipment possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
4
Rated excitation voltage
220
240
Hum-free
-
Utilization category according to EN IEC 60947-4-1
AC-7a
With daynight function
Yes
Brands
Schneider
Technical Sheet
