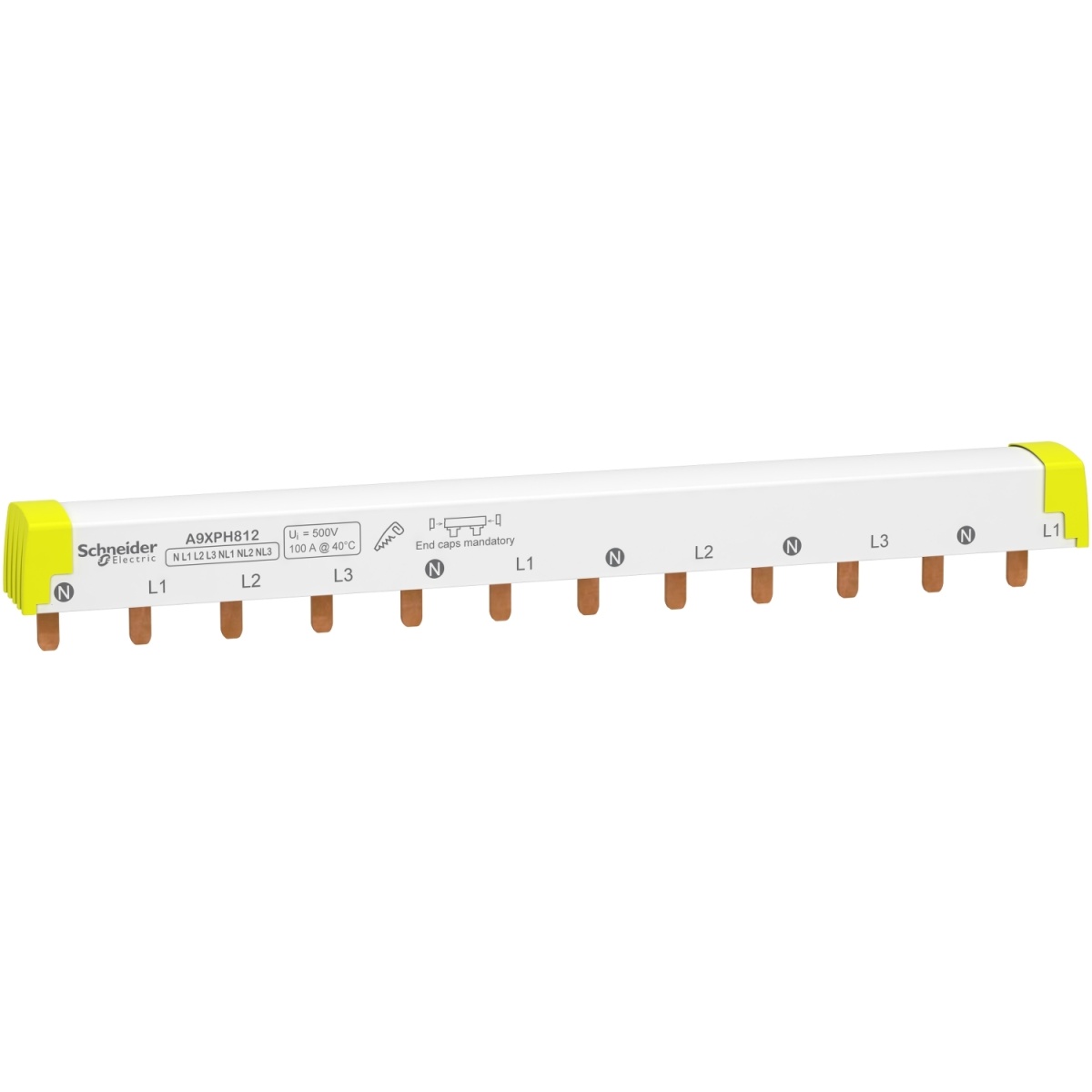

Acti 9 - comb busbar - 1LN - 18 mm - 12 módulos - 100 A
Accessories and Components
Acti 9 - comb busbar - 1LN - 18 mm - 12 módulos - 100 A
Manufacturer Ref:
A9XPH812
Nortécnica Ref:
EAN:
3606481160300
Description
Technical Information
Attributes
Colour
White
Insulated
Yes
Number of phases
3
Cross section
16
Rated permanent current Iu
80
Number of poles
4
Length
216
Conditioned rated short-circuit current Iq
-
Width in number of modular spacings
12
Rated surge voltage
-
Type of electric connection
Pin
Rated short-time withstand current lcw
-
Suitable for devices with auxiliary switch
No
Suitable for devices with N-conductor
Yes
Suitable for number of devices
5
Max. rated operation voltage Ue
400
Module width
18
Can be cut to size
Yes
Brands
Schneider
Technical Sheet
