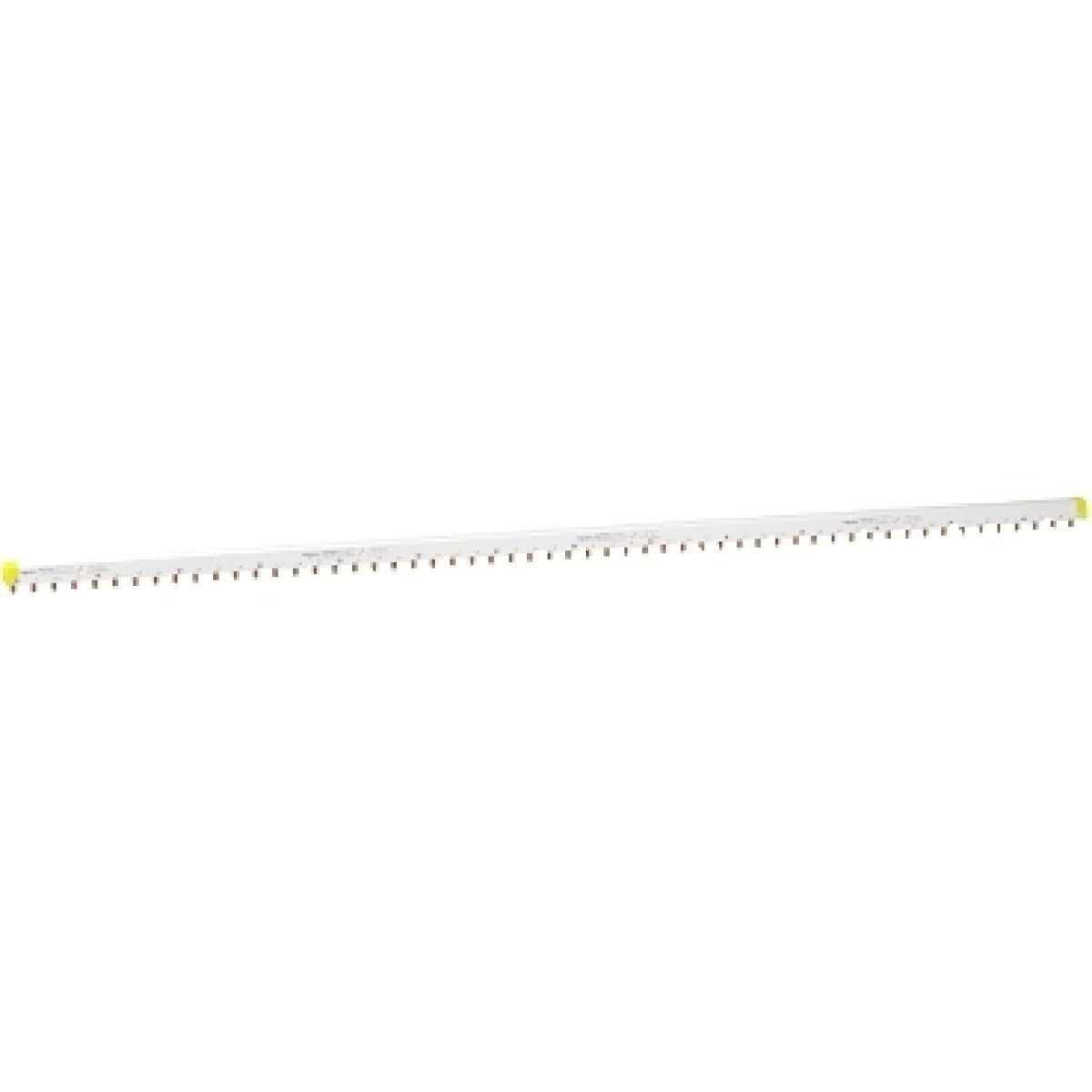

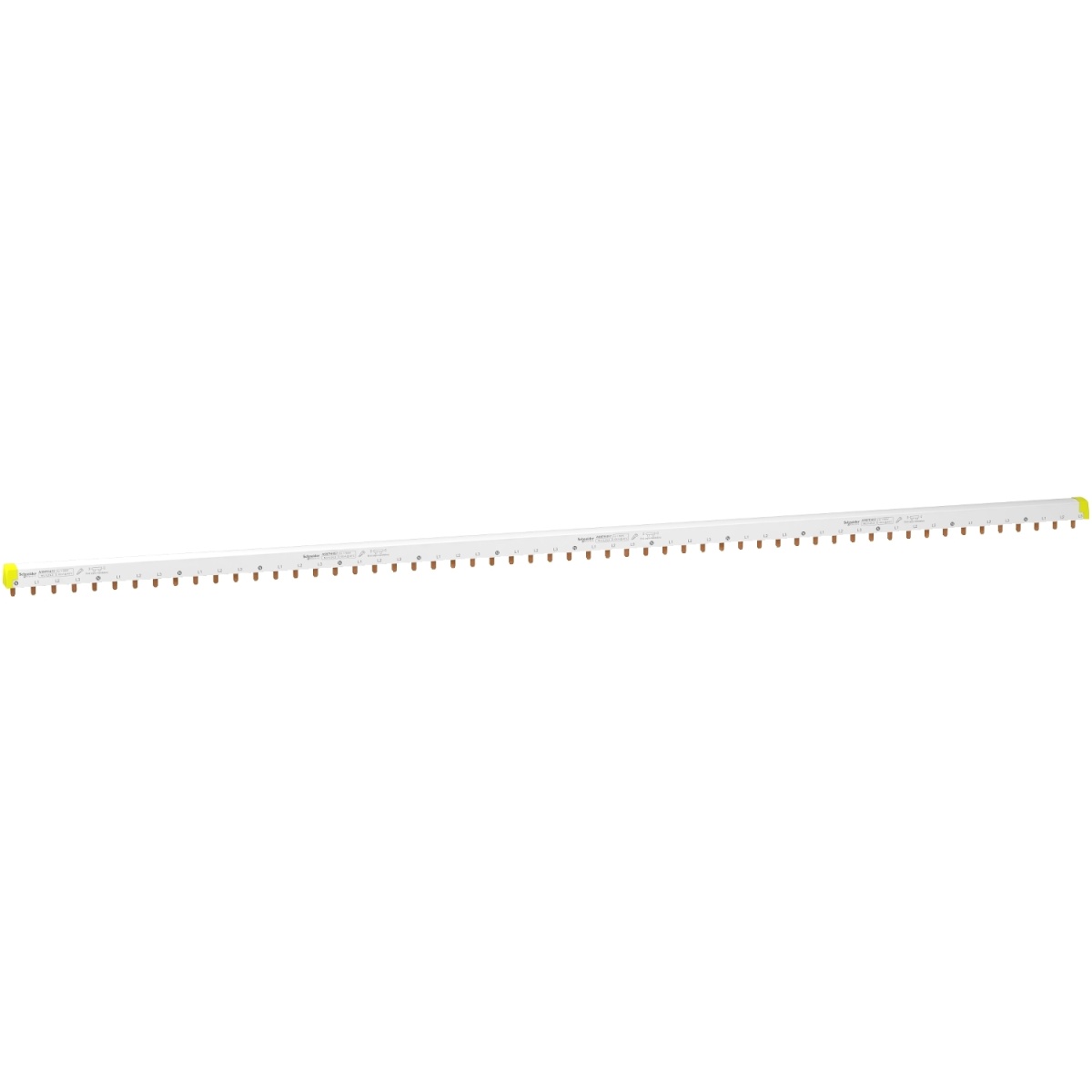

Acti 9 - comb busbar - 3LN - 18 mm pitch - 57 modules - 100 A
Accessories and Components
Acti 9 - comb busbar - 3LN - 18 mm pitch - 57 modules - 100 A
Manufacturer Ref:
A9XPH457
Nortécnica Ref:
51A9XPH457
EAN:
3606480485176
Description
Technical Information
Attributes
Colour
White
Insulated
Yes
Number of phases
3
Cross section
16
Rated permanent current Iu
100
Number of poles
4
Length
1000
Conditioned rated short-circuit current Iq
-
Width in number of modular spacings
57
Rated surge voltage
-
Type of electric connection
Pin
Rated short-time withstand current lcw
-
Suitable for devices with auxiliary switch
Yes
Suitable for devices with N-conductor
Yes
Suitable for number of devices
14
Max. rated operation voltage Ue
415
Module width
18
Can be cut to size
Yes
Brands
Schneider
Technical Sheet
