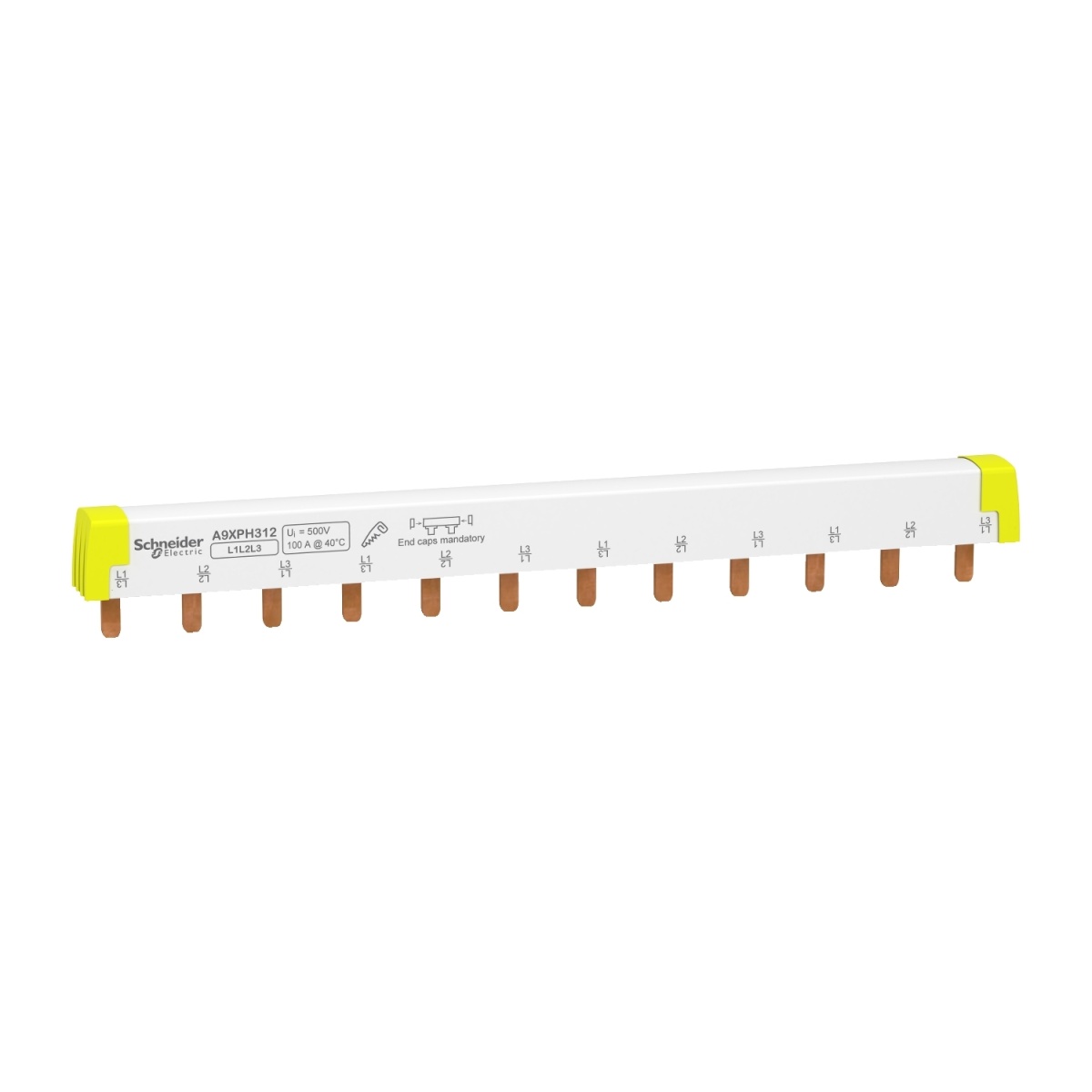

Acti 9 - comb busbar - 3L - 18 mm pitch - 12 modules - 100A
Accessories and Components
Acti 9 - comb busbar - 3L - 18 mm pitch - 12 modules - 100A
Manufacturer Ref:
A9XPH312
Nortécnica Ref:
51A9XPH312
EAN:
3606480485046
Description
Technical Information
Attributes
Colour
White
Insulated
Yes
Number of phases
3
Cross section
16
Rated permanent current Iu
100
Number of poles
3
Length
220
Conditioned rated short-circuit current Iq
-
Width in number of modular spacings
12
Rated surge voltage
-
Type of electric connection
Pin
Rated short-time withstand current lcw
-
Suitable for devices with auxiliary switch
Yes
Suitable for devices with N-conductor
No
Suitable for number of devices
4
Max. rated operation voltage Ue
415
Module width
18
Can be cut to size
Yes
Brands
Schneider
Technical Sheet
