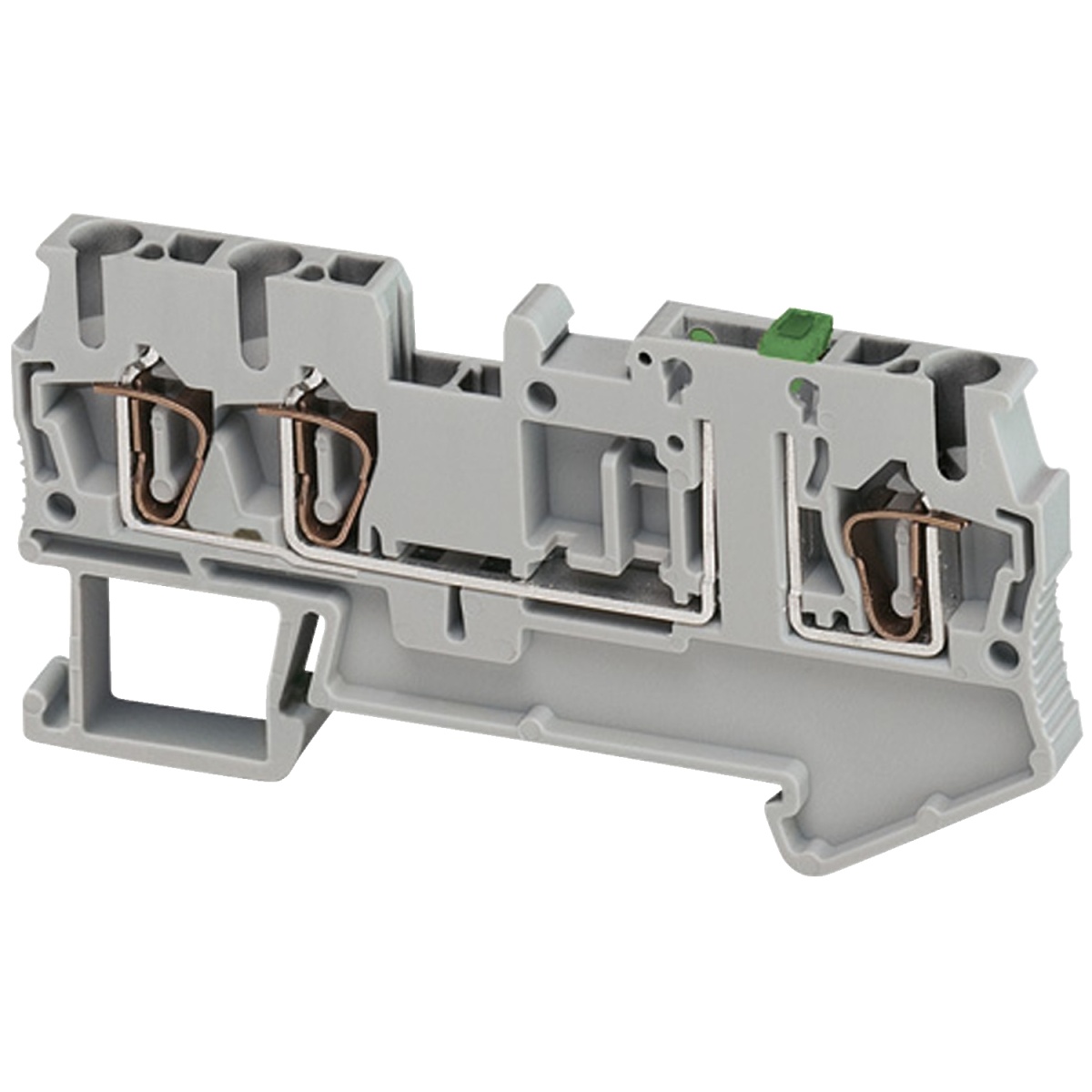

BORN SECC FACA 2,5MM2 CINZ TMO
Accessories and Components
BORN SECC FACA 2,5MM2 CINZ TMO
Manufacturer Ref:
NSYTRR23SC
Nortécnica Ref:
EAN:
3606480532924
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Grey
Width
5.2
Height
36.5
Depth
72
EF000228
400
Operating temperature
-40
130
Inflammability class of insulation material according to UL94
EV004429
Closing plate required
Yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Type of slitting
Swivelling
Type of cross disconnection
Swivelling
With integrated test socket
No
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
No
Connectable conductor cross section solid-core
0.8
4
Connectable conductor cross section fine-strand with cable end sleeve
0.8
4
Connectable conductor cross section fine-strand without cable end sleeve
0.08
2.5
Connectable conductor cross section multi-wired
0.08
2.5
Material insulation body
Thermoplastic
Rated current In
20
Brands
Schneider
Technical Sheet
