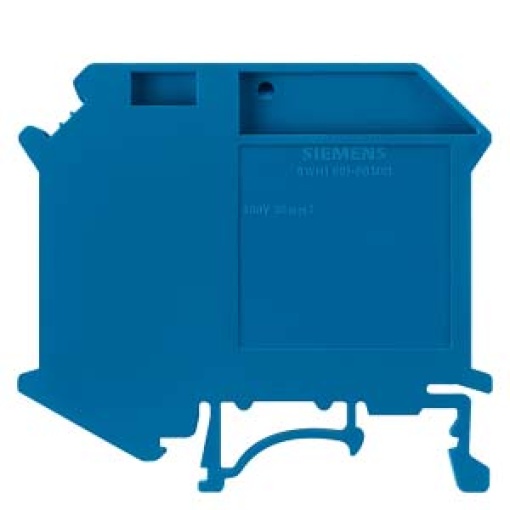

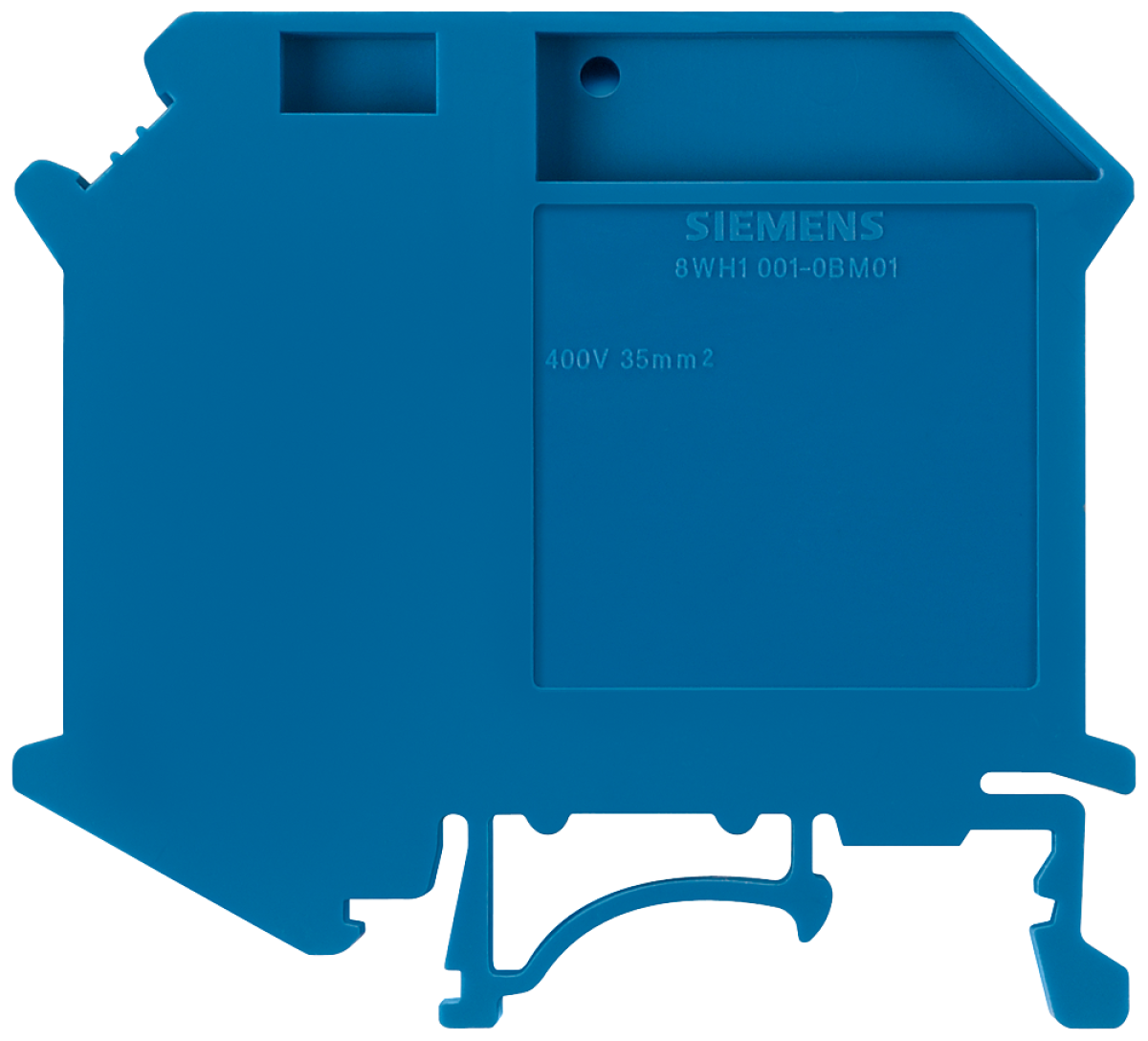

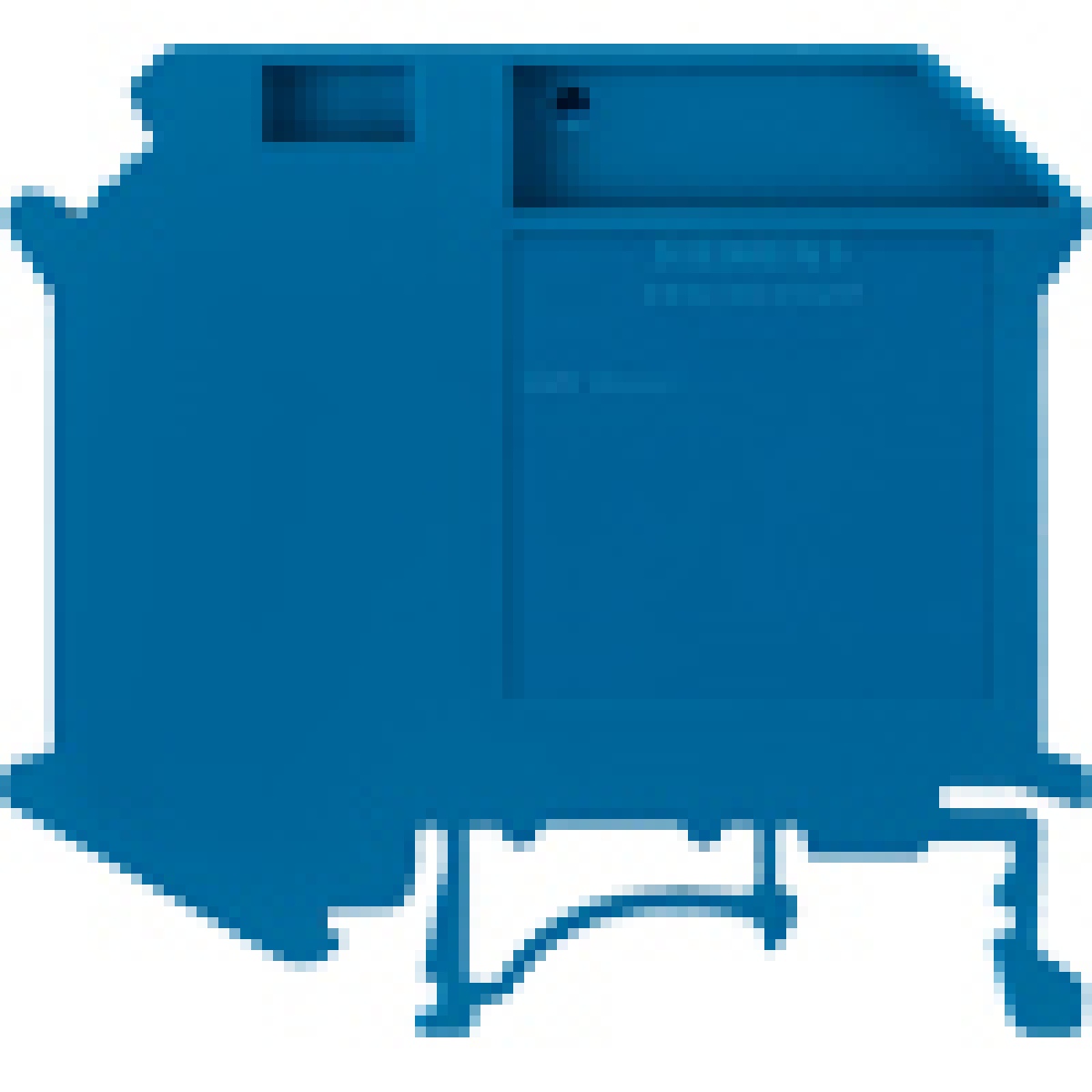

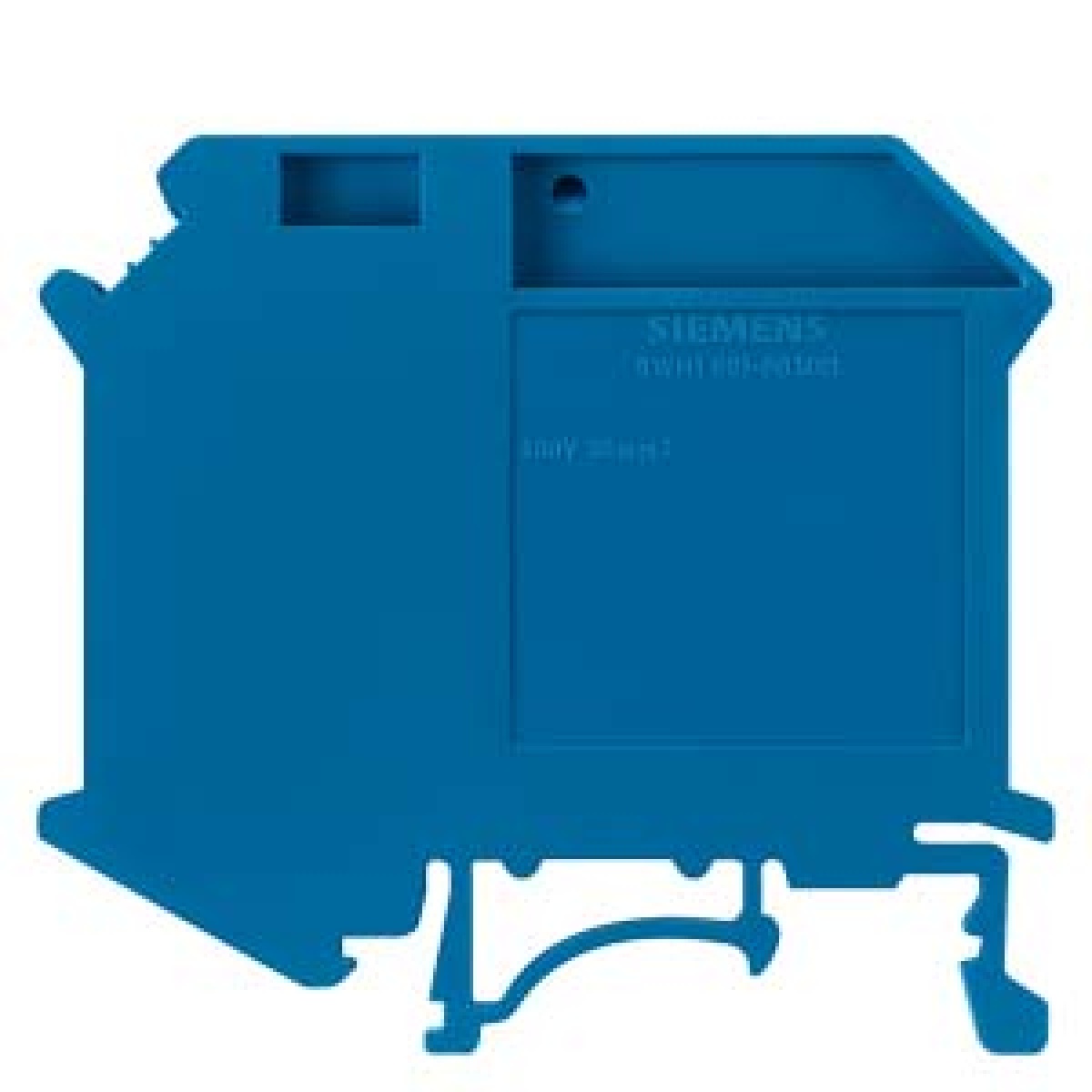

N conductor isolating terminal with screw terminal crosssection 35 mm2 wi
Accessories and Components
N conductor isolating terminal with screw terminal crosssection 35 mm2 wi
Manufacturer Ref:
8WH10010BM01
Nortécnica Ref:
EAN:
4001869366746
Description
Technical Information
Attributes
Mounting method
Other
Colour
Blue
Largura
-
Altura
-
Profundidade
-
Rated voltage
400
EF000584
2
Operating temperature
-
Inflammability class of insulation material according to UL94
V2
Connecting plate required
No
Suitable for N-busbar
3x10 mm
Type of electric connection
Screw connection
Connectable conductor cross section solid-core
0.75
Connectable conductor cross section fine-strand with cable end sleeve
0.75
Connectable conductor cross section fine-strand without cable end sleeve
1.5
Connectable conductor cross section multi-wired
0.75
Material insulation body
Other
Rated current In
110
Brands
Siemens AG
Technical Sheet
