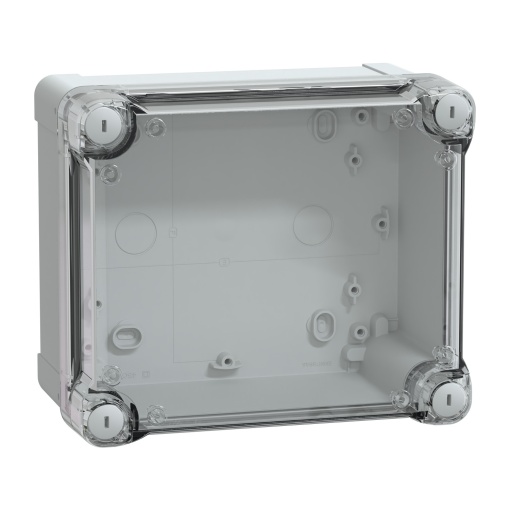

ABS box IP66 IK07 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40
Cabinets
ABS box IP66 IK07 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40
Manufacturer Ref:
NSYTBS191610HT
Nortécnica Ref:
53HNSYTBS191610HT
EAN:
3606480165474
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
II
Colour
Grey
Largura
164
Height
193
Depth
105
RAL-number
7035
With mounting plate
No
Surface protection
Untreated
Built-in depth
-
Number of rows
0
Type of covering
Cover
Number of conduit inlets
2
Extension possible
No
Inner depth
100
Housing material
Plastic
Circuit integrity
None
Width in number of modular spacings
-
Suitable for outdoor use
Yes
Impact strength
IK07
Number of modules
0
Type of door
None
Degree of protection IP
IP66
Transparent coverdoor
Yes
With lock
No
Suitable for lightning protection
Yes
Nominal current In
-
Material plate thickness cabinet
12.5
Material plate thickness doorcover
12.5
Cover model
Closed
Number of openings for flange plates
0
Degree of protection NEMA
4
Cover with overpressure release
No
Housing material quality
Other
Type of coating
Other
Brands
SCHNEIDER
Technical Sheet
