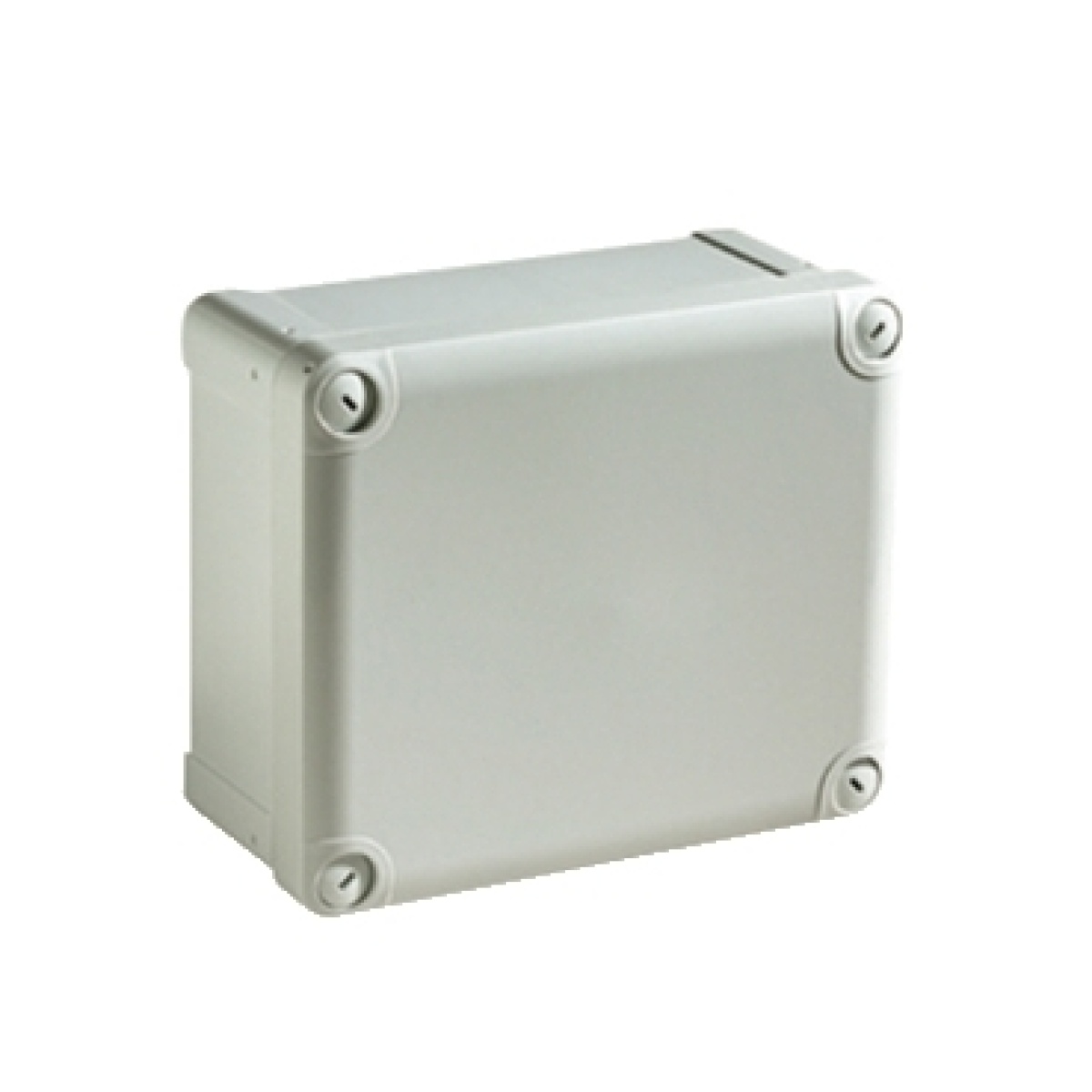

ABS box IP66 IK07 RAL7035 Int.H225W175D100 Ext.H241W194D105 Opaque cover H20
Cabinets
ABS box IP66 IK07 RAL7035 Int.H225W175D100 Ext.H241W194D105 Opaque cover H20
Manufacturer Ref:
NSYTBS241910H
Nortécnica Ref:
53NSYTBS241910H
EAN:
3606480165344
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
II
Colour
Grey
Largura
194
Height
241
Depth
107
RAL-number
7035
With mounting plate
No
Surface protection
Untreated
Built-in depth
-
Number of rows
0
Type of covering
Cover
Number of conduit inlets
2
Extension possible
No
Inner depth
100
Housing material
Plastic
Circuit integrity
None
Width in number of modular spacings
-
Suitable for outdoor use
Yes
Impact strength
IK07
Number of modules
0
Type of door
None
Degree of protection IP
IP66
Transparent coverdoor
No
With lock
No
Suitable for lightning protection
Yes
Nominal current In
-
Material plate thickness cabinet
12.5
Material plate thickness doorcover
12.5
Cover model
Closed
Number of openings for flange plates
0
Degree of protection NEMA
4
Cover with overpressure release
No
Housing material quality
Other
Type of coating
Other
Brands
SCHNEIDER
