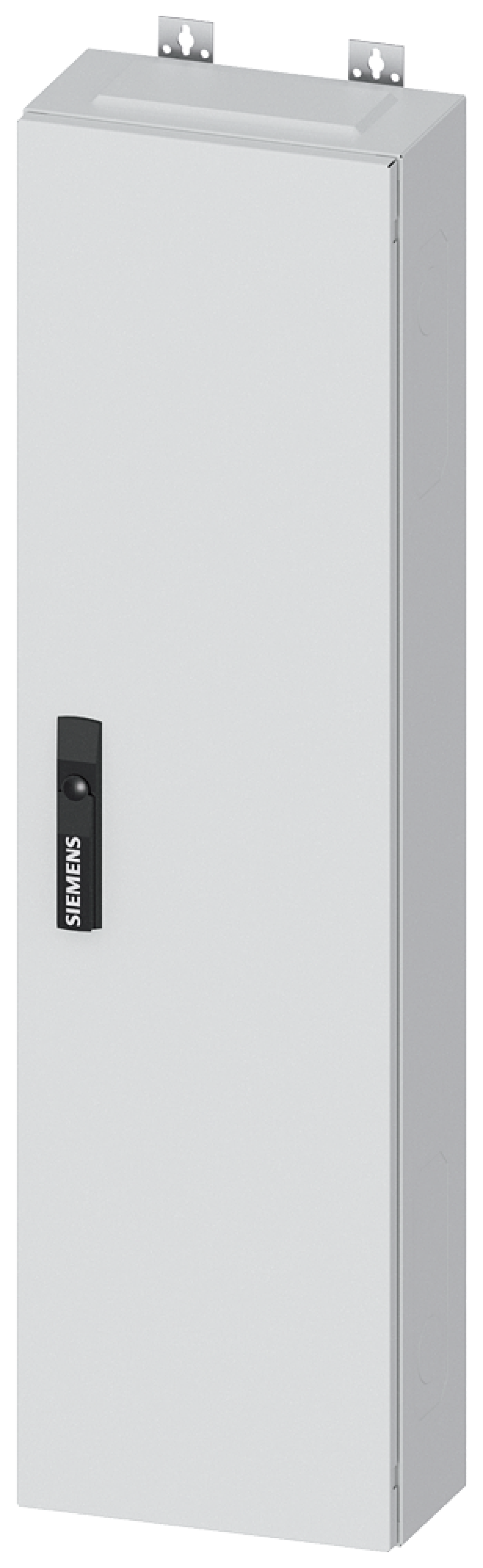

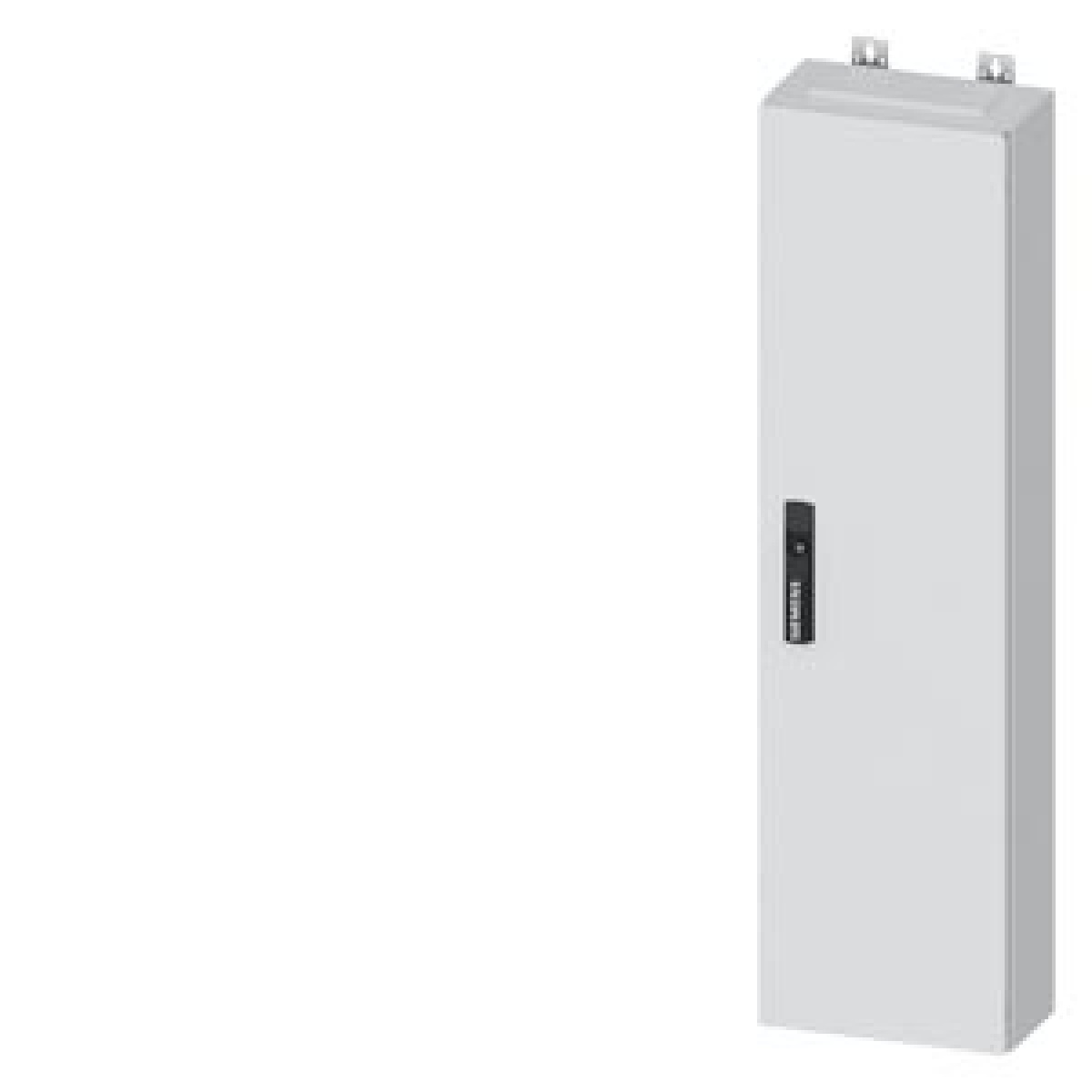

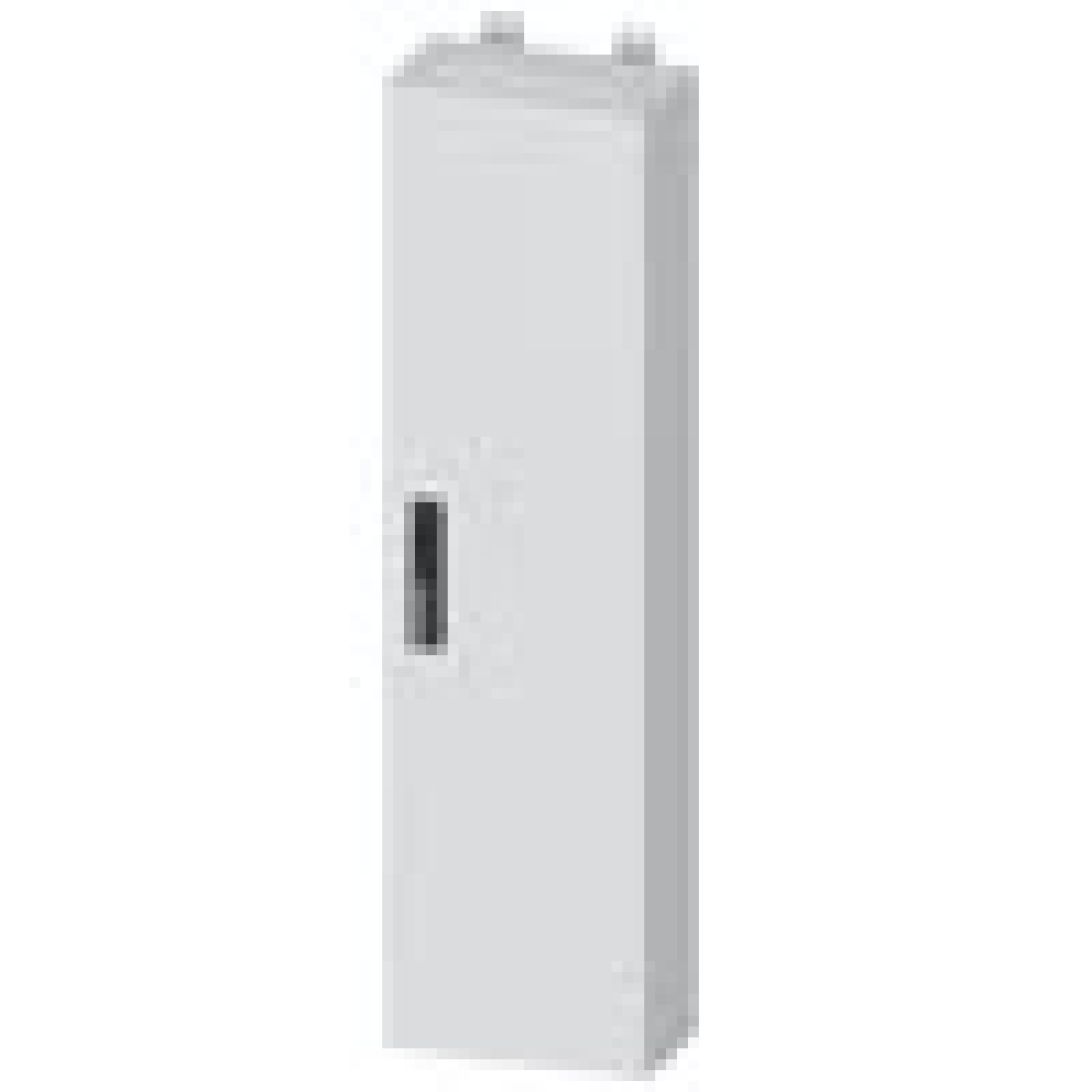

ALPHA 160 wallmounted cabinet surface mounting with distribution board pa
Cabinets
ALPHA 160 wallmounted cabinet surface mounting with distribution board pa
Manufacturer Ref:
8GK10525KK11
Nortécnica Ref:
EAN:
4001869256603
Description
Technical Information
Attributes
Mounting method
Surface mounted
EF000004
-
Colour
-

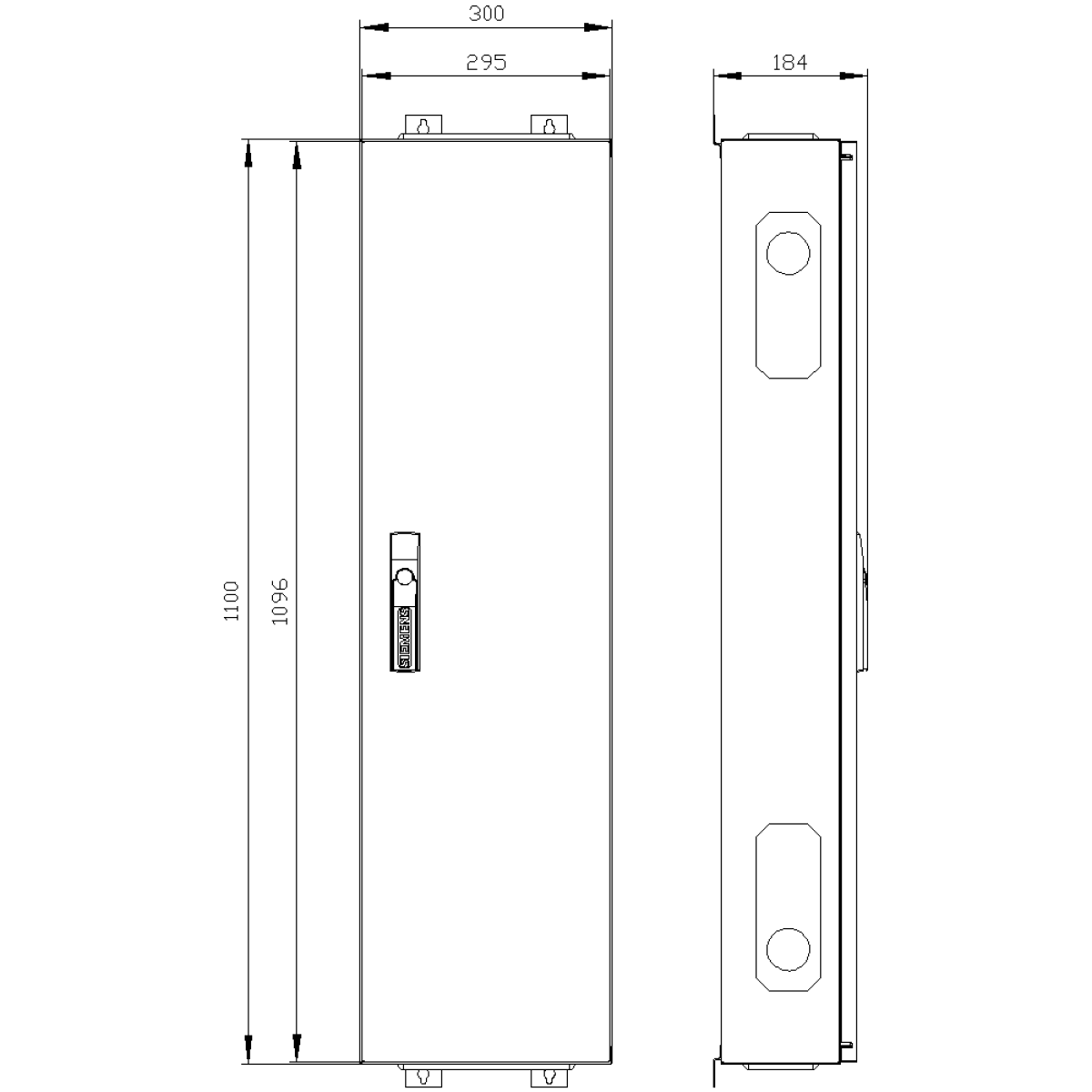

Width
300
Height
1100
Depth
140
RAL-number
9016
With mounting plate
No
Surface protection
Powder coating
Built-in depth
140
Number of rows
7
Type of covering
Optional
Number of conduit inlets
-
Extension possible
Yes
Inner depth
-
Housing material
Steel
Circuit integrity
None
Width in number of modular spacings
84
Suitable for outdoor use
No
Impact strength
IK08
Number of modules
-
Type of door
-
Degree of protection IP
IP44
Transparent coverdoor
Yes
With lock
No
Suitable for lightning protection
Yes
Nominal current In
160
Material plate thickness cabinet
-
Material plate thickness doorcover
-
Cover model
None
Number of openings for flange plates
2
Degree of protection NEMA
Other
Cover with overpressure release
-
Brands
Siemens AG
Technical Sheet
