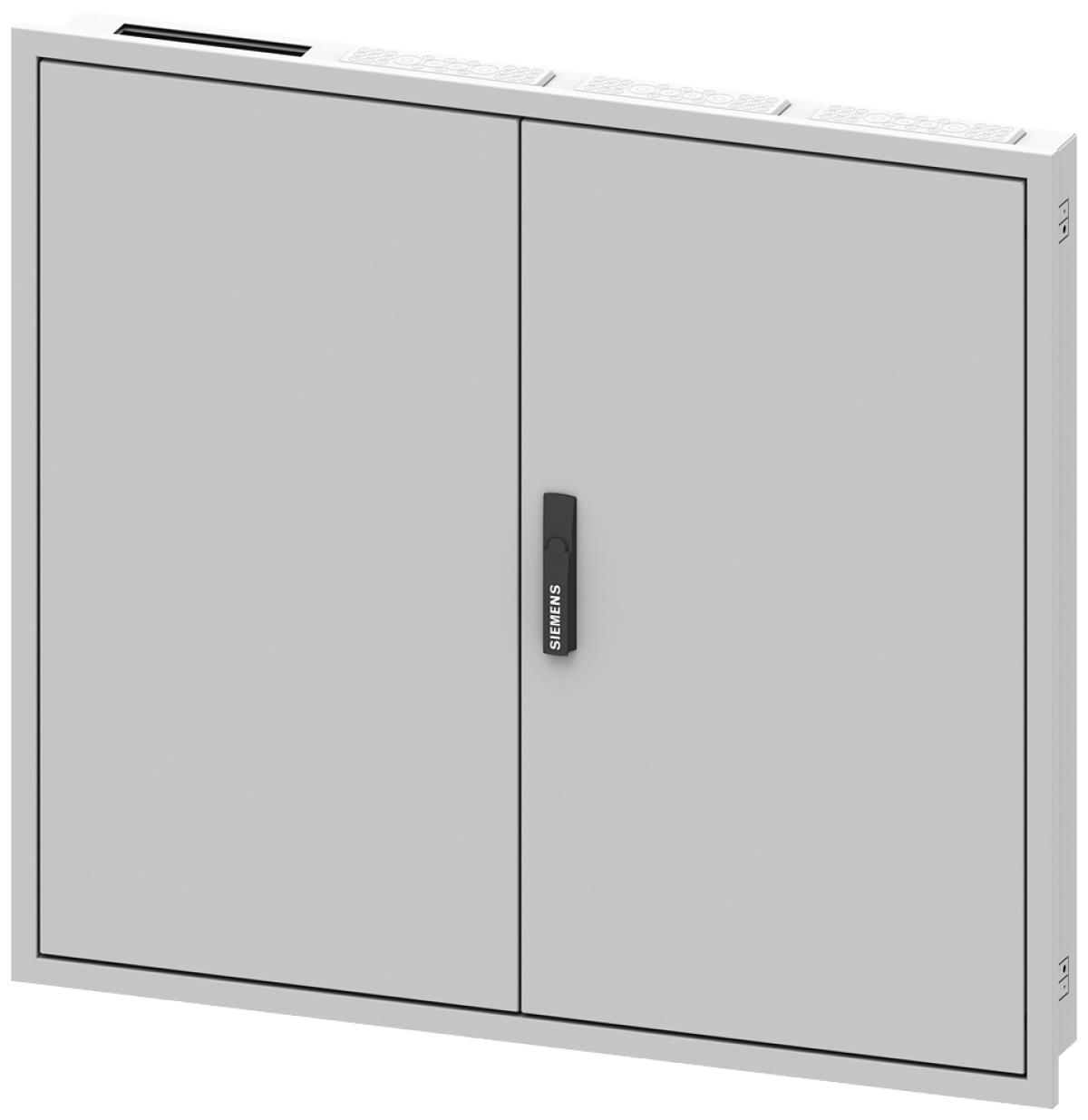

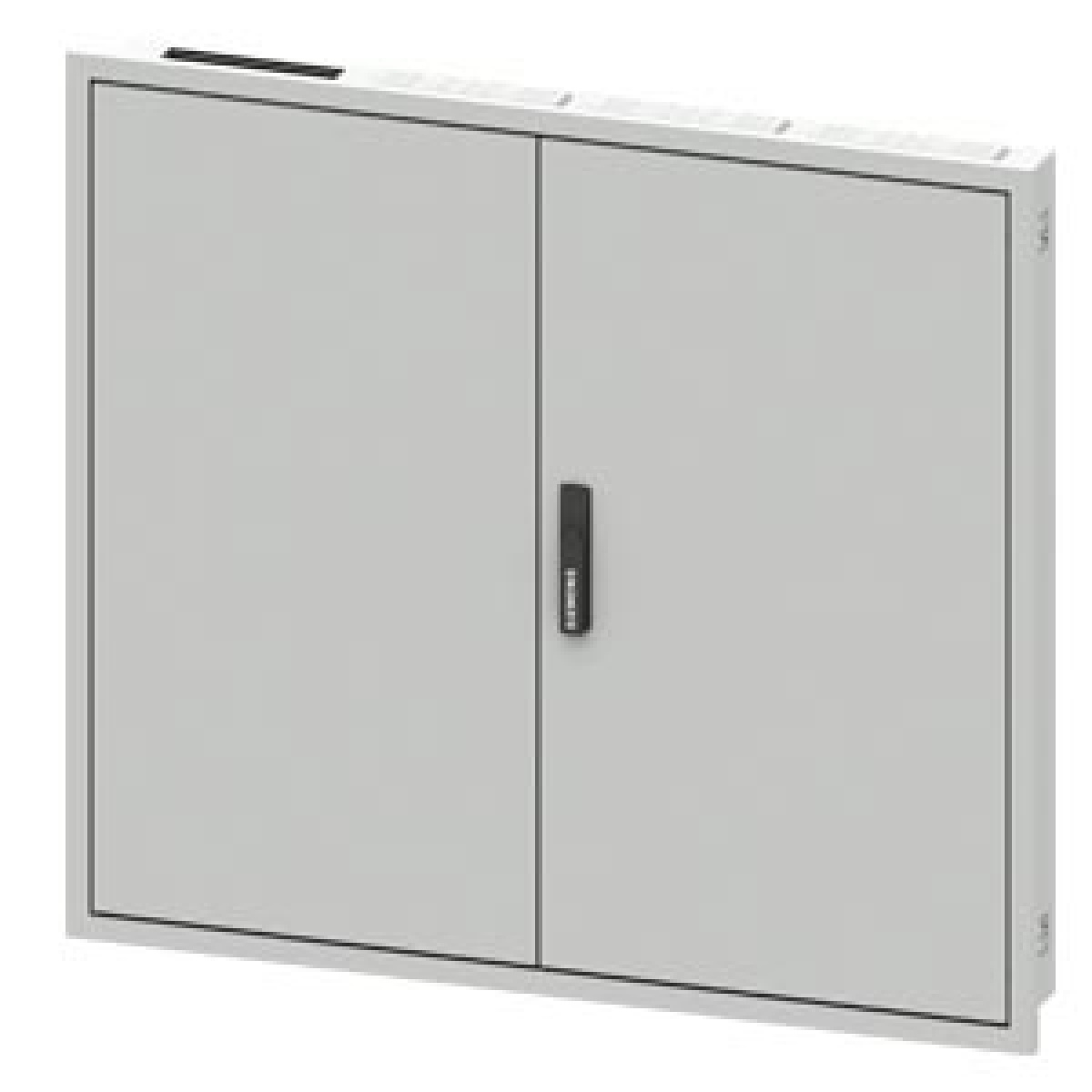

ALPHA 160 DIN flushm wallmounted unequipped distribution board SK2 H950
Cabinets
ALPHA 160 DIN flushm wallmounted unequipped distribution board SK2 H950
Manufacturer Ref:
8GK10314KK40
Nortécnica Ref:
EAN:
4047624145492
Description
Technical Information
Attributes
Mounting method
-
EF000004
-
Colour
-
Width
1097
Height
997
Depth
120
RAL-number
9016
With mounting plate
No
Surface protection
Powder coating
Built-in depth
120
Number of rows
24
Type of covering
Optional
Number of conduit inlets
-
Extension possible
Yes
Inner depth
-
Housing material
Steel
Circuit integrity
None
Width in number of modular spacings
288
Suitable for outdoor use
No
Impact strength
IK08
Number of modules
-
Type of door
Double
Degree of protection IP
IP31
Transparent coverdoor
Yes
With lock
No
Suitable for lightning protection
-
Nominal current In
160
Material plate thickness cabinet
-
Material plate thickness doorcover
-
Cover model
None
Number of openings for flange plates
8
Degree of protection NEMA
Other
Cover with overpressure release
-
Brands
Siemens AG
Technical Sheet
