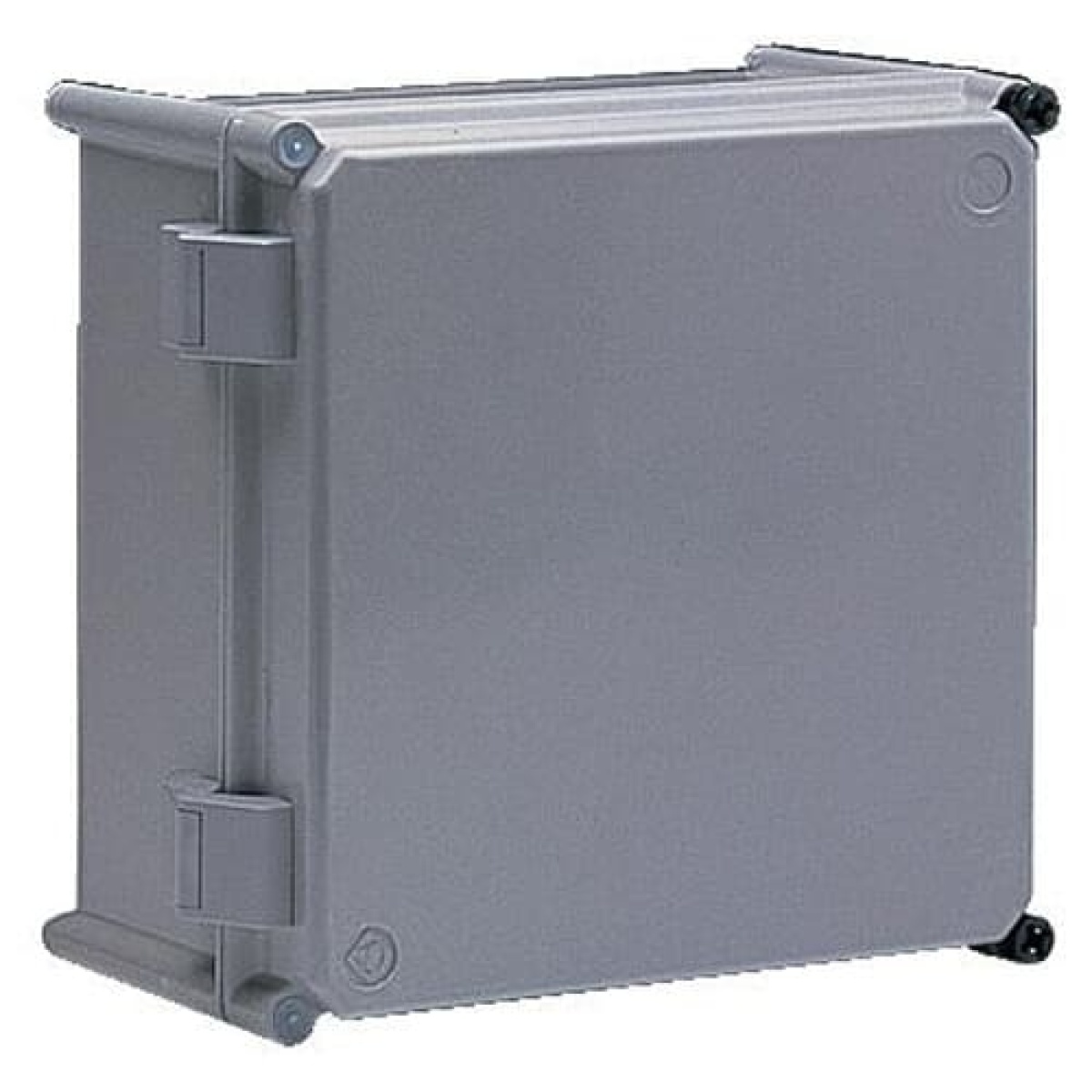

APO 12 Box hinged cover IP 55 RAL7035 ; AP12PHC
Cabinets
APO 12 Box hinged cover IP 55 RAL7035 ; AP12PHC
Manufacturer Ref:
4TBO856079C0100
Nortécnica Ref:
EAN:
5411815249143
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
II
Colour
Grey
Width
619.5
Height
175
Depth
603
RAL-number
7035
With mounting plate
No
Surface protection
Untreated
Built-in depth
140
Number of rows
-
Type of covering
Cover
Number of conduit inlets
0
Extension possible
Yes
Inner depth
120
Housing material
Plastic
Circuit integrity
None
Width in number of modular spacings
-
Suitable for outdoor use
Yes
Impact strength
IK10
Number of modules
-
Type of door
Single
Degree of protection IP
IP55
Transparent coverdoor
No
With lock
No
Suitable for lightning protection
No
Nominal current In
-
Material plate thickness cabinet
3.5
Material plate thickness doorcover
3
Cover model
Closed
Number of openings for flange plates
-
Degree of protection NEMA
12
Cover with overpressure release
-
Brands
ABB
Technical Sheet
