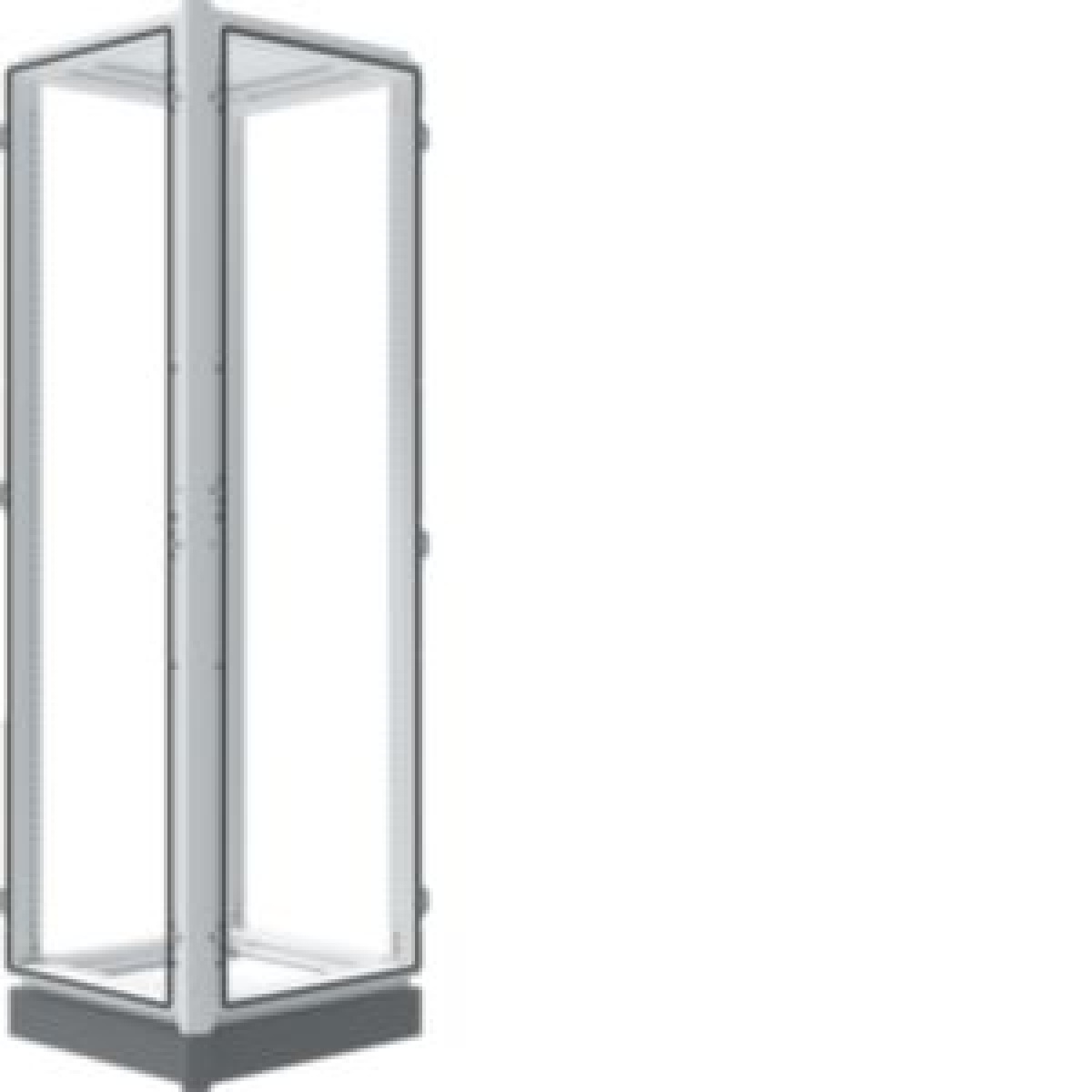

Estrutura angular a1900100 l400 p400
Cabinets
Estrutura angular a1900100 l400 p400
Manufacturer Ref:
FN004E
Nortécnica Ref:
EAN:
3250612771998
Description
Technical Information
Attributes
Mounting method
Floor installation
Protection class according to IEC 61140
I
Colour
White
Width
400
Height
1900
Depth
400
RAL-number
9010
With mounting plate
No
Surface protection
Lacquered
Built-in depth
400
Number of rows
0
Type of covering
Cover
Number of conduit inlets
0
Extension possible
Yes
Inner depth
300
Housing material
Steel
Circuit integrity
None
Width in number of modular spacings
-
Suitable for outdoor use
No
Impact strength
IK10
Number of modules
0
Type of door
None
Degree of protection IP
IP55
Transparent coverdoor
No
With lock
No
Suitable for lightning protection
No
Nominal current In
1600
Material plate thickness cabinet
1.5
Material plate thickness doorcover
2
Cover model
Closed
Number of openings for flange plates
0
Degree of protection NEMA
Other
Cover with overpressure release
No
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
