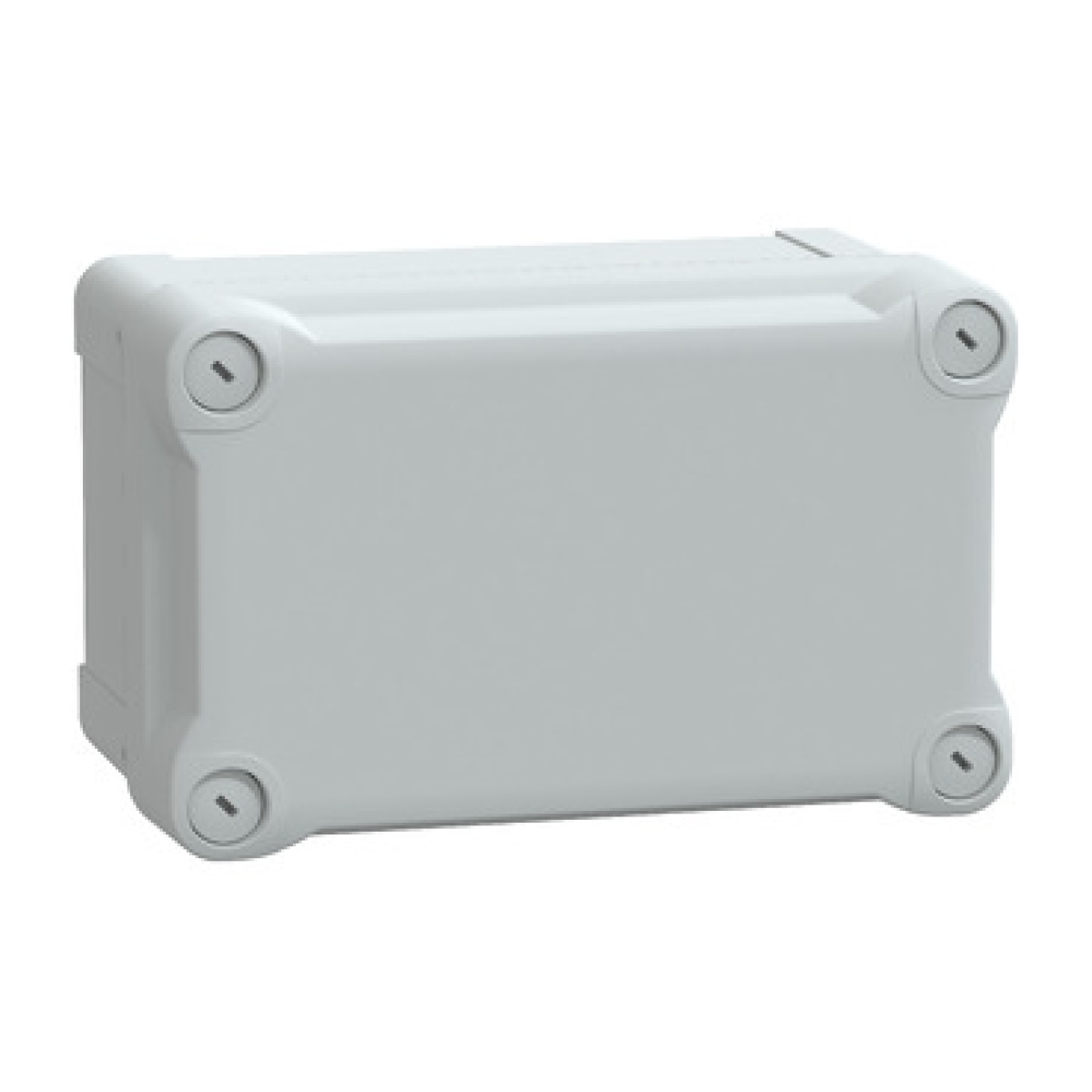

PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 opaque PC cover H40
Cabinets
PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 opaque PC cover H40
Manufacturer Ref:
NSYTBP191210H
Nortécnica Ref:
53HNSYTBP191210H
EAN:
3606480165658
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
II
Colour
Grey
Width
121
Height
192
Depth
105
RAL-number
7035
With mounting plate
No
Surface protection
Untreated
Built-in depth
-
Number of rows
-
Type of covering
Cover
Number of conduit inlets
-
Extension possible
No
Inner depth
100
Housing material
Plastic
Circuit integrity
None
Width in number of modular spacings
-
Suitable for outdoor use
Yes
Impact strength
IK08
Number of modules
-
Type of door
None
Degree of protection IP
IP66
Transparent coverdoor
No
With lock
No
Suitable for lightning protection
-
Nominal current In
-
Material plate thickness cabinet
-
Material plate thickness doorcover
-
Cover model
Closed
Number of openings for flange plates
-
Degree of protection NEMA
4X
Cover with overpressure release
-
Brands
Schneider
