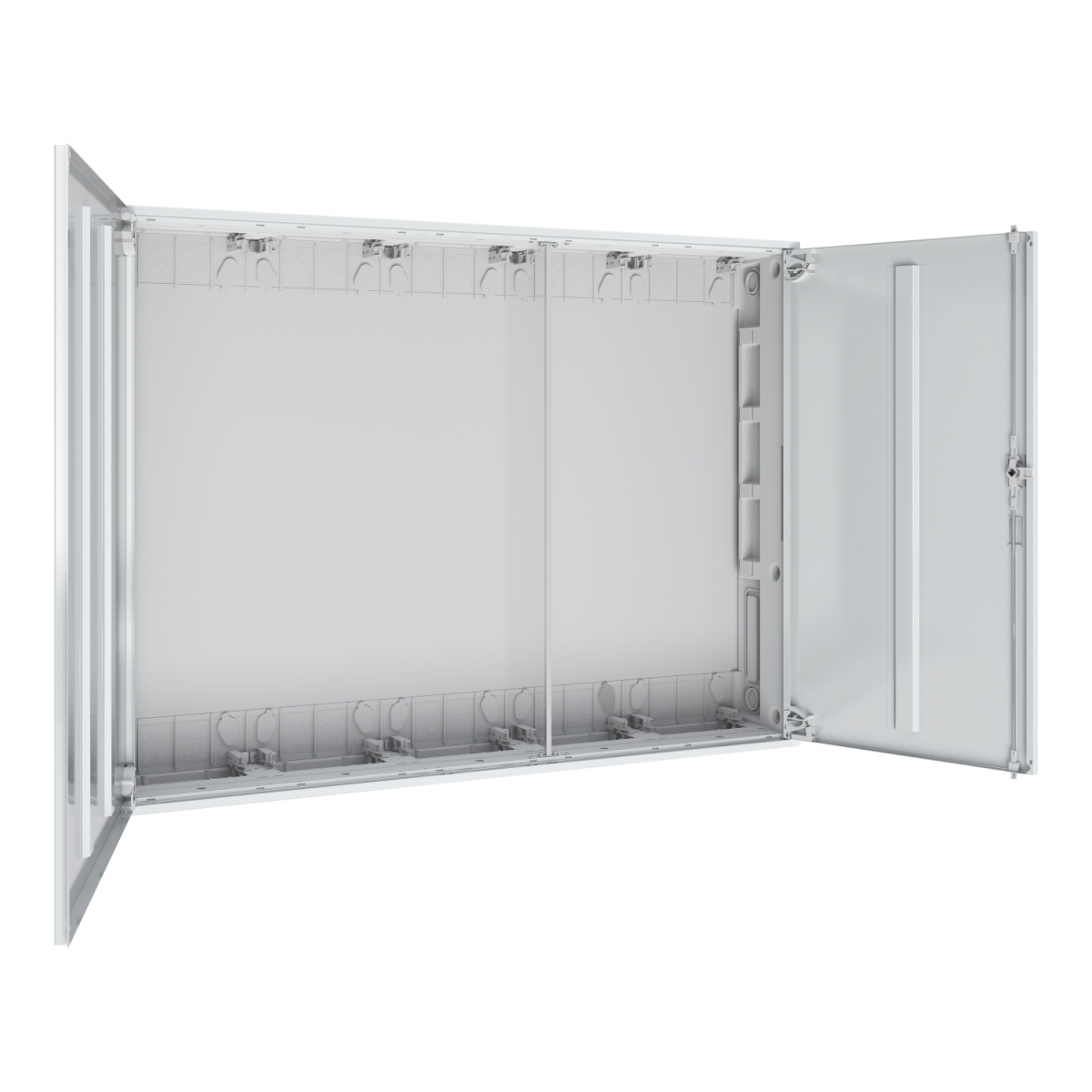

Quadro Prisma XS S 5L6A CL2 IP43 P210
Cabinets
Quadro Prisma XS S 5L6A CL2 IP43 P210
Manufacturer Ref:
SZS56
Nortécnica Ref:
EAN:
4015153763135
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
II
Colour
White
Largura
1300
Altura
950
Profundidade
210
RAL-number
9016
With mounting plate
No
Surface protection
Powder coating
Built-in depth
190
Number of rows
30
Type of covering
Door
Number of conduit inlets
400
Extension possible
Yes
Inner depth
200
Housing material
EV002755
Integridade do circuito
None
Largura em número de módulos
60
Suitable for outdoor use
No
Impact strength
IK09
Number of modules
360
Type of door
Double
Degree of protection IP
IP43
Transparent coverdoor
No
With lock
No
Suitable for lightning protection
Yes
Nominal current In
400
Material plate thickness cabinet
1.5
Material plate thickness doorcover
2
Cover model
Closed
Number of openings for flange plates
10
Degree of protection NEMA
Other
Cover with overpressure release
No
Brands
Schneider
Technical Sheet
