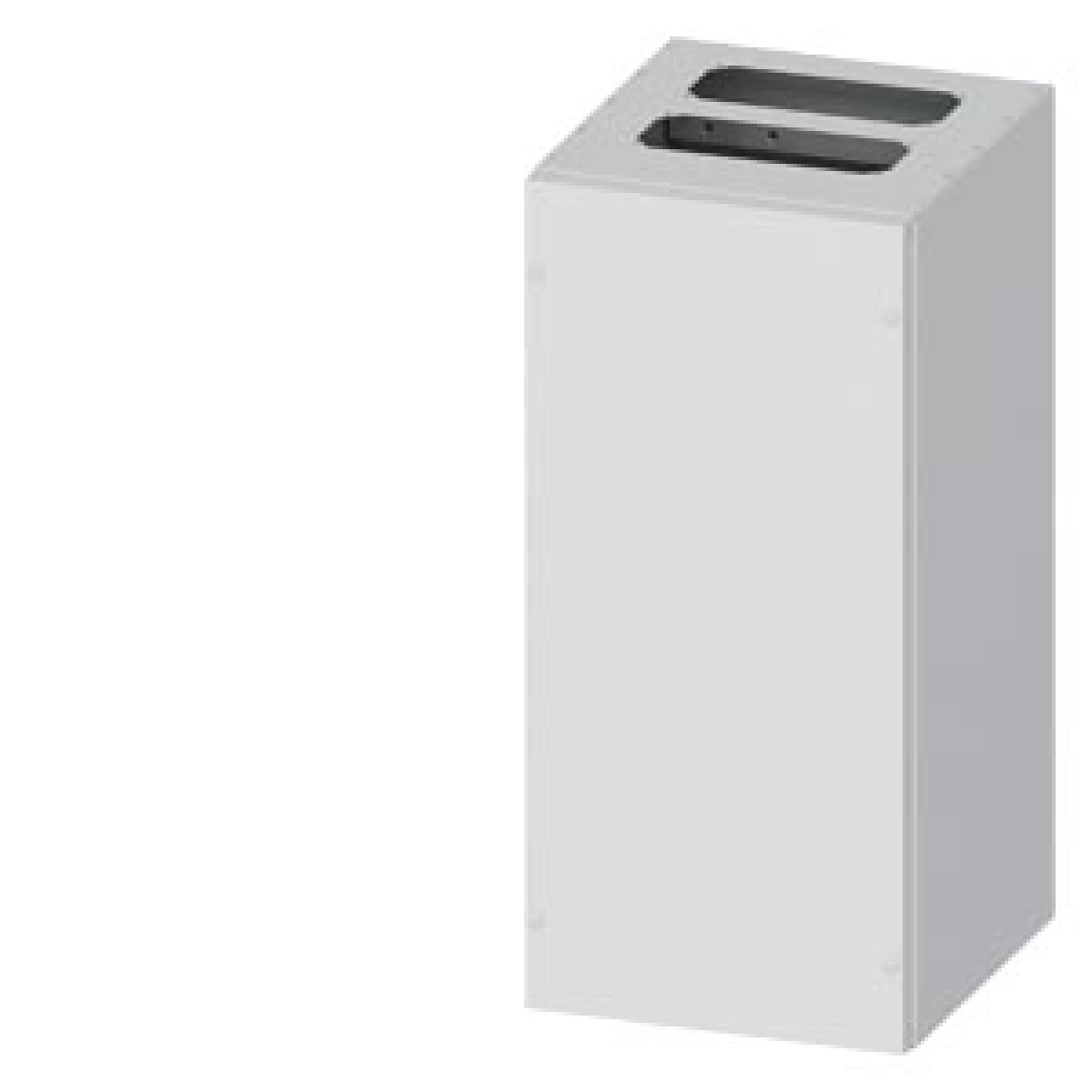

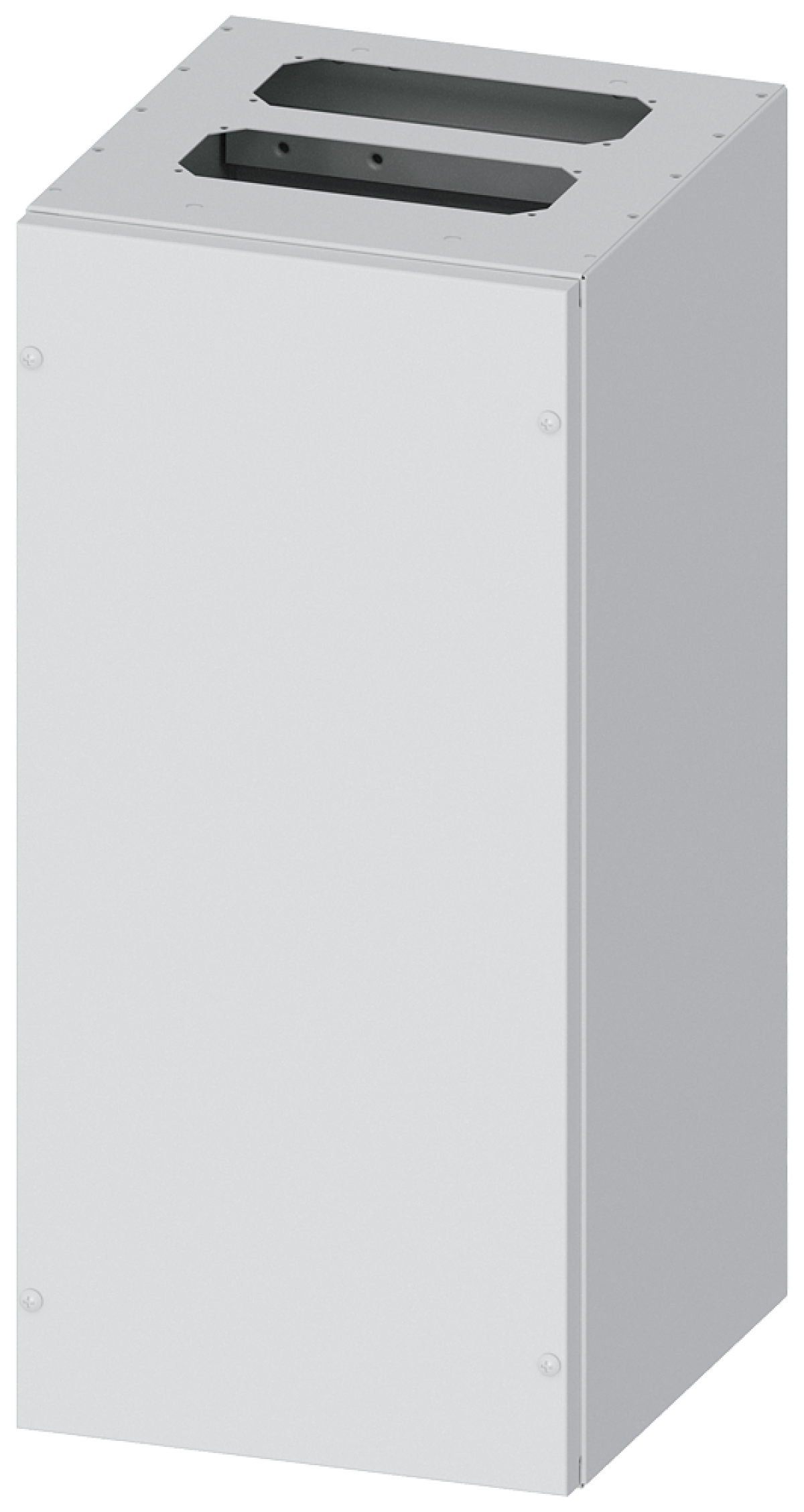

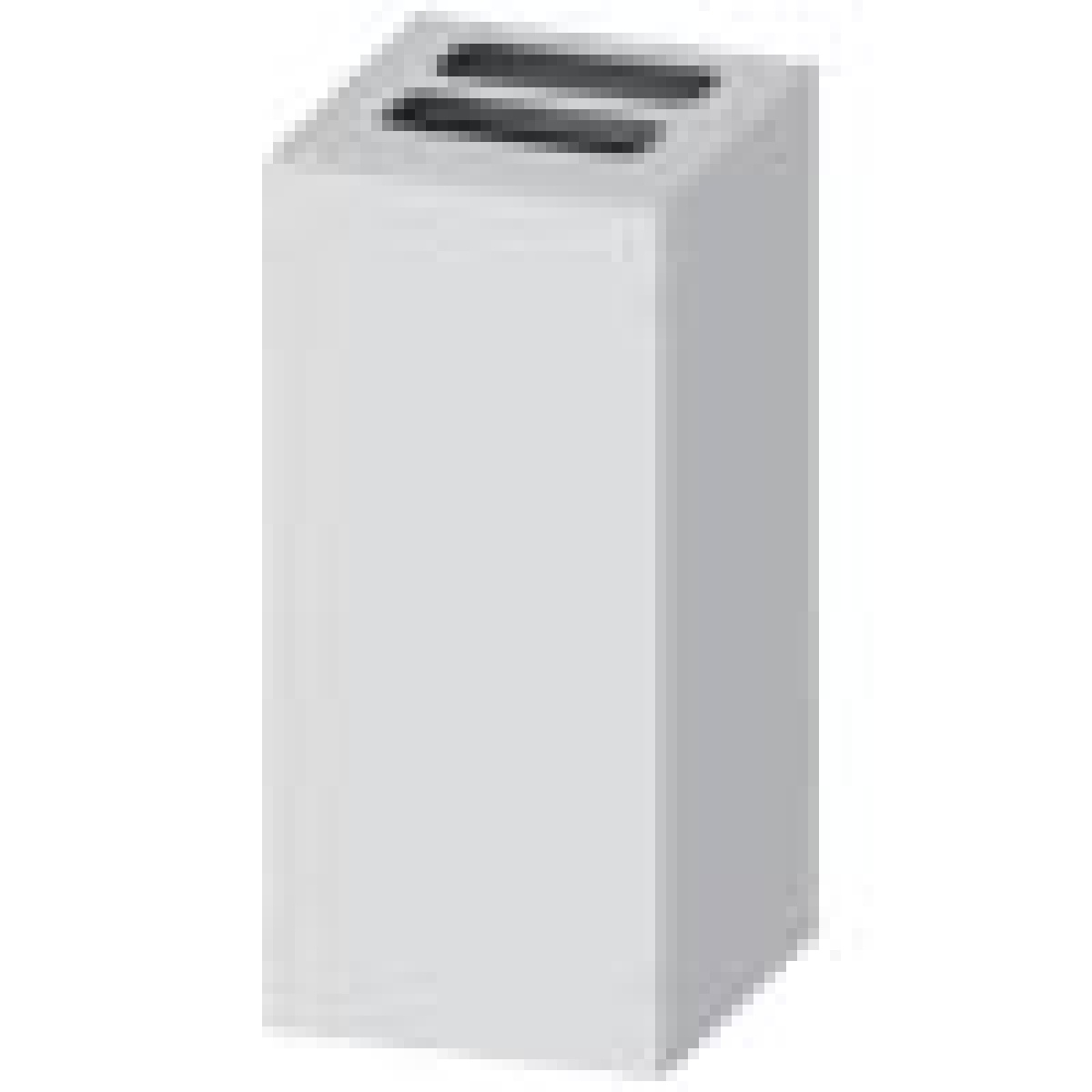

SK1 marshaling box IP55 H650 W300 D320 screwed front plate
Cabinets
SK1 marshaling box IP55 H650 W300 D320 screwed front plate
Manufacturer Ref:
8GK13832KK14
Nortécnica Ref:
EAN:
4001869565965
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
-
Colour
Grey
Largura
300
Altura
650
Profundidade
320
Número RAL
7035
With mounting plate
No
Surface protection
Powder coating
Built-in depth
320
Number of rows
-
Type of covering
Optional
Number of conduit inlets
-
Extension possible
Yes
Inner depth
-
Housing material
Steel
Integridade do circuito
None
Largura em número de módulos
-
Suitable for outdoor use
No
Impact strength
IK09
Number of modules
-
Type of door
Single
Degree of protection IP
IP55
Transparent coverdoor
Yes
With lock
No
Suitable for lightning protection
-
Nominal current In
630
Material plate thickness cabinet
-
Material plate thickness doorcover
0.75
Cover model
Closed
Number of openings for flange plates
2
Degree of protection NEMA
Other
Cover with overpressure release
-
Brands
Siemens AG
Technical Sheet
