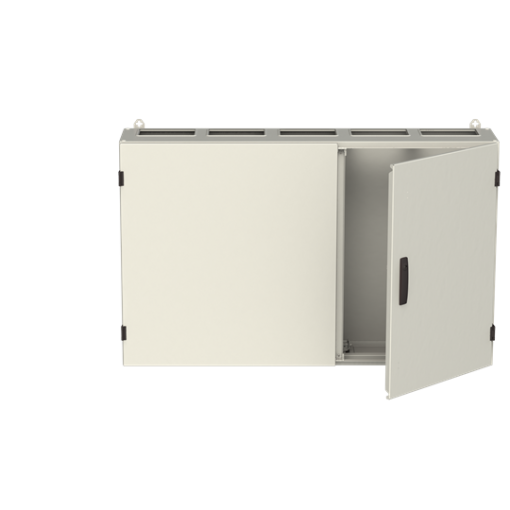

Wall-mounting cabinet, Rows 5, 800 mm x 1300 mm x 275 mm, Isolated Class II, IP55
Cabinets
Wall-mounting cabinet, Rows 5, 800 mm x 1300 mm x 275 mm, Isolated Class II, IP55
Manufacturer Ref:
2CPX010114R9999
Nortécnica Ref:
EAN:
4011617101147
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
II
Colour
Grey
Largura
1300
Altura
800
Profundidade
275
RAL-number
7035
With mounting plate
No
Surface protection
Powder coating
Profundidade incorporada
222.5
Number of rows
5
Type of covering
None
Number of conduit inlets
260
Extension possible
Yes
Inner depth
272
Housing material
EV002755
Circuit integrity
None
Width in number of modular spacings
60
Suitable for outdoor use
No
Impact strength
IK08
Number of modules
300
Type of door
Double
Degree of protection IP
IP55
Transparent coverdoor
No
With lock
Yes
Suitable for lightning protection
No
Nominal current In
-
Material plate thickness cabinet
1
Material plate thickness doorcover
1.5
Cover model
With notch
Number of openings for flange plates
5
Degree of protection NEMA
-
Cover with overpressure release
No
Brands
ABB
