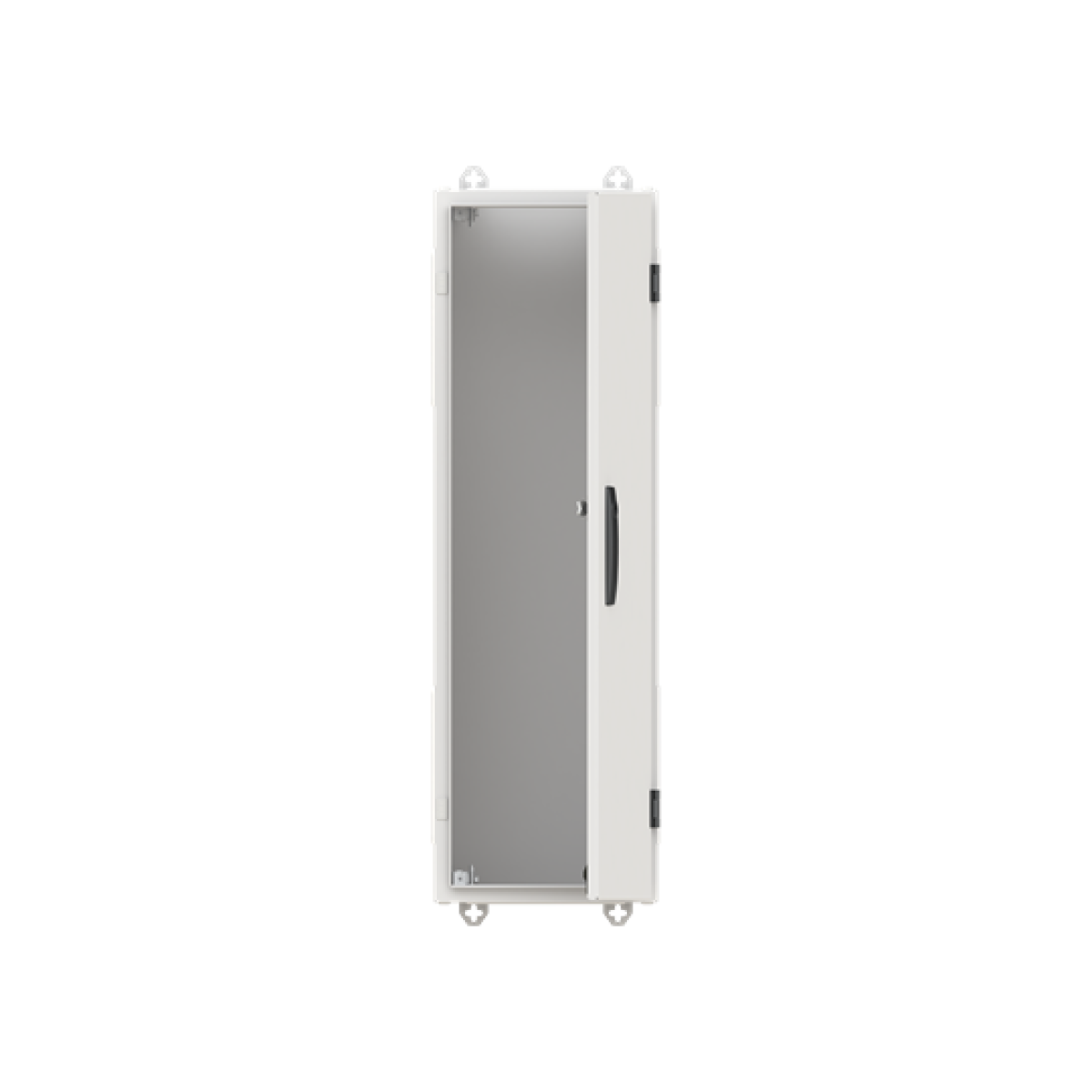

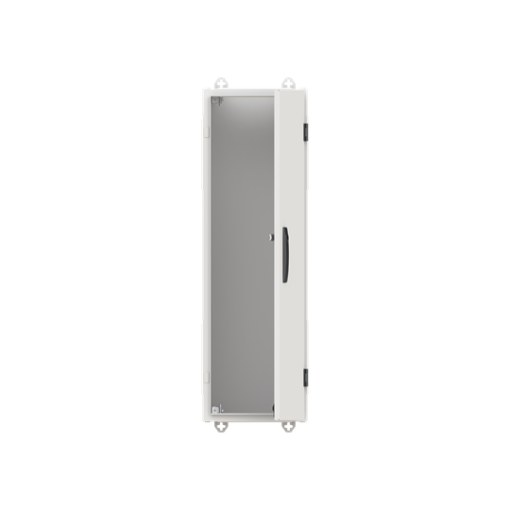

Wallmounting cabinet Rows 6 950 mm x 300 mm x 275 mm Grounded Class I IP55
Cabinets
Wallmounting cabinet Rows 6 950 mm x 300 mm x 275 mm Grounded Class I IP55
Manufacturer Ref:
2CPX010080R9999
Nortécnica Ref:
27TL106G
EAN:
4011617100805
Description
Technical Information
Attributes
Mounting method
Surface mounted
EF000004
I
Colour
Grey
Width
300
Height
950
Depth
275
RAL-number
7035
With mounting plate
No
Surface protection
Powder coating
Built-in depth
222.5
Number of rows
6
Type of covering
None
Number of conduit inlets
52
Extension possible
Yes
Inner depth
272
Housing material
EV002755
Circuit integrity
None
Width in number of modular spacings
12
Suitable for outdoor use
No
Impact strength
IK08
Number of modules
72
Type of door
Single
Degree of protection IP
IP55
Transparent coverdoor
No
With lock
Yes
Suitable for lightning protection
No
Nominal current In
-
Material plate thickness cabinet
1
Material plate thickness doorcover
1.5
Cover model
With notch
Number of openings for flange plates
1
Degree of protection NEMA
-
Cover with overpressure release
No
Brands
ABB
