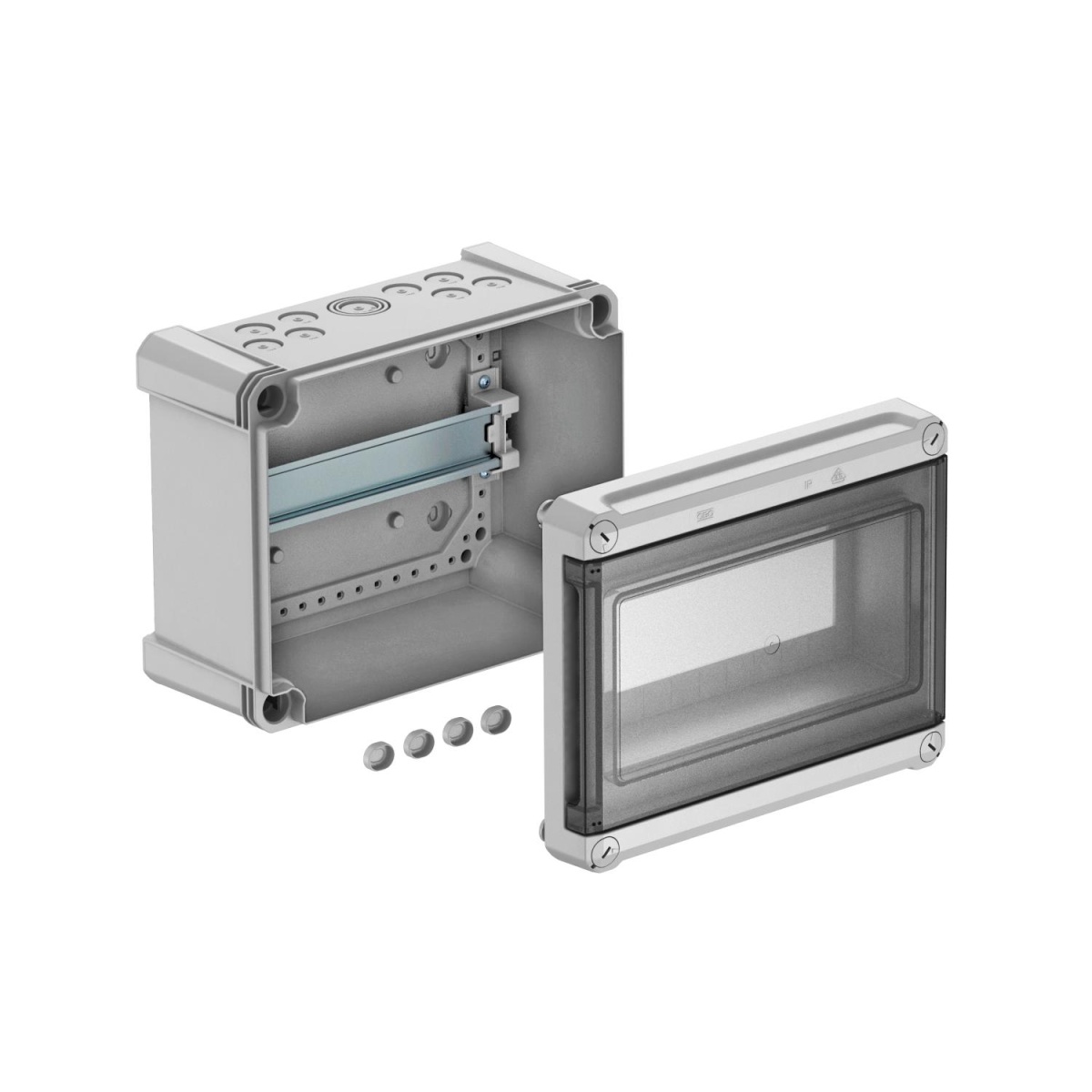

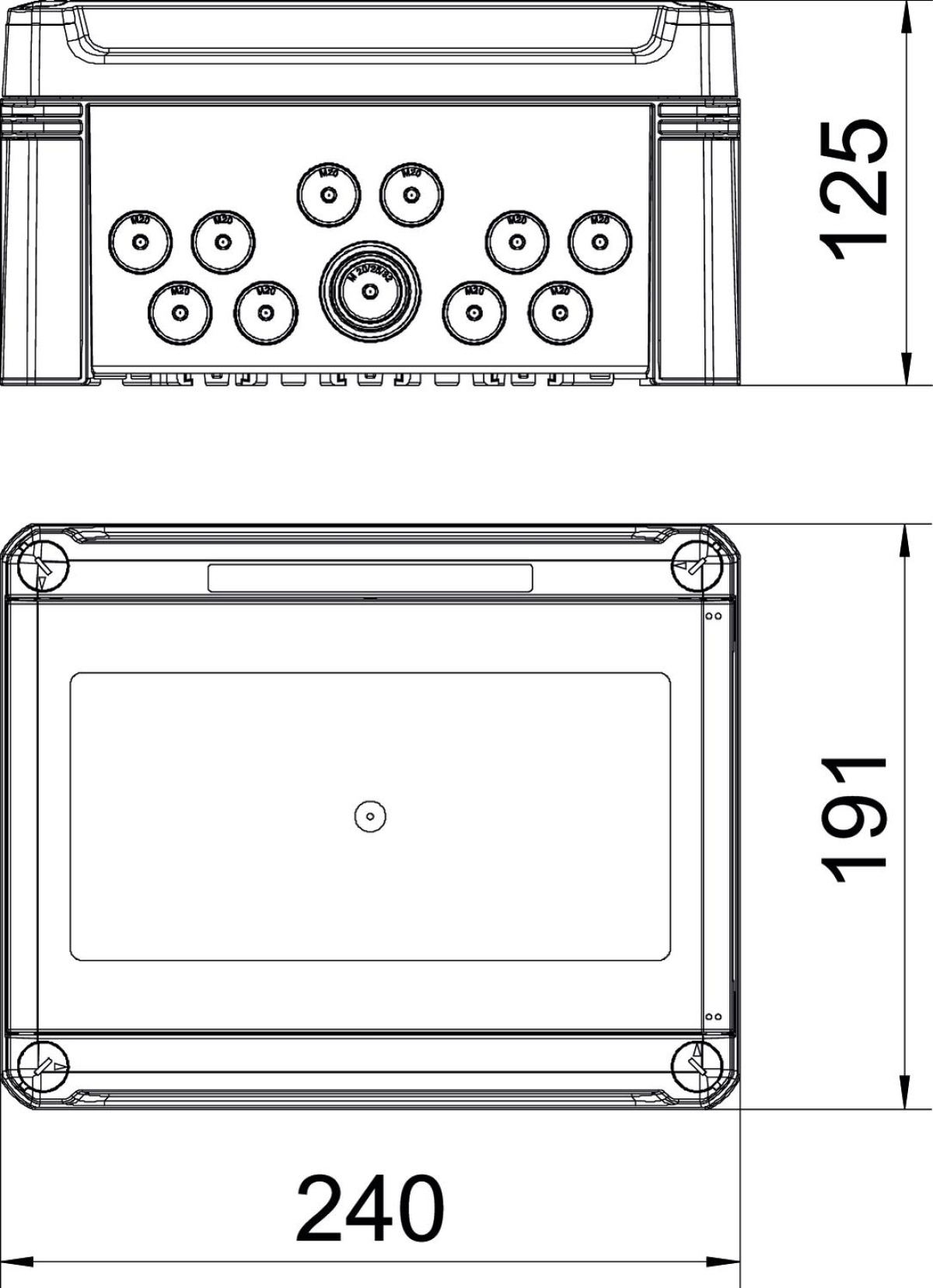

Quadro de distribuição sem bornes, para 9 módulos 240x191x125 Policarbonato cinzento claro RAL 7035
Modular Panels
Quadro de distribuição sem bornes, para 9 módulos 240x191x125 Policarbonato cinzento claro RAL 7035
Manufacturer Ref:
2008868
Nortécnica Ref:
EAN:
4012196465804
Description
Technical Information
Attributes
Mounting method
-
Colour
Grey
Width
191
EF000024
-
Height
126
Depth
126
RAL-number
7035
With mounting plate
No
Built-in depth
-
Number of rows
1
Built-in height
-
Type of covering
Cover
Built-in width
-
EMC-version
No
Extension possible
Yes
Inner depth
-
DIN-rail
Yes
Housing material
Plastic
Width in number of modular spacings
9
Type of closure
-
Type of door
-
EF005474
IP66
Transparent coverdoor
Yes
With lock
No
Cover model
-
Earthing terminal block
-
Neutral terminal block
-
Signal passing door
-
Brands
OBO
Technical Sheet
