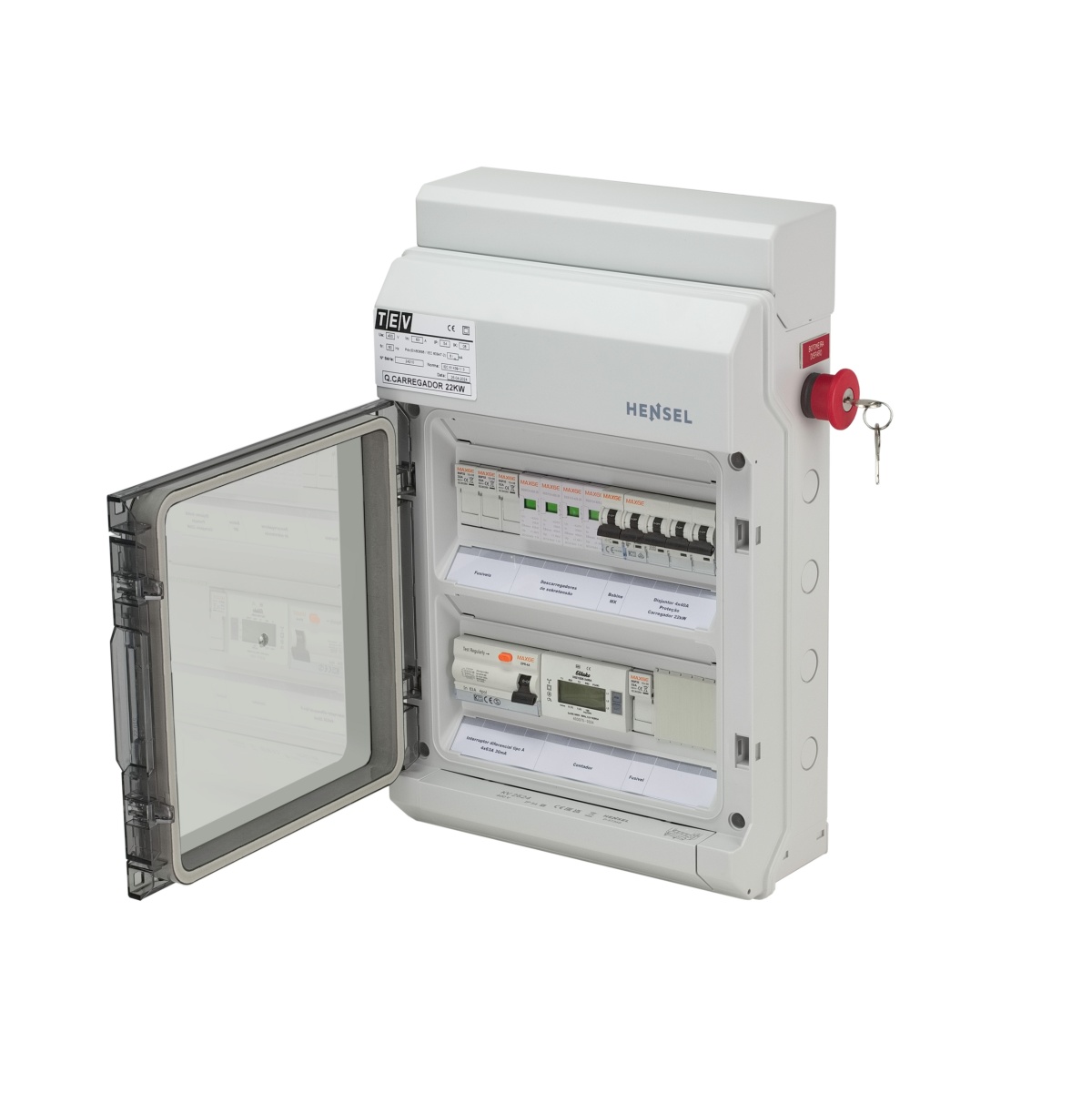

Quadro Trifásico para WallBox 22kW
Modular Panels
Quadro Trifásico para WallBox 22kW
Manufacturer Ref:
Z-WT2624
Nortécnica Ref:
EAN:
5607353179527
Description
Technical Information
Attributes
Mounting method
Surface mounted

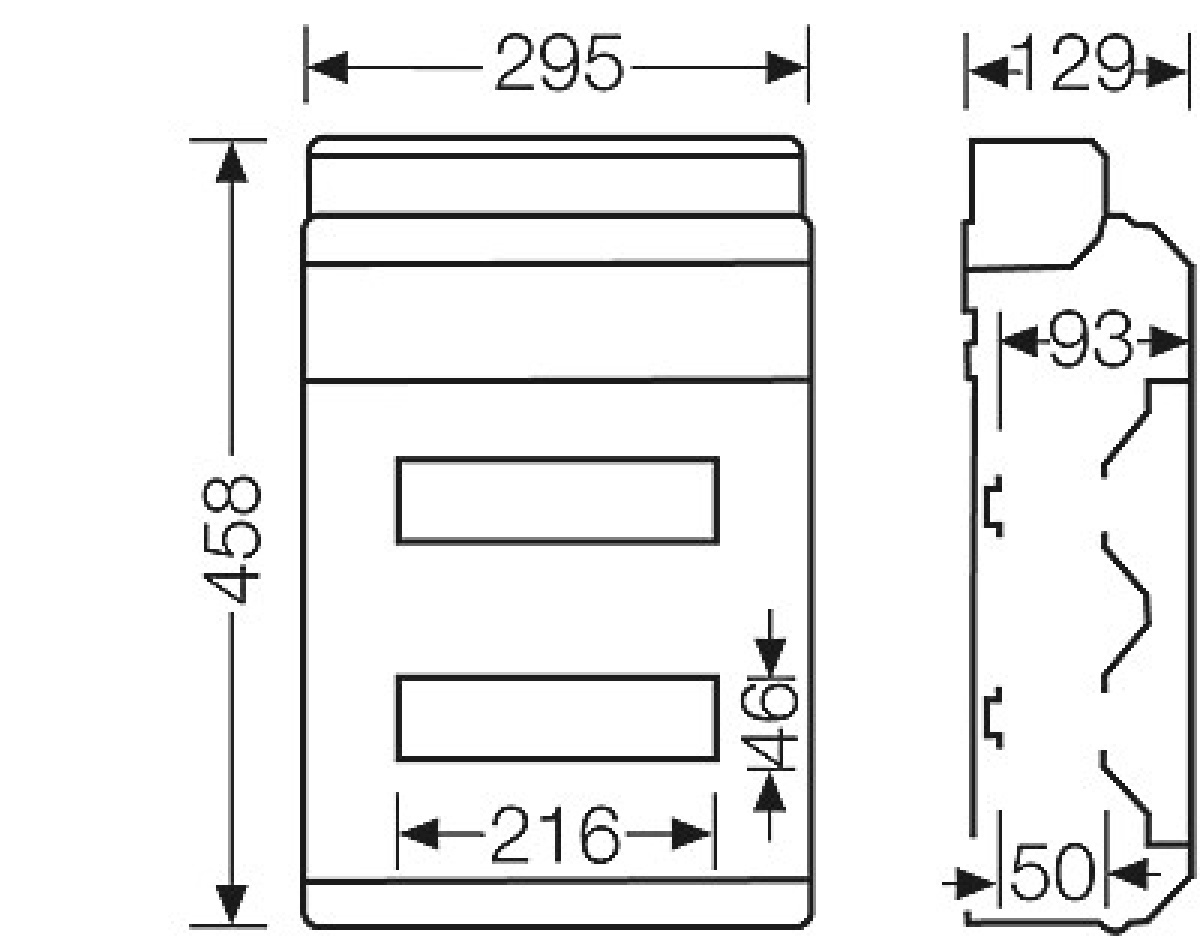

Width
295
Height
458
Depth
129
Lockable
Yes
EF000289
No
Number of phases
3
Protection
Miniature-/earth leakage circuit breaker
Extension possible
Yes
With transparent cover
Yes
Overvoltage protection
Yes
Housing material
Plastic
Width in number of modular spacings
12
Built-in depth
-
-
Degree of protection IP
IP54
Number of earth leakage circuit breakers
1
Number of earth leakage switches 300 mA
0
Number of earth leakage switches 30 mA
1
Number of direct groups
1
Number of groups behind earth leakage switch
1
Number of light groups
0
Number of poles main switch
4
With bell transformer
No
Cooker group
None
Cooker group suitable as power current group
No
Total number of groups
1
Main switch rated current
63
Suitable for data
No
Protection main switch
Yes
Protection incoming RCD
Yes
Protection high integrity
No
Protection split load
No
Protection dual RCD
No
Number of outgoing ways
1
Number of arc fault detection devices AFDD
0
Type of overvoltage protection device
Type 2
With meter
Yes
Brands
TEV2 Dist Mat Electrico Lda
