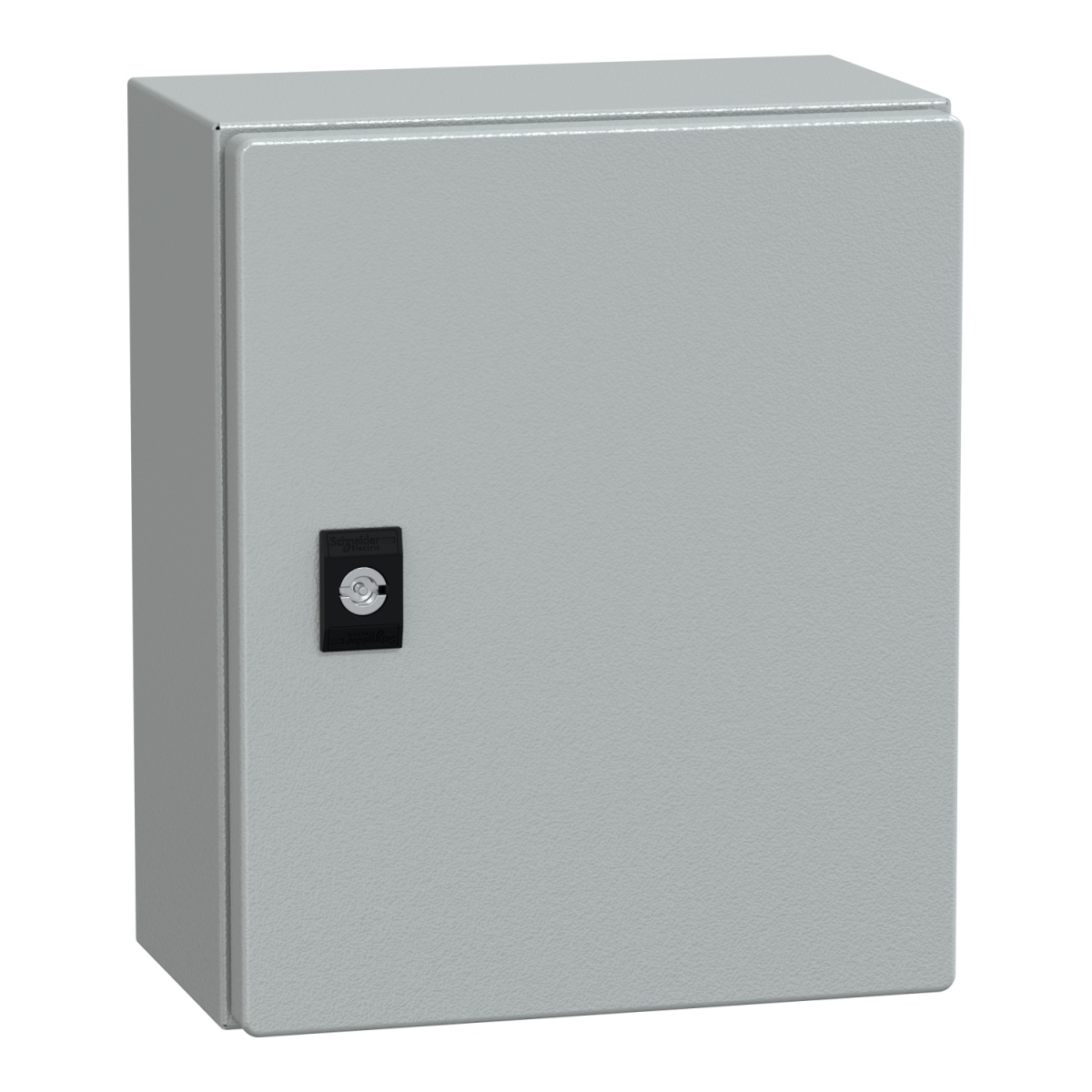

Spacial CRN plain door with mount.plate. H300xW250xD150 IP66 IK10 RAL7035..
Modular Panels
Spacial CRN plain door with mount.plate. H300xW250xD150 IP66 IK10 RAL7035..
Manufacturer Ref:
NSYCRN325150P
Nortécnica Ref:
53HNSYCRN325150P
EAN:
3606480212604
Description
Technical Information
Attributes
Colour
Grey
Largura
250
Altura
300
Profundidade
150
RAL-number
7035
With mounting plate
Yes
Number of doors
1
Number of locks
1
Suitable for wall mounting
Yes
Pre-stamping
No
EMC-version
No
With glazed door
No
Couplable
No
Material quality
Other
Material
Steel
Impact strength
IK10
Degree of protection IP
IP66
Number of connector holes
0
EF005774
No
Suitable for metrical mounting
No
Mounting plate depth-adjustable
No
With ventilation door
No
Surface finishing
Powder coating
With rear door
No
Suitable for wall built-in
No
With cover
No
With door
Yes
Pitched roof
No
Pole fastening
Yes
Transparent cover
No
Degree of protection NEMA
Other
Thermal dissipation Delta T 20 K according to IECTR 60890
-
Max. permitted load of the enclosure according to IEC 62208
725
Max. permitted load of the doors according to IEC 62208
37.5
Max. permitted load of the mounting plate according to IEC 62208
187.5
Floor standing wall model
No
Freestanding
No
Corner model
No
Intermediate mounting
No
Brands
Schneider
Technical Sheet
