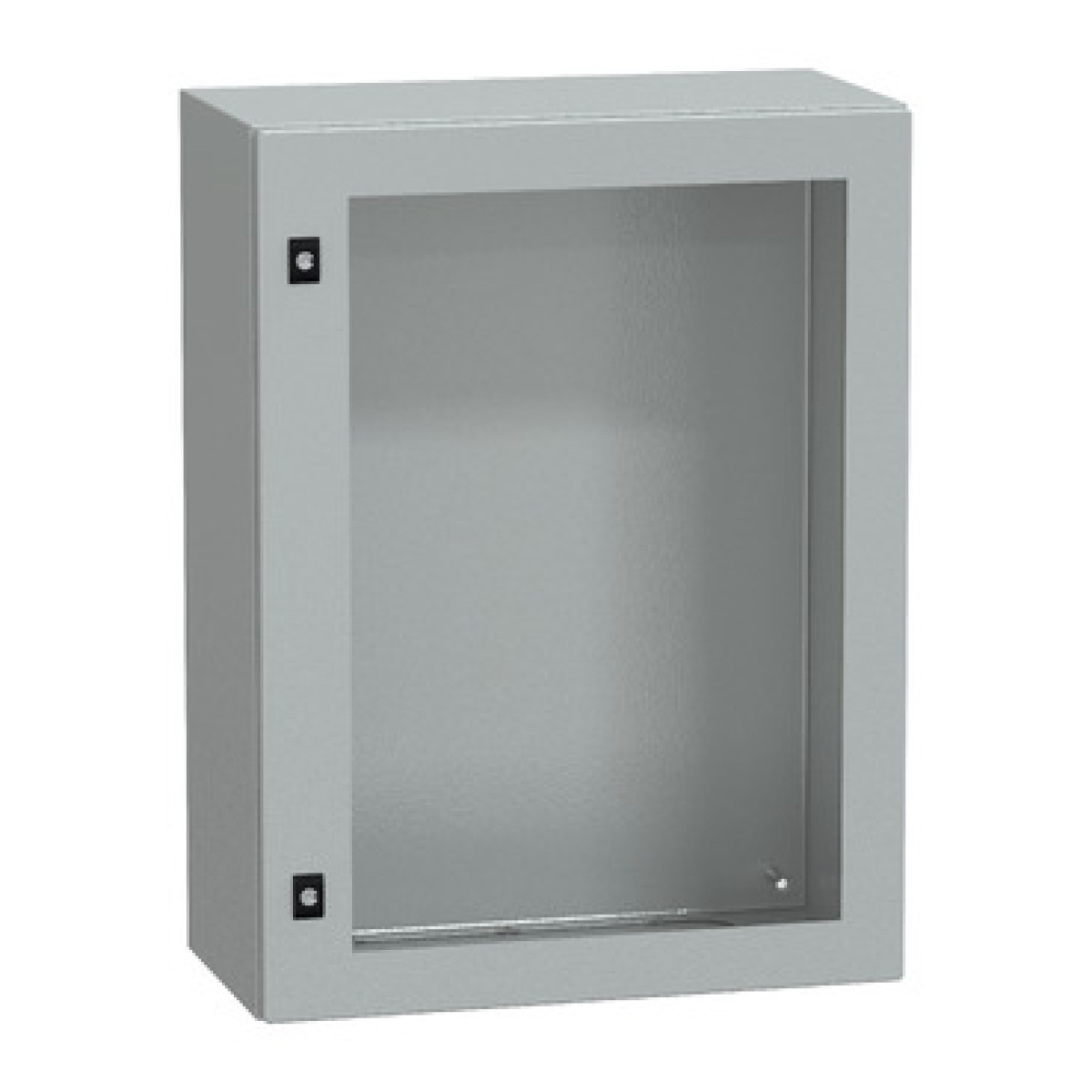

Spacial CRN tspt door wo mount.plate. H800xW600xD300 IP66 IK08 RAL7035..
Modular Panels
Spacial CRN tspt door wo mount.plate. H800xW600xD300 IP66 IK08 RAL7035..
Manufacturer Ref:
NSYCRN86300T
Nortécnica Ref:
53HNSYCRN86300T
EAN:
3606480211775
Description
Technical Information
Attributes
Colour
Grey
Largura
600
Altura
800
Profundidade
300
Número RAL
7035
With mounting plate
No
Number of doors
1
Number of locks
1
Suitable for wall mounting
Yes
Pre-stamping
No
EMC-version
No
With glazed door
Yes
Couplable
No
Material quality
Other
Material
Steel
Impact strength
IK08
Degree of protection IP
IP66
Number of connector holes
0
EF005774
No
Suitable for metrical mounting
No
Mounting plate depth-adjustable
No
With ventilation door
No
Surface finishing
Powder coating
With rear door
No
Suitable for wall built-in
No
With cover
No
With door
Yes
Pitched roof
No
Pole fastening
Yes
Transparent cover
No
Degree of protection NEMA
Other
Thermal dissipation Delta T 20 K according to IECTR 60890
-
Max. permitted load of the enclosure according to IEC 62208
1700
Max. permitted load of the doors according to IEC 62208
0
Max. permitted load of the mounting plate according to IEC 62208
1200
Floor standing wall model
No
Freestanding
No
Corner model
No
Intermediate mounting
No
Brands
Schneider
Technical Sheet
