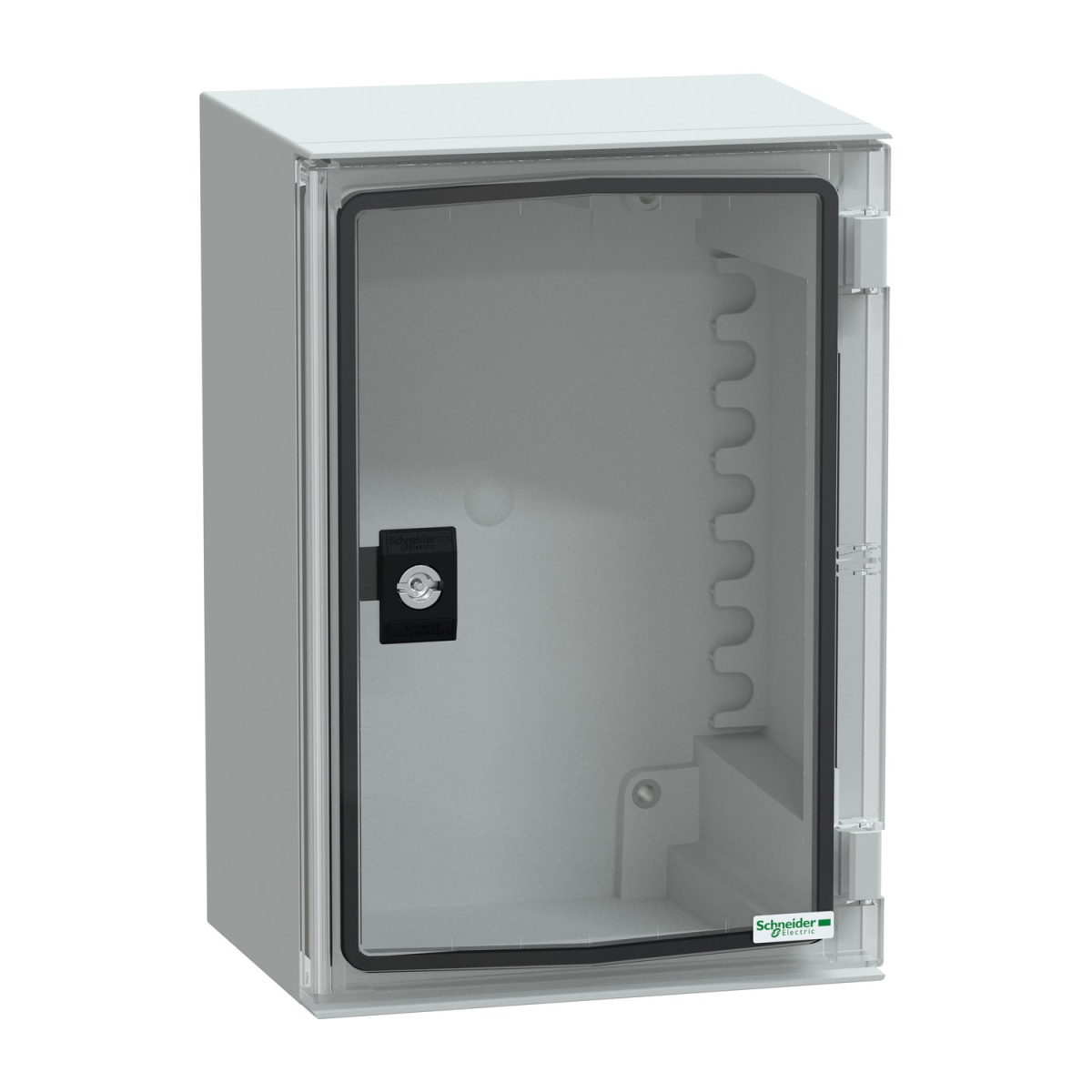

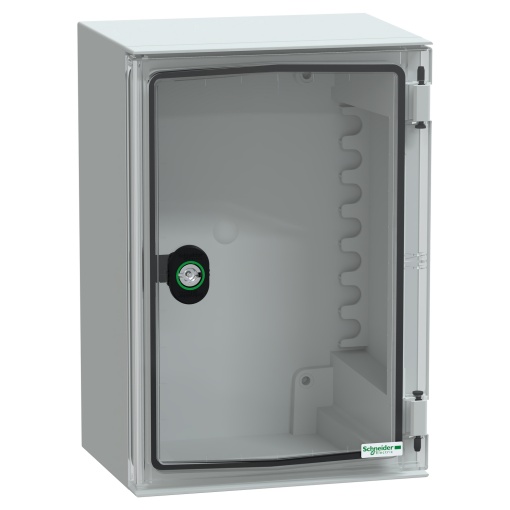

wall-mounting encl. ABSPC monobloc IP66 H310xW215xD160mm transparent door
Modular Panels
wall-mounting encl. ABSPC monobloc IP66 H310xW215xD160mm transparent door
Manufacturer Ref:
NSYPLM32TG
Nortécnica Ref:
53NSYPLM32TG
EAN:
3606480776502
Description
Technical Information
Attributes
Colour
Grey
Width
215
Height
310
Depth
160
RAL-number
7035
With mounting plate
No
Number of doors
1
Number of locks
1
Suitable for wall mounting
Yes
Pre-stamping
No
EMC-version
No
With glazed door
Yes
Couplable
No
Material quality
Other
Material
Plastic
Impact strength
IK08
Degree of protection IP
IP66
Number of connector holes
0
EF005774
Yes
Suitable for metrical mounting
-
Mounting plate depth-adjustable
Yes
With ventilation door
No
Surface finishing
Untreated
With rear door
No
Suitable for wall built-in
Yes
With cover
No
With door
Yes
Pitched roof
No
Pole fastening
Yes
Transparent cover
No
Degree of protection NEMA
4X
Thermal dissipation Delta T 20 K according to IECTR 60890
-
Max. permitted load of the enclosure according to IEC 62208
94
Max. permitted load of the doors according to IEC 62208
-
Max. permitted load of the mounting plate according to IEC 62208
55
Floor standing wall model
-
Freestanding
No
Corner model
No
Intermediate mounting
No
Brands
Schneider
Technical Sheet
