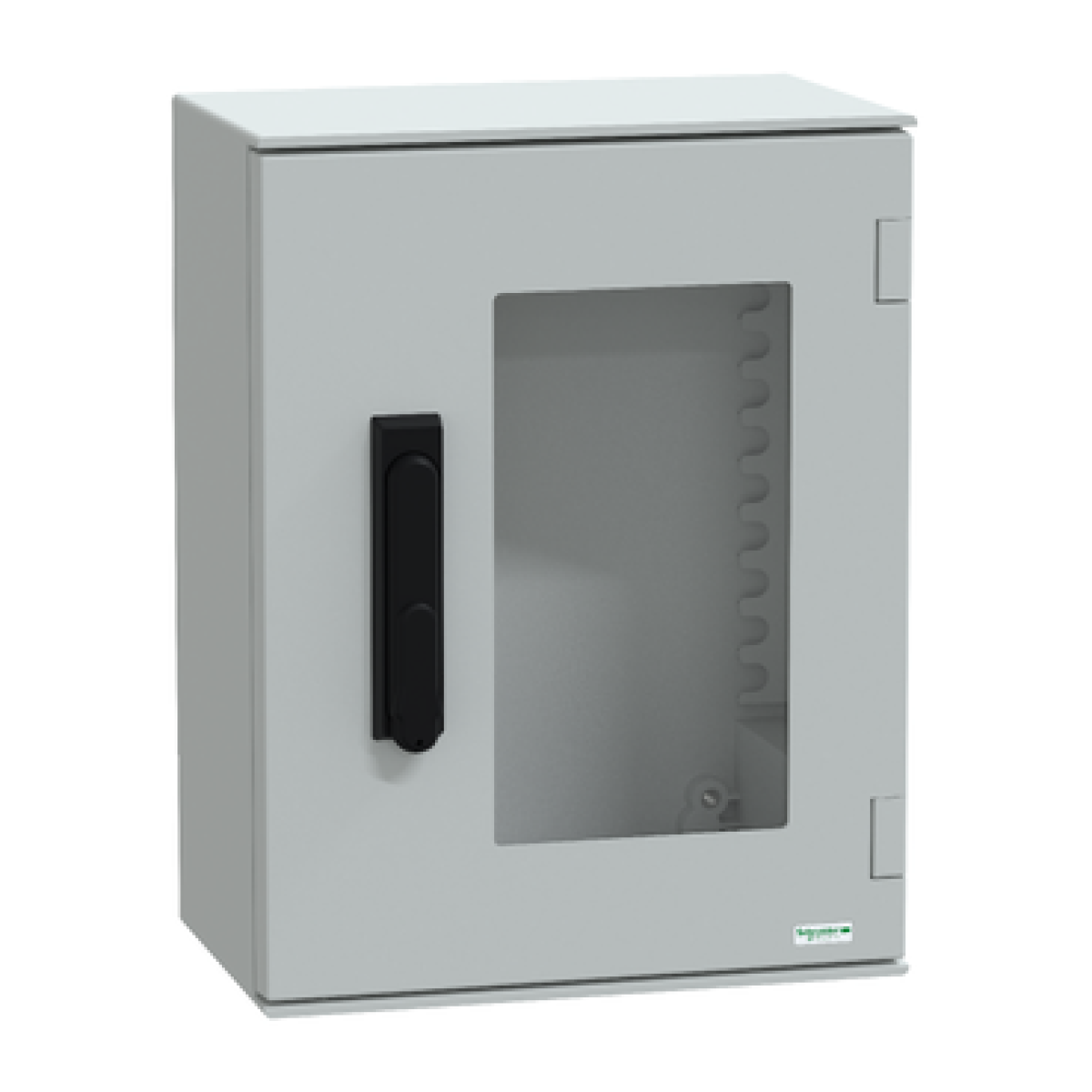

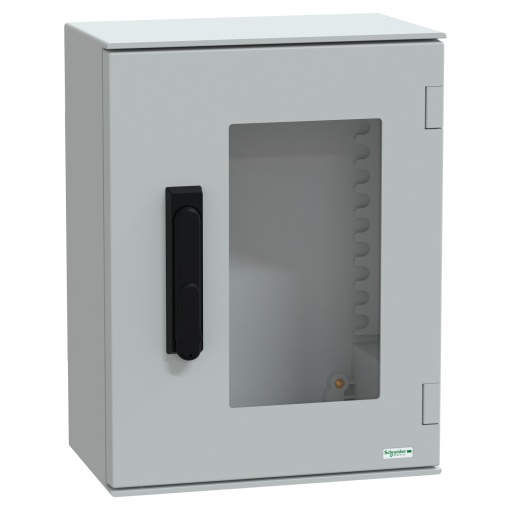

wall-mounting encl. polyester monobloc IP66 430x330x200mm 3p.lock glazed door
Modular Panels
wall-mounting encl. polyester monobloc IP66 430x330x200mm 3p.lock glazed door
Manufacturer Ref:
NSYPLM43TVG
Nortécnica Ref:
EAN:
3606480776557
Description
Technical Information
Attributes
Colour
Grey
Width
330
Height
430
Depth
200
RAL-number
7035
With mounting plate
No
Number of doors
1
Number of locks
2
Suitable for wall mounting
Yes
Pre-stamping
No
EMC-version
No
With glazed door
Yes
Couplable
No
Material quality
Polyester
Material
Plastic
Impact strength
IK08
Degree of protection IP
IP66
Number of connector holes
0
EF005774
Yes
Suitable for metrical mounting
-
Mounting plate depth-adjustable
Yes
With ventilation door
No
Surface finishing
Untreated
With rear door
No
Suitable for wall built-in
Yes
With cover
No
With door
Yes
Pitched roof
No
Pole fastening
Yes
Transparent cover
No
Degree of protection NEMA
4X
Thermal dissipation Delta T 20 K according to IECTR 60890
-
Max. permitted load of the enclosure according to IEC 62208
178
Max. permitted load of the doors according to IEC 62208
-
Max. permitted load of the mounting plate according to IEC 62208
129
Floor standing wall model
-
Freestanding
No
Corner model
No
Intermediate mounting
No
Brands
Schneider
