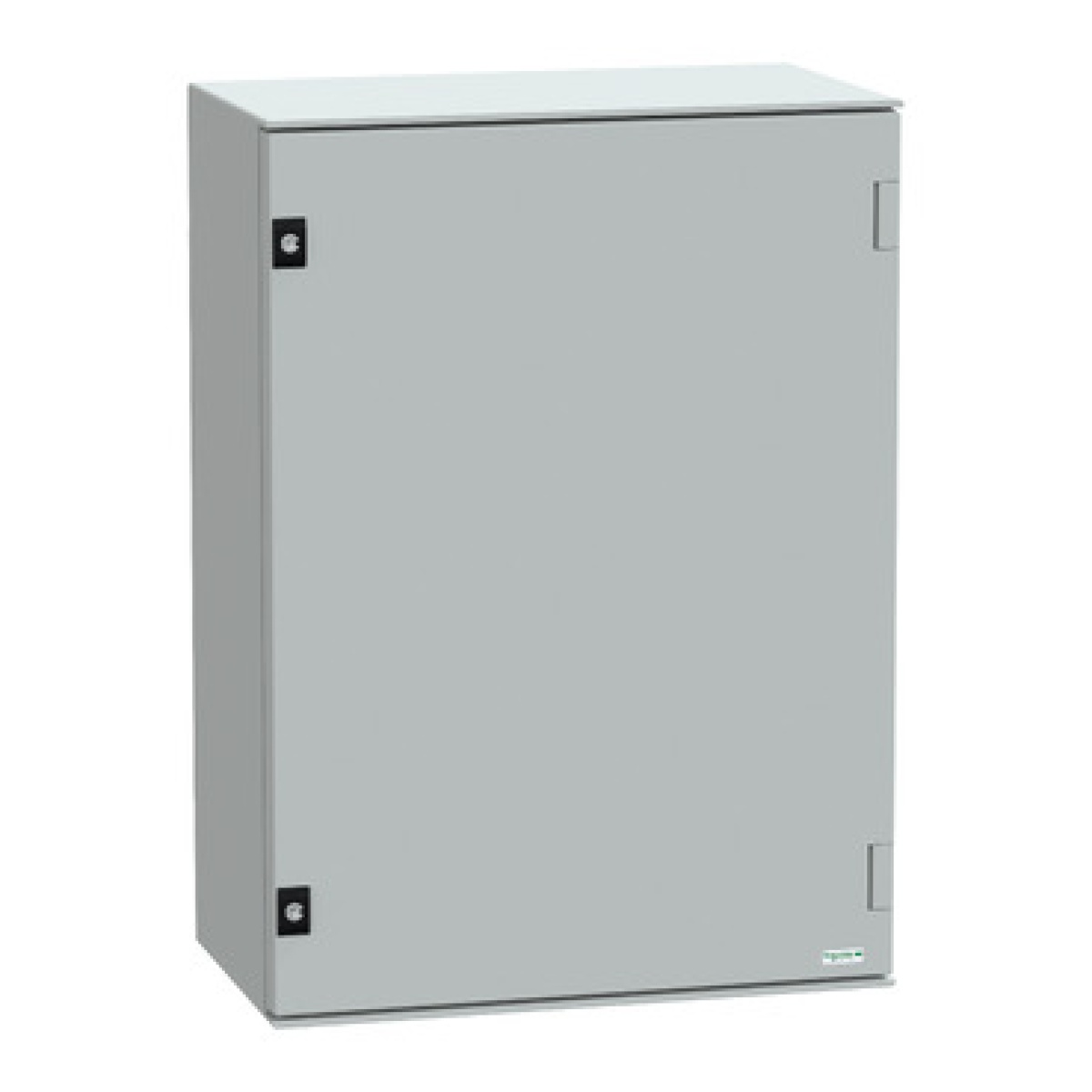

wall-mounting encl. polyester monobloc IP66 H747xW536xD300mmbakelite mount.pl.
Modular Panels
wall-mounting encl. polyester monobloc IP66 H747xW536xD300mmbakelite mount.pl.
Manufacturer Ref:
NSYPLM75BG
Nortécnica Ref:
53NSYPLM75BG
EAN:
3606480776700
Description
Technical Information
Attributes
Colour
Grey
Width
536
Height
747
Depth
300
RAL-number
7035
With mounting plate
Yes
Number of doors
1
Number of locks
2
Suitable for wall mounting
Yes
Pre-stamping
No
EMC-version
No
With glazed door
No
Couplable
No
Material quality
Polyester
Material
Plastic
Impact strength
IK10
Degree of protection IP
IP66
Number of connector holes
0
EF005774
Yes
Suitable for metrical mounting
-
Mounting plate depth-adjustable
Yes
With ventilation door
No
Surface finishing
Untreated
With rear door
No
Suitable for wall built-in
Yes
With cover
No
With door
Yes
Pitched roof
No
Pole fastening
Yes
Transparent cover
No
Degree of protection NEMA
4X
Thermal dissipation Delta T 20 K according to IECTR 60890
-
Max. permitted load of the enclosure according to IEC 62208
706
Max. permitted load of the doors according to IEC 62208
143
Max. permitted load of the mounting plate according to IEC 62208
430
Floor standing wall model
-
Freestanding
No
Corner model
No
Intermediate mounting
No
Brands
Schneider
