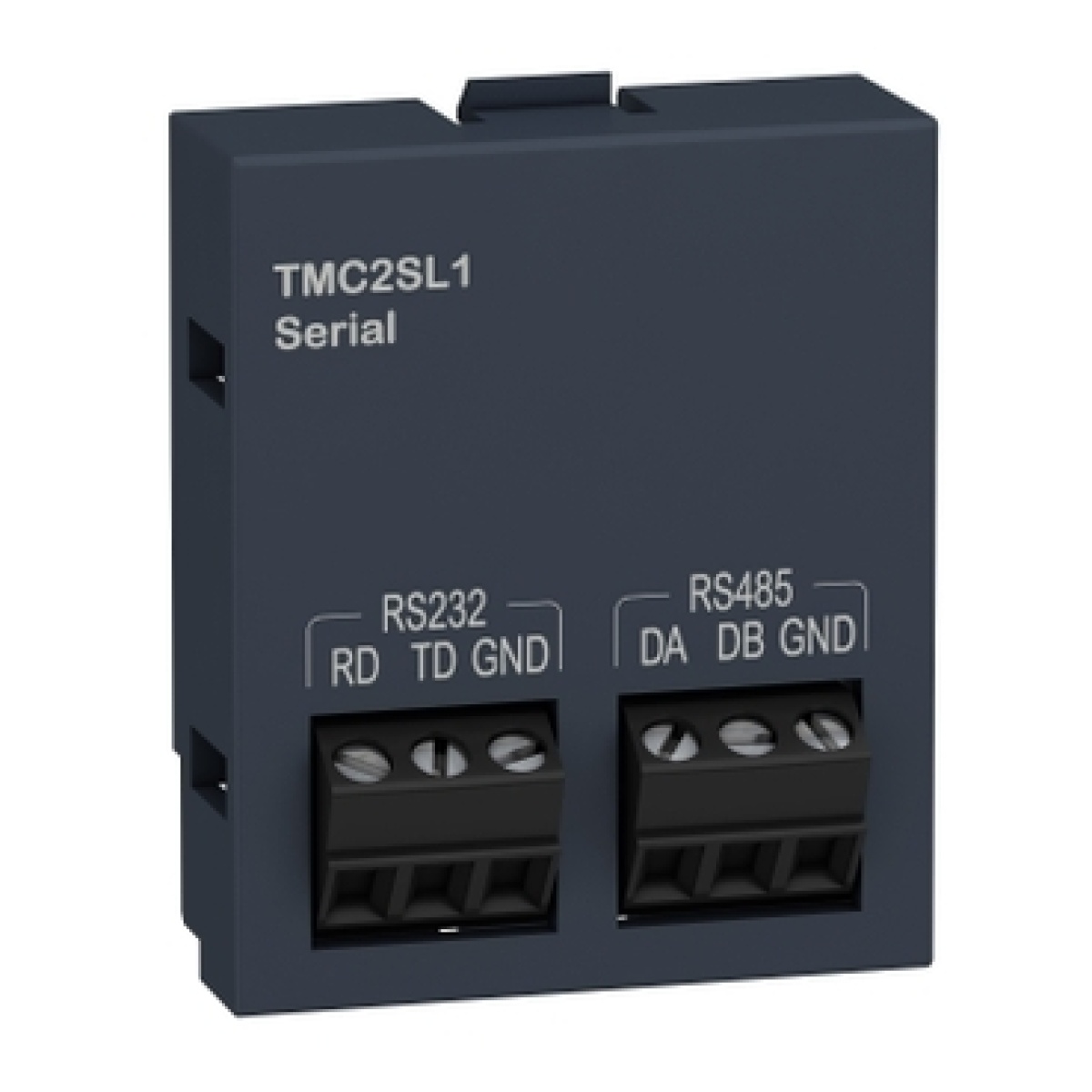

Este produto faz parte da faixa Modicon M221, uma oferta de controladores lógicos programáveis para arquiteturas com fio. Este cartucho de linha serial é uma extensão de comunicação que suporta a taxa de transmissão de 1,2kbps a 115,2kbps para o comprimento do barramento de 15m para RS485 e 3M para Rs232. Este produto requer instalação mínima e oferece uma enorme versatilidade. Não há isolamento entre linhas e lógica interna. Possui protocolos de porta de comunicação de ligação serial não isolados, como Modbus Master/Slave e RTU/ASCII ou Somachine-Network. Suas dimensões são de 35 mm (largura) x 15 mm (profundidade) x 41 mm (altura).Ele pesa 0,015 kg.
Programmable Logic Controllers and Dialogue Terminals
Cartucho m221c 1 puertoa serie
Nortécnica Ref:
52TMC2SL1
EAN:
3606480649141
Description
Technical Information
Attributes
Largura
35
Altura
41
Profundidade
15
Power consumption
1.1
Suitable for safety functions
No
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
With optical interface
No
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Redundancy
No
Transmission rate
1.2
With potential separation
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
0
Number of HW-interfaces wireless
0
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level according to EN ISO 13849-1
None
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Type of data transmission
Serial
Mobile communication standard GPRS
No
Mobile communication standard 2G GSM
No
Mobile communication standard 3G UMTS
No
SIL according to IEC 61508
None
Number of HW-interfaces CAN
0
Supporting protocol for EtherCAT
No
Certified for UL hazardous location class I
No
Certified for UL hazardous location class II
No
Certified for UL hazardous location class III
No
Certified for UL hazardous location division 1
No
Certified for UL hazardous location division 2
No
Certified for UL hazardous location group A acetylene
No
Certified for UL hazardous location group B hydrogen
No
Certified for UL hazardous location group C ethylene
No
Certified for UL hazardous location group D propane
No
Certified for UL hazardous location group E metal dusts
No
Certified for UL hazardous location group F carbonaceous dusts
No
Certified for UL hazardous location group G non-conductive dusts
No
Brands
Schneider Electric Portugal
