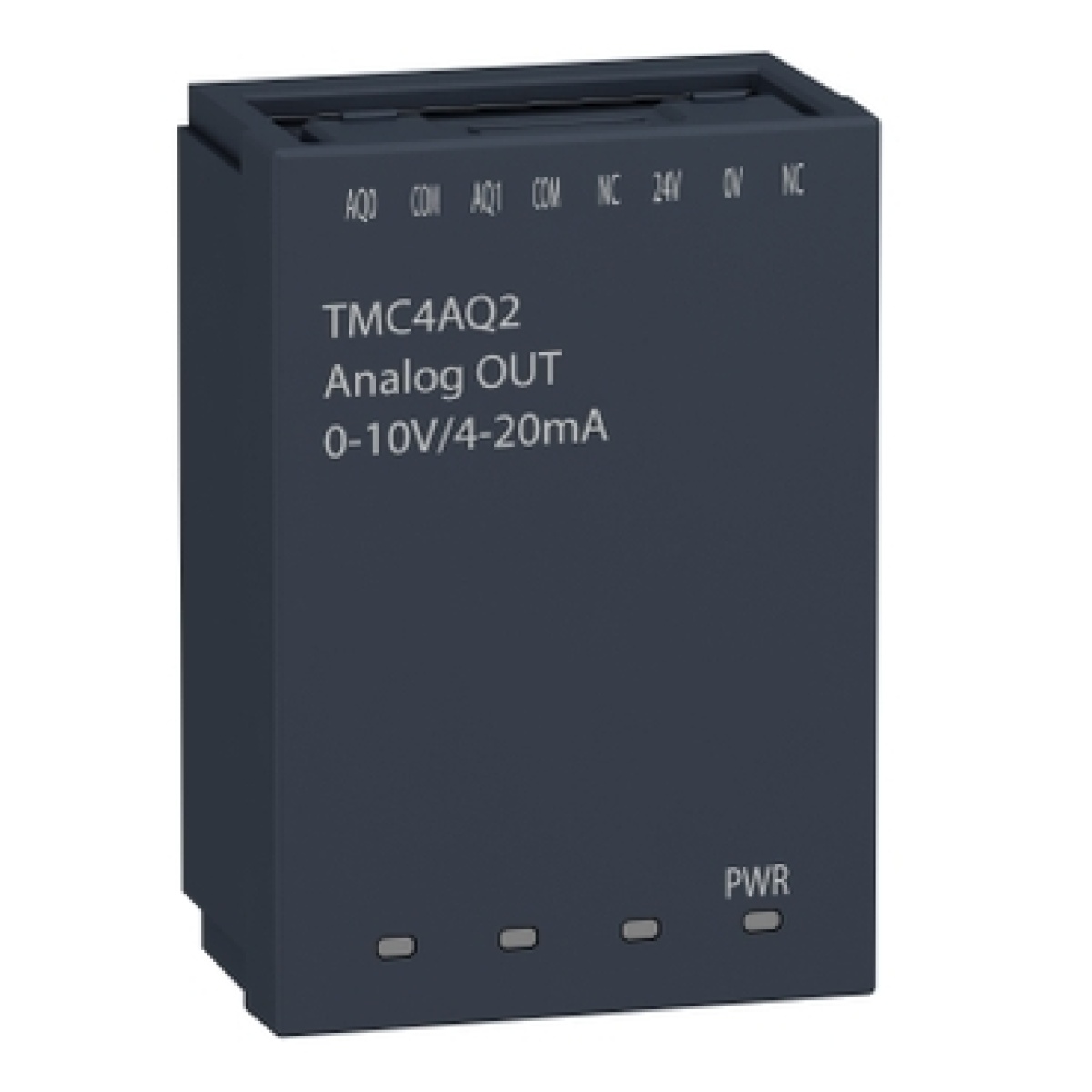

cartucho M241 - 2 saídas analógicas Este produto faz parte da linha Modicon M241, uma oferta de controladores lógicos para aplicações exigentes de desempenho. A distância máxima de cabo de pares blindados torcidos entre os dispositivos é <30m para entrada. Há um isolamento entre saída e lógica interna a 500V DC e nenhum isolamento entre saídas.É fornecido com terminal de mola para conexão elétrica. Suas dimensões são de 34 mm (largura) x 21 mm (profundidade) x 50 mm (altura).Ele pesa 0,055 kg. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards.
Programmable Logic Controllers and Dialogue Terminals

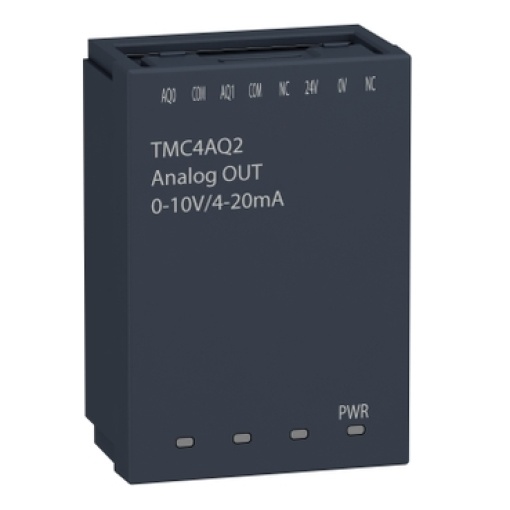

Cartucho M241 - 2 saídas analógicas
Nortécnica Ref:
EAN:
3606480649172
Description
Technical Information
Attributes
Largura
34
Altura
50
Profundidade
21
Power consumption
1.1
Suitable for safety functions
No
Number of analogue inputs
0
Number of analogue outputs
2
Input, current
No
Input, voltage
No
Input, resistor
No
Input, resistance thermometer
No
Input, thermocouple
No
Input signal, configurable
No
Output, current
Yes
Output, voltage
Yes
Output signal configurable
No
Resolution of the analogue inputs
12
Resolution of the analogue outputs
16
Type of electric connection
Screw connection
Explosion safety category for gas
None
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Performance level according to EN ISO 13849-1
None
Analogue inputs configurable
No
Analogue outputs configurable
No
SIL according to IEC 61508
None
Brands
Schneider Electric Portugal
