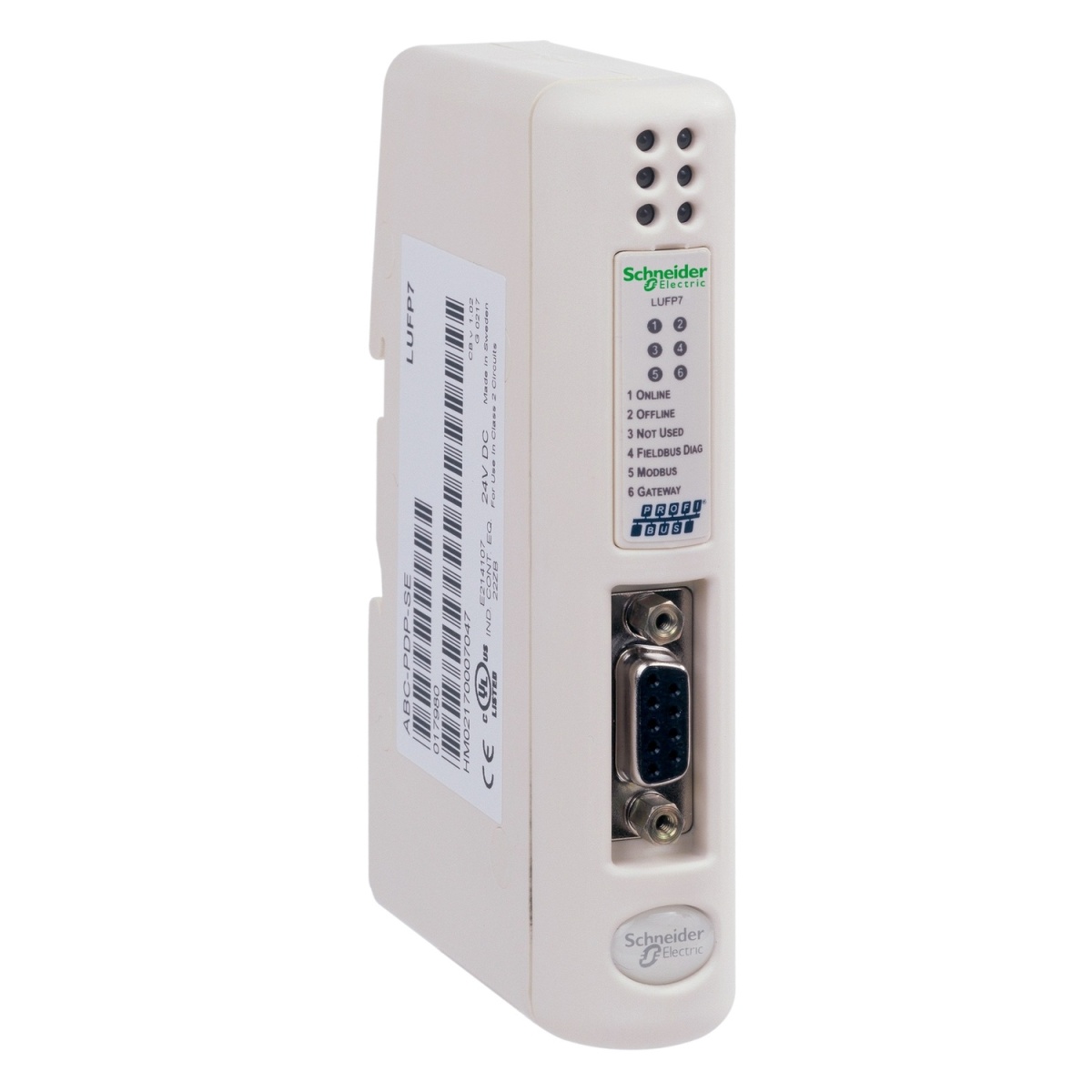

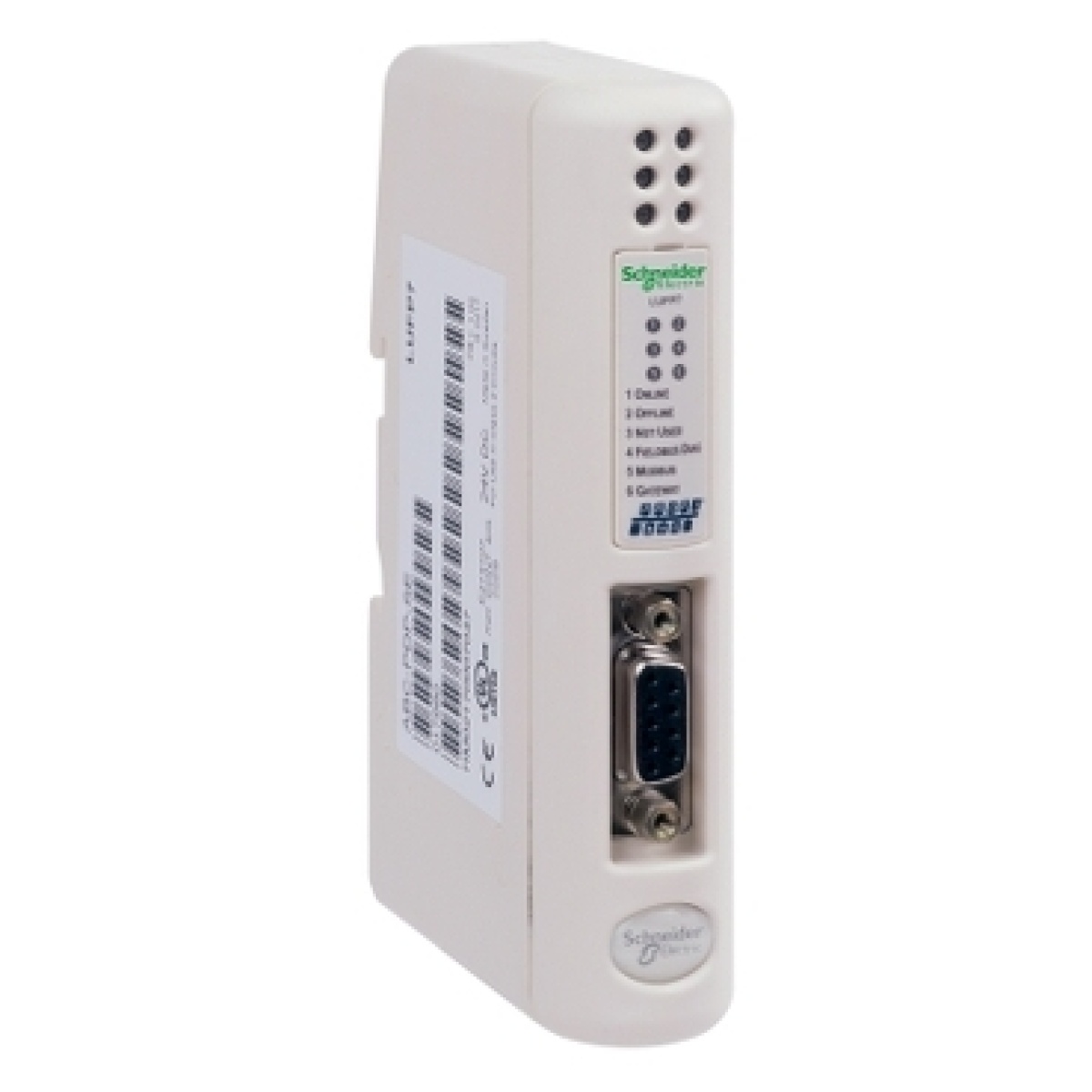

Gateway de comunicação Profibus DP 1 Fipio SUB-D9 - 1 RJ45 Modbus
Programmable Logic Controllers and Dialogue Terminals
Gateway de comunicação Profibus DP 1 Fipio SUB-D9 - 1 RJ45 Modbus
Nortécnica Ref:
52LUFP7
EAN:
3389110109368
Description
Technical Information
Attributes
Width
27
Height
120
Depth
75
Suitable for safety functions
No
Voltage type supply voltage
DC
Supporting protocol for LON
No
Número de interfaces industriais HW Ethernet industrial
-
Número de interfaces HW RS-232
-
Número de interfaces HW RS-422
-
Número de interfaces HW RS-485
-
Número de interfaces HW de série TTY
-
Número de interfaces HW USB
-
Número de interfaces HW paralelas
-
Número de interfaces HW outras
-
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
With potential separation
Yes
Suitable for rail mounting
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Fieldbus connection over separate bus coupler possible
No
System accessory
No
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Degree of protection IP
IP20
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Número de interfaces PROFINET
-
Número de interfaces HW sem fio
-
Front built-in possible
Yes
Rack-assembly possible
No
Wall mountingdirect mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level according to EN ISO 138491
None
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
24
24
Mobile communication standard GPRS
No
Mobile communication standard 2G GSM
No
Mobile communication standard 3G UMTS
No
Radio standard eGPRS
No
Radio standard LTE
No
SIL according to IEC 61508
None
Number of HW-interfaces CAN
-
Supporting protocol for EtherCAT
No
Certified for UL hazardous location class I
-
Certified for UL hazardous location class II
-
Certified for UL hazardous location class III
-
Certified for UL hazardous location division 1
-
Certified for UL hazardous location division 2
-
Certified for UL hazardous location group A acetylene
-
Certified for UL hazardous location group B hydrogen
-
Certified for UL hazardous location group C ethylene
-
Certified for UL hazardous location group D propane
-
Certified for UL hazardous location group E metal dusts
-
Certified for UL hazardous location group F carbonaceous dusts
-
Certified for UL hazardous location group G non-conductive dusts
-
Brands
SCHNEIDER
