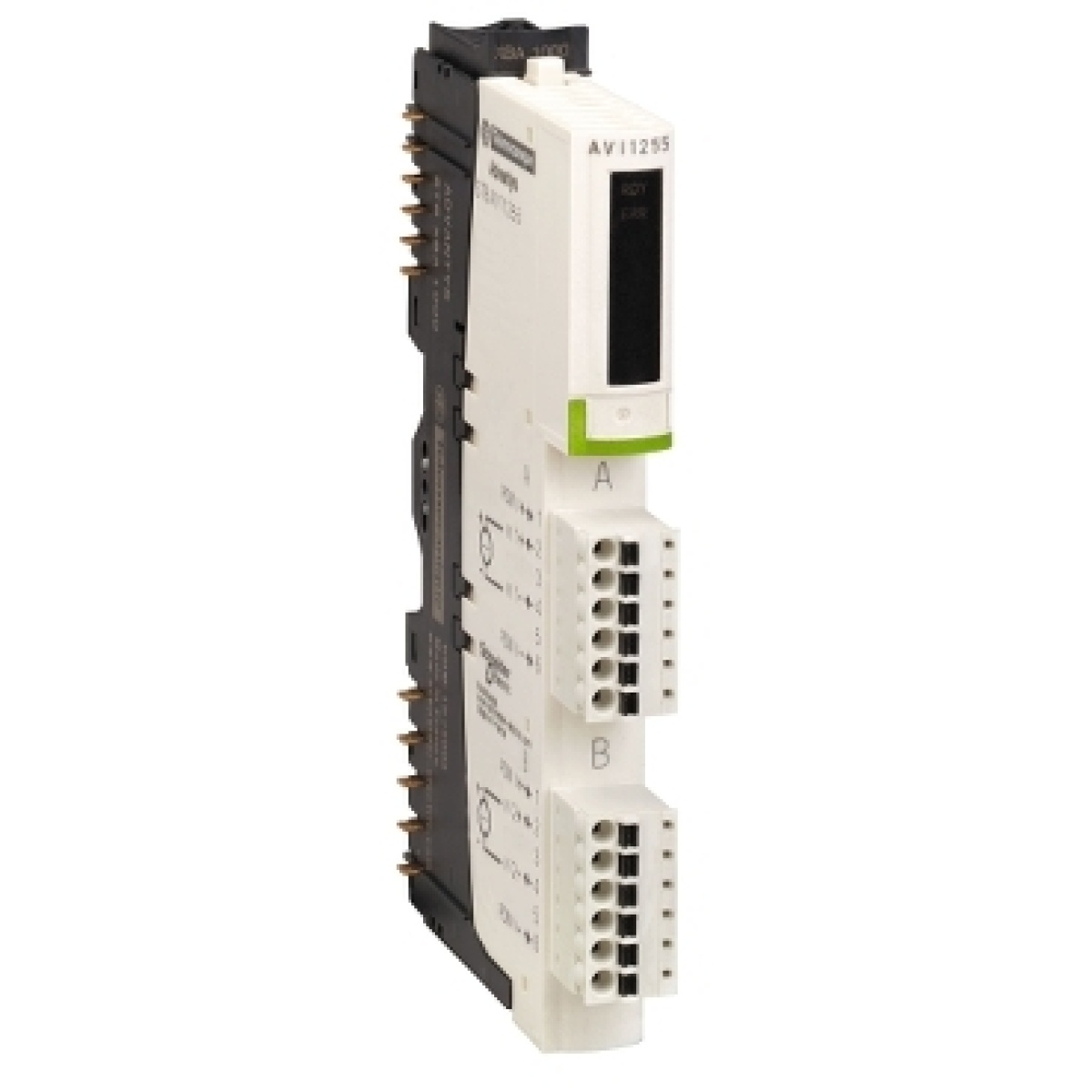

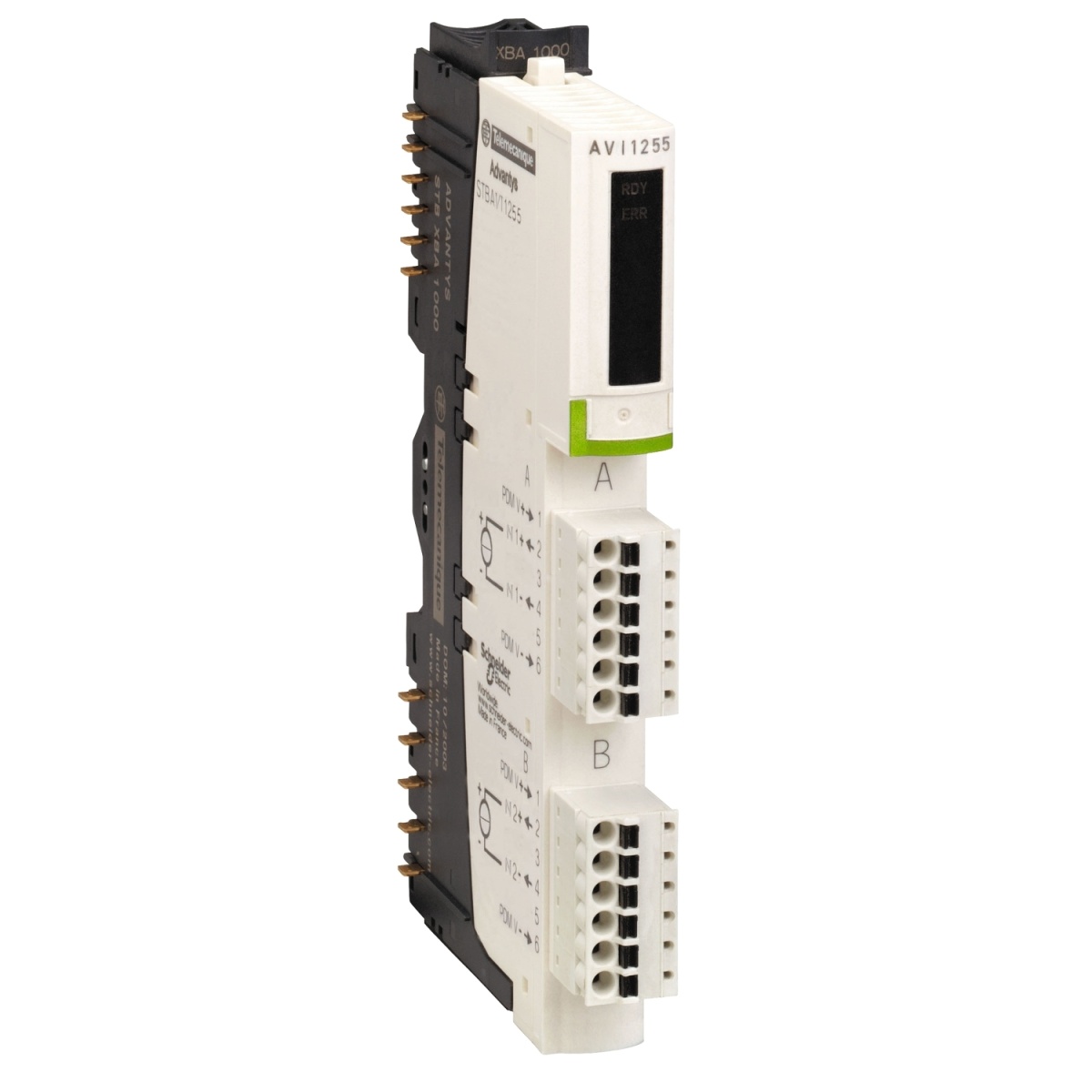

Kit de entrada analógica básico STB - 0..10 V - 2 E - 10 bits
Programmable Logic Controllers and Dialogue Terminals
Kit de entrada analógica básico STB - 0..10 V - 2 E - 10 bits
Nortécnica Ref:
EAN:
3595863948912
Description
Technical Information
Attributes
Width
128.3
Height
18.4
Depth
70
Power consumption
-
Suitable for safety functions
No
Número de entradas analógicas
2
Número de saídas analógicas
0
Voltage type supply voltage
AC/DC
Supporting protocol for LON
No
Número de interfaces industriais HW Ethernet industrial
0
Número de interfaces HW RS-232
0
Número de interfaces HW RS-422
0
Número de interfaces HW RS-485
0
Número de interfaces HW de série TTY
0
Número de interfaces HW USB
0
Número de interfaces HW paralelas
0
Número de interfaces HW outras
0
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Input, current
Yes
Input, voltage
No
Input, resistor
No
Input, resistance thermometer
No
Input, thermocouple
No
Input signal, configurable
Yes
Output, current
No
Output, voltage
No
Output signal configurable
No
Resolution of the analogue inputs
10
Resolution of the analogue outputs
10
Type of electric connection
Screw connection
Suitable for rail mounting
Yes
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
Other
Fieldbus connection over separate bus coupler possible
Yes
System accessory
Yes
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Degree of protection IP
IP20
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Número de interfaces PROFINET
0
Número de interfaces HW sem fio
0
Front built-in possible
No
Rack-assembly possible
Yes
Wall mountingdirect mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level according to EN ISO 138491
None
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
0
10
Analogue inputs configurable
Yes
Analogue outputs configurable
No
Mobile communication standard GPRS
No
Mobile communication standard 2G GSM
No
Mobile communication standard 3G UMTS
No
SIL according to IEC 61508
None
Degree of protection NEMA
-
Supporting protocol for EtherCAT
No
Certified for UL hazardous location class I
No
Certified for UL hazardous location class II
No
Certified for UL hazardous location class III
No
Certified for UL hazardous location division 1
No
Certified for UL hazardous location division 2
No
Certified for UL hazardous location group A acetylene
No
Certified for UL hazardous location group B hydrogen
No
Certified for UL hazardous location group C ethylene
No
Certified for UL hazardous location group D propane
No
Certified for UL hazardous location group E metal dusts
No
Certified for UL hazardous location group F carbonaceous dusts
No
Certified for UL hazardous location group G non-conductive dusts
No
Brands
SCHNEIDER
