O 6500E é um detetor de fumo de feixe ótico linear endereçável do tipo refletor concebido para funcionar como um componente do sistema inteligente de alarme de incêndio FX. O detetor de feixe 6500E é compatível com a placa de interface de circuito FX-SLC. Atua principalmente sobre o princípio da obscuração da luz utilizando um feixe infravermelho. O detetor de fumo de feixe ótico é particularmente adequado para a proteção de edifícios com grandes espaços abertos, tais como armazéns, aeroportos, etc.
Alarm Systems, Emergency Calls and Signaling

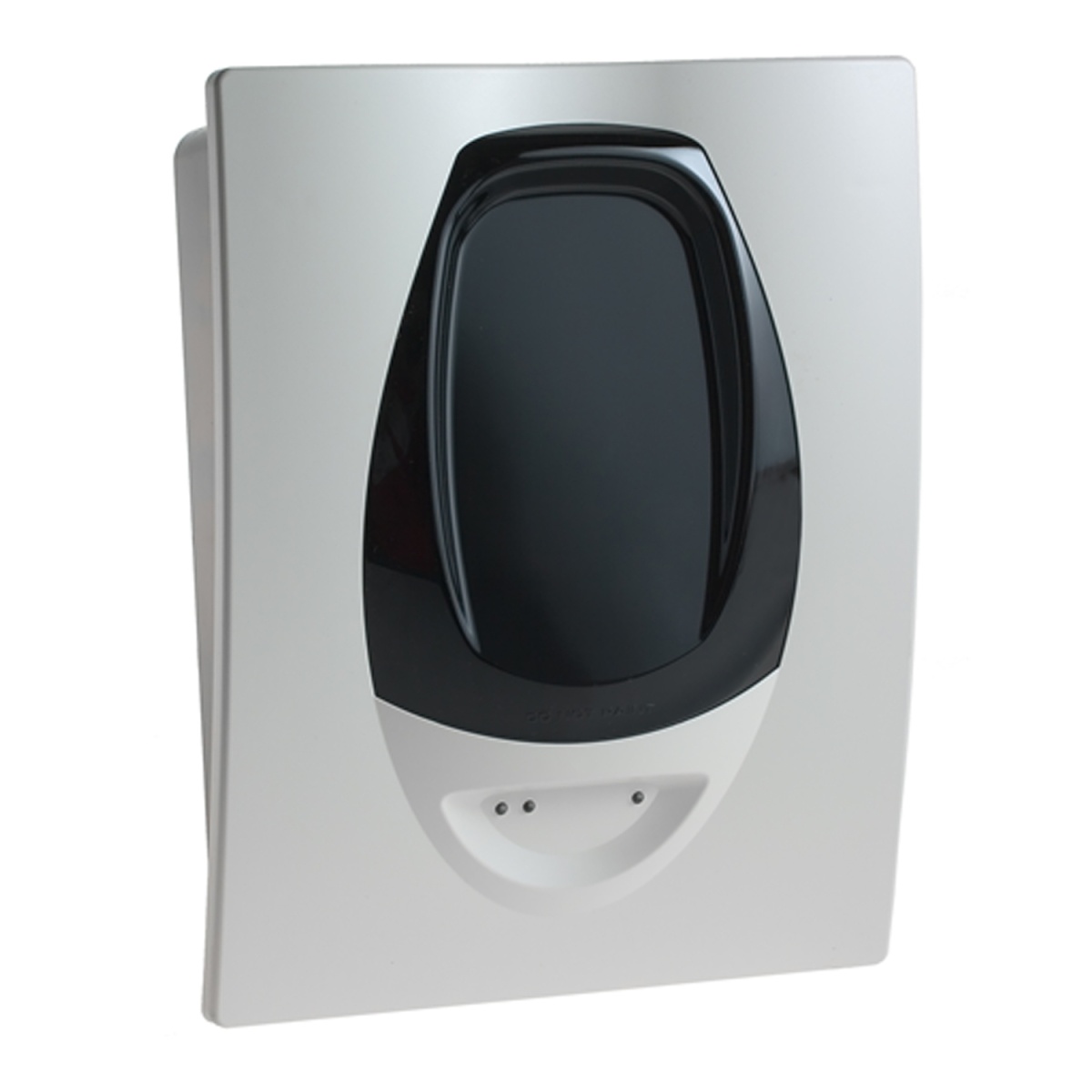

Detector de feixe endereçável, EB-6500E
Nortécnica Ref:
EAN:
6430075470486
Description
Technical Information
Attributes
Mounting method
Other
Colour
White
Largura
193
Self-adhesive
No
Cable entry
Other
Diameter
-
Length
-
Heightdepth
253
Voltage type supply voltage
DC
RAL-number similar
-
Operating principle
Combination
Explosion-tested version
-
Acoustic notification
No
Optical notification
No
Voltage type operating voltage
DC
Standalone
No
Degree of protection IP
IP54
Smoke switcher
Yes
Rated switch current
-
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
14
30
Networkable via radiografic standard
No
Networkable via cable
No
Operating voltage AC 50 Hz
-
-
Operating voltage AC 60 Hz
-
-
Operating voltage DC
14
30
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Number of contacts as change-over contact
-
Current supply primary
Mains power supply
With voltage indication
No
With backup battery
No
Battery included
Other
Max. number networkable
-
Type of test-pause button
Combination
Networkable via radio optional
No
With orientation lighting
No
With Q-label
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Separate socket needed
No
Response temperature
-
Suitable for duct mounting
No
VdS accepted
No
Brands
Schneider Electric Portugal
