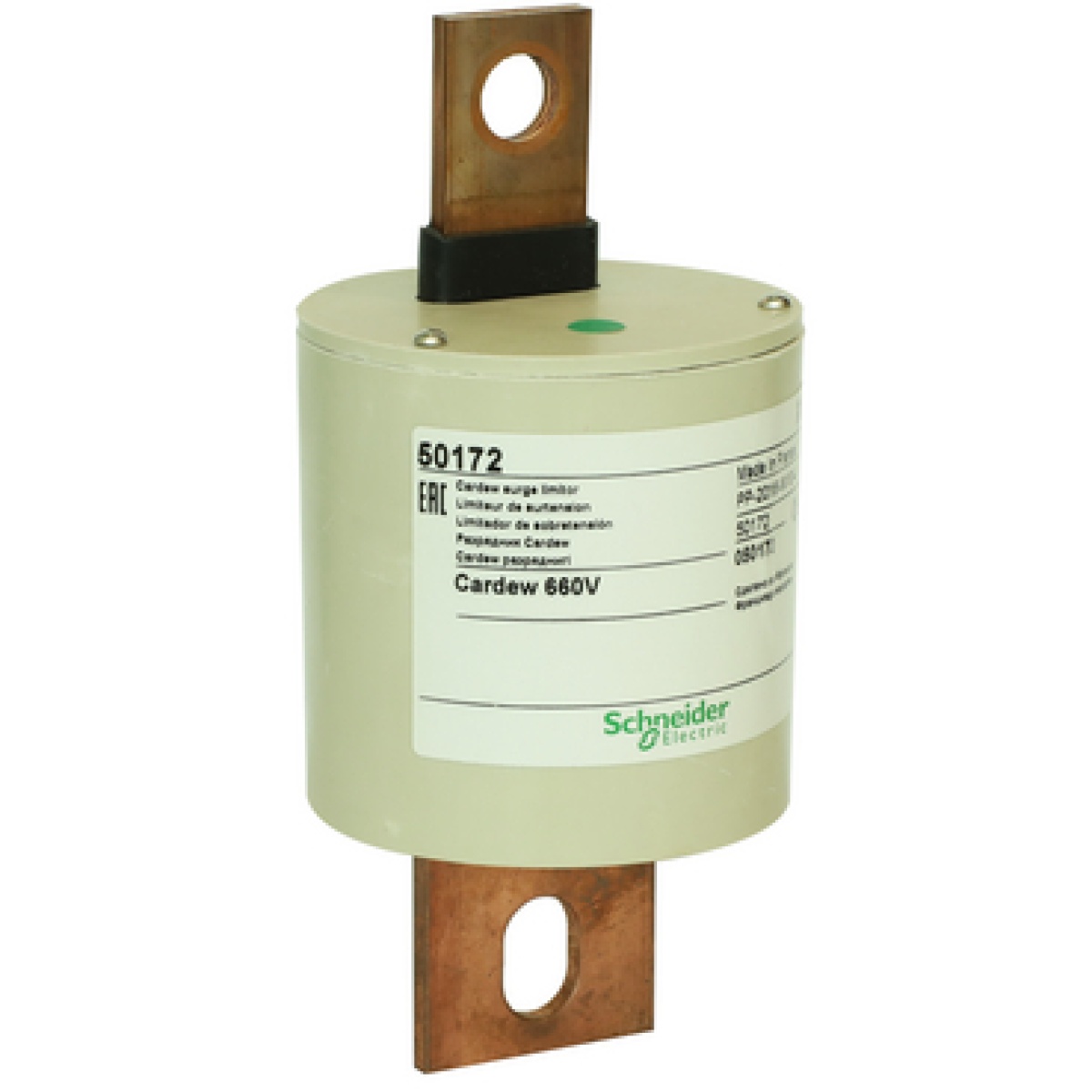

Vigilohm Cardew 660 VCA
Surge Arresters
Vigilohm Cardew 660 VCA
Nortécnica Ref:
EAN:
3303430501725
Description
Technical Information
Attributes
Mounting method
On basic element
With remote signalling contact
No
Number of conductors without earthing
1
Construction size
Other
Nível de proteção de tensão
1.6
Tensão máxima contínua AC
1000
Corrente de descarga nominal 820
40
Tensão nominal CA
660
Tensão nominal DC
0
Category type 2
No
Nível de proteção L-N
1
Signalling at the device
Optical
Máxima tensão DC contínua
0
Degree of protection IP
Other
Tensão fotovoltaica máx.
0
Nível de proteção de tensão N-PE
0.66
Integrated backup fuse
No
Secção do condutor rígido máx. monomulti filamento
150
Secção flexível do condutor máx. fio fino
150
System configuration DC
No
System configuration IT
Yes
System configuration TN
No
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
System configuration TN-C-S
No
Corrente de choque de descarga máxima 820
40
Resistência a curto-circuito Isccr
40
Proteção de sobreintensidade máx. Ligação em paralelo fusível
0
Proteção de sobreintensidade máx. Ligação em série fusível
0
Integrated short-circuit protection
Yes
Proteção contra curto-circuitos seletiva integrada - por fusível gG
0
Leakage-current free
No
Brands
SCHNEIDER
