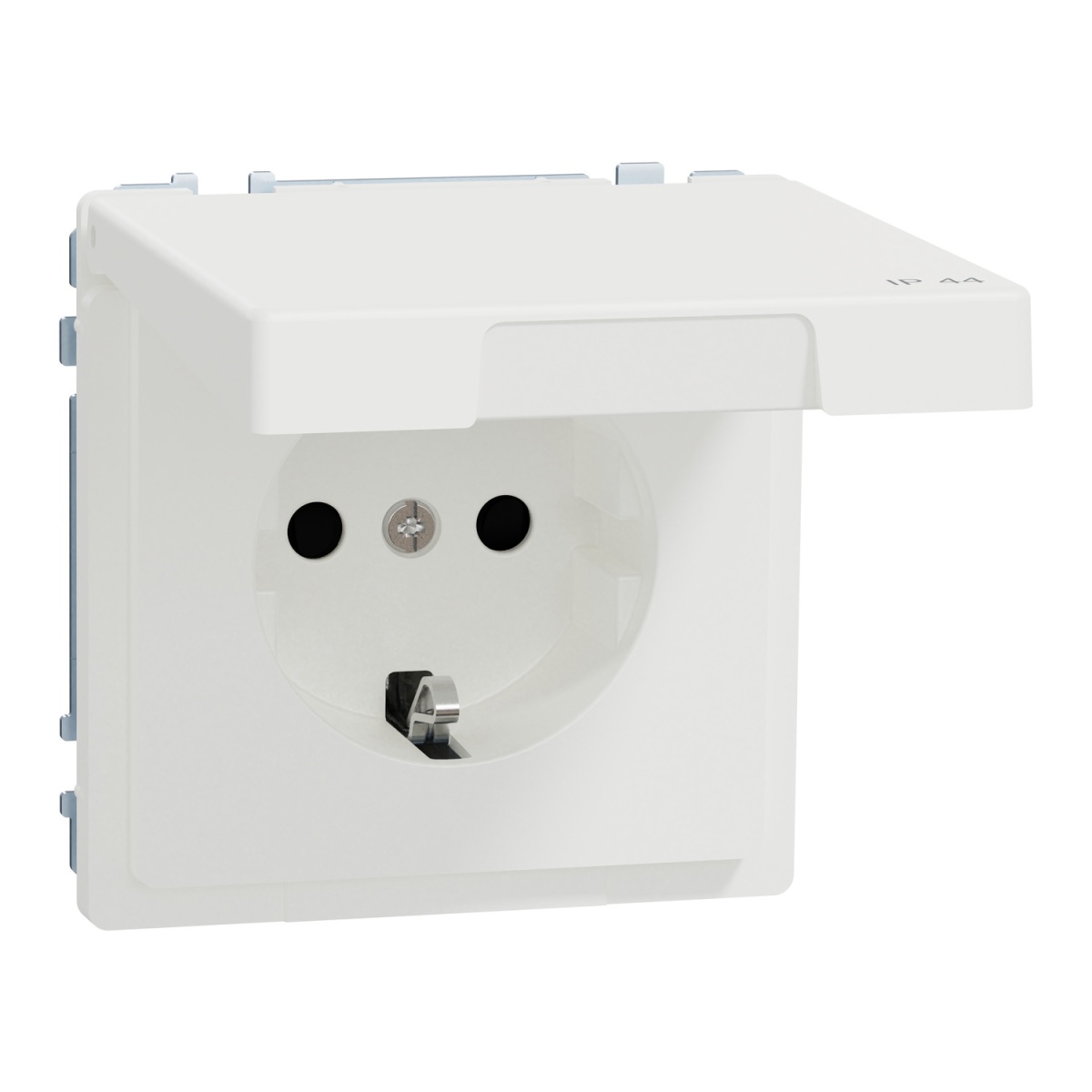

D-Life - Tomada 2PT IP44 - Branco Mate
Sockets
D-Life - Tomada 2PT IP44 - Branco Mate
Nortécnica Ref:
EAN:
3606482163508
Description
Technical Information
Attributes
Nominal current
16
Nominal voltage
250
Mounting method
Flush-mounted
Assembly arrangement
Basic element with central cover plate
Colour
White
Model
Socket outlet with protective contact CEE 7/3 (type F)
Halogen free
Yes
EF000074
1
Lockable
No
With hinged lid
Yes
Connection type
Screwed terminal
Surface protection
Untreated
With signal lamp
No
Number of socket outlets
1
Number of phases
1
With enhanced contact protection
No
Frequency
50
60
With onoff switch
No
Number of ports USB-A
-
Label spaceinformation surface
No
Eject-mechanism
No
Material quality
Thermoplastic
Rotated central insert
No
Overvoltage protection
No
Fault current protection
No
Special power supply
None
Insulated mounting
Yes
Material
Plastic
Rated fault current
-
Type of fastening
Mounting with claw and screw
Imprintindication
Degree of protection (IP)
Mounting direction
-
RAL-number similar
9003
Impact strength
IK03
Concurrently switching neutral conductor
No
Transparent
No
Surface finishing
Matt
With miniature fuse
No
With loop through function
No
Suitable for degree of protection IP
IP44
Device width
76
Device height
76
Device depth
45
Number of socket outlets switchable
-
With function lighting
No
With orientation lighting
No
Number of modules module system
-
IFTTT support available
No
Number of active contacts round
2
Number of active contacts flat
-
Min. depth of built-in installation box
40
With Wi-Fi signal repeater
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Metallic colour
No
Colour of switch operator
-
Device diameter
-
Max. current rating of USB power supply
-
With built-in bluetooth speaker
No
Number of ports USB-C
-
Number of active contacts square
-
Protective contact
Earthing clips
Number of loop throughs
-
Socket outlets phase-separated
No
Anti-bacterial treatment
No
For heavy conditions according to VDE
No
Inflammability class of insulation material according to UL 94
-
Compliant with UK Building Regulations Part M
No
Brands
SCHNEIDER
