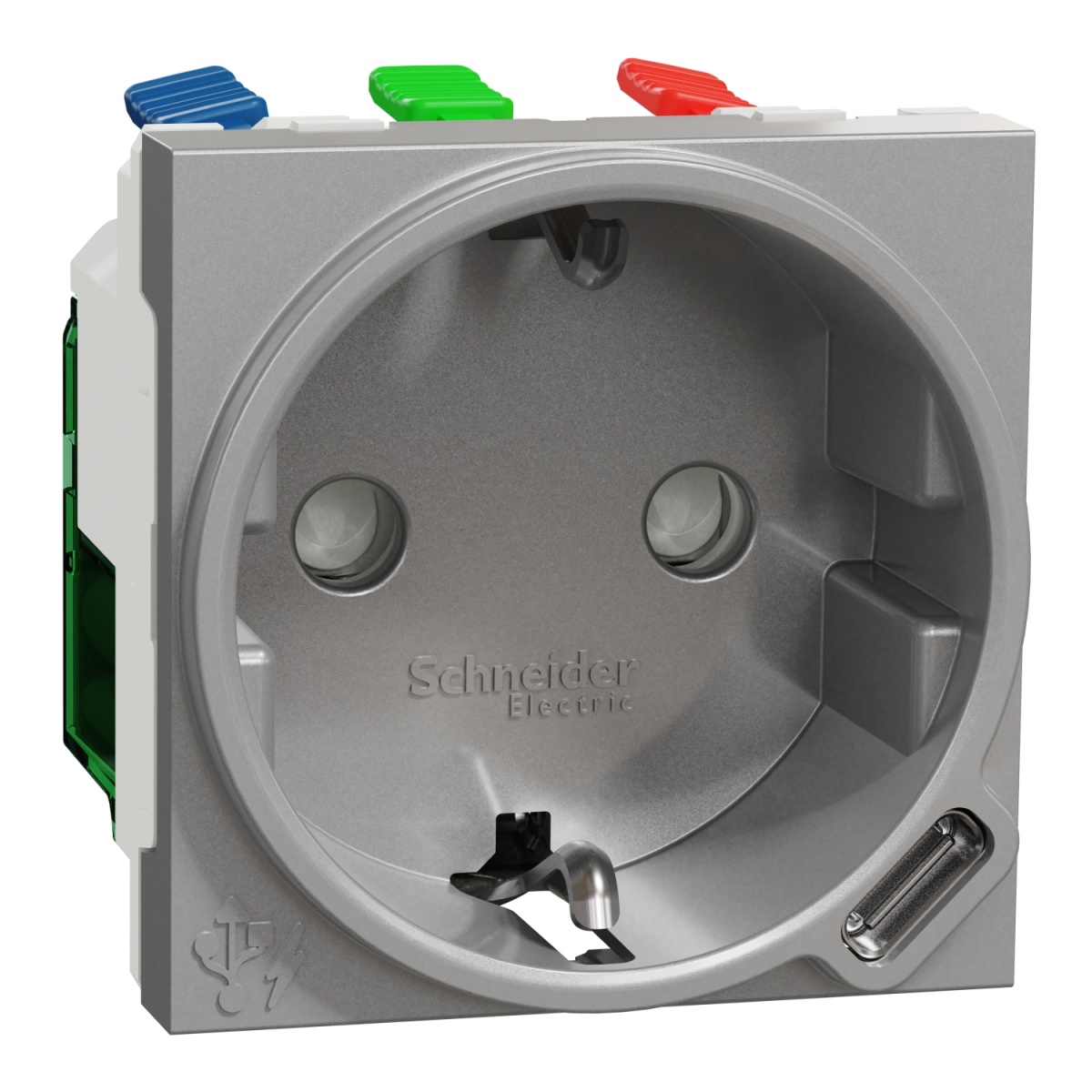

A tomada New Unica com carregador USB é uma fonte de alimentação moderna e sofisticada. Respeita a norma Schuko e tem uma configuração de pólos 2P+T com obturadores para maior proteção. Inclui um carregador USB-C com uma potência de saída de 10,5 W. Tem um design embutido, que evita a acumulação de pó. O aparelho tem 2 módulos e a sua tensão de funcionamento é de 230VAC a 50/60Hz. A cor do dispositivo é de alumínio, e Tem um acabamento de superfície brilhante. Possui as certificações CE e NF. Para a instalação, os botões de desbloqueio do terminal sem parafusos permitem uma melhor ergonomia, o que poupa tempo, e têm cores diferentes para uma fácil identificação. As dimensões do produto são (L) 45mm x (A) 45mm x (P) 43.9mm. Este tem grau de proteção IP20. O dispositivo funciona a temperaturas entre -5°C e 50°C. O dispositivo está em conformidade com a norma IEC 60884-1. A nova Unica é uma gama modular que oferece uma ampla variedade de produtos e funções com uma estética elegante e atemporal que se integra bem com outras instalações. Ele foi projetado com recursos inteligentes para ser flexível, fácil de entender e rápido de instalar, fornecendo soluções convenientes para as necessidades do cliente.
Sockets
Nova Unica - Tomada 2PT e USB C - Alumínio
Nortécnica Ref:
EAN:
3606481054289
Description
Technical Information
Attributes
Corrente nominal
16
Tensão nominal
230
Mounting method
Flush-mounted
Assembly arrangement
Basic element with complete housing
Colour
Aluminium
Model
Socket outlet with protective contact CEE 7/3 (type F)
Halogen free
Yes
EF000074
1
Lockable
No
With hinged lid
No
Connection type
Push-in clamp
Surface protection
Untreated
With signal lamp
No
Number of socket outlets
1
Number of phases
1
With enhanced contact protection
Yes
Frequency
50
60
With onoff switch
No
Number of ports USB-A
-
Label spaceinformation surface
No
Eject-mechanism
No
Material quality
Thermoplastic
Rotated central insert
No
Overvoltage protection
No
Fault current protection
No
Special power supply
None
Insulated mounting
No
Material
Plastic
Rated fault current
-
Type of fastening
Snap mounting (engagement)
Imprintindication
None
Mounting direction
-
Número RAL semelhante
-
Impact strength
IK04
Concurrently switching neutral conductor
No
Transparent
No
Surface finishing
Glossy
With miniature fuse
No
With loop through function
No
Suitable for degree of protection IP
IP20
Device width
45
Device height
45
Device depth
37
Number of socket outlets switchable
-
With function lighting
No
With orientation lighting
No
Number of modules module system
2
IFTTT support available
No
Number of active contacts round
2
Number of active contacts flat
-
Min. depth of built-in installation box
40
With Wi-Fi signal repeater
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Metallic colour
Yes
Colour of switch operator
-
Device diameter
-
Max. current rating of USB power supply
2.1
With built-in bluetooth speaker
No
Number of ports USB-C
1
Number of active contacts square
-
Protective contact
Earthing clips
Number of loop throughs
-
Socket outlets phase-separated
No
Anti-bacterial treatment
No
For heavy conditions according to VDE
No
Flammability class of insulation material according to UL 94
-
Compliant with UK Building Regulations Part M
No
Brands
Schneider Electric Portugal
